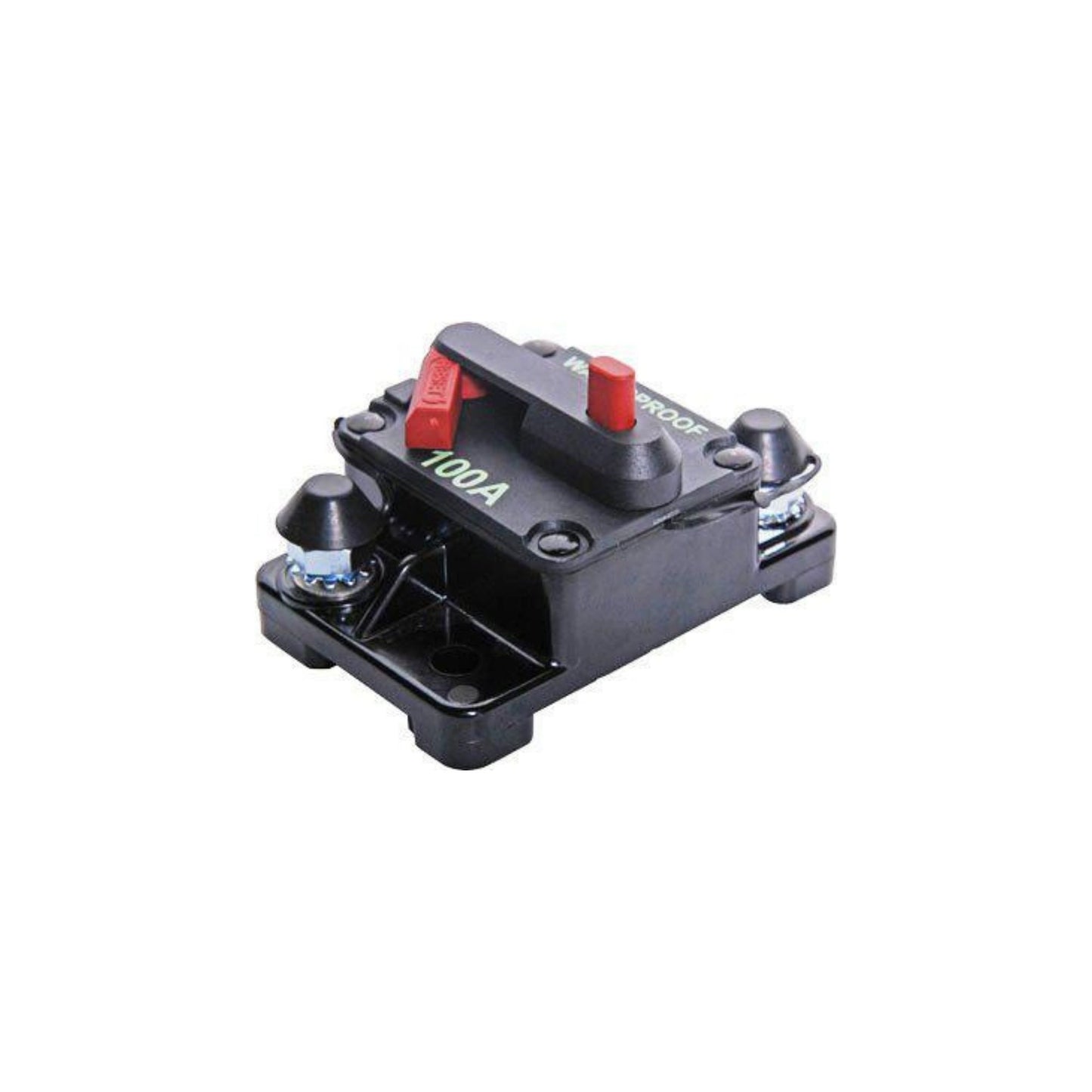

DC CIRCUIT BREAKER IP67 WEATHERPROOF SURFACE MOUNT MAX 42V DC Energy Connections

DC CIRCUIT BREAKER IP67 WEATHERPROOF SURFACE MOUNT MAX 42V DC

Regular price
$34.95
Sale price
$34.95
Regular price
Sold out
Unit price
per
Tax included. Shipping calculated at checkout.

50A PRODUCT CODE : S5885

100A PRODUCT CODE :S5890

150A PRODUCT CODE :S5893

200A PRODUCT CODE :S5894

High current weatherproof circuit breakers with the manual reset switch. M6 terminal bolts.

Specifications:
Max. voltage: 42V dc
Interrupt rating: 3000A @ 30V dc
Operating temperature: -32°C to 82°C
Material: UL94V-0
External dimensions: 70 x 50 x 35mm

 Electrical Safety:

Some electrical knowledge is assumed. If you are not familiar with DC high current circuits, you should not attempt to wire up any of these components. Employ a CEC certified off-grid solar installer to install these products for you. Energy Connections takes no responsibility for damage caused to equipment or persons as a result of improper installation of these, or any devices sold by us.
