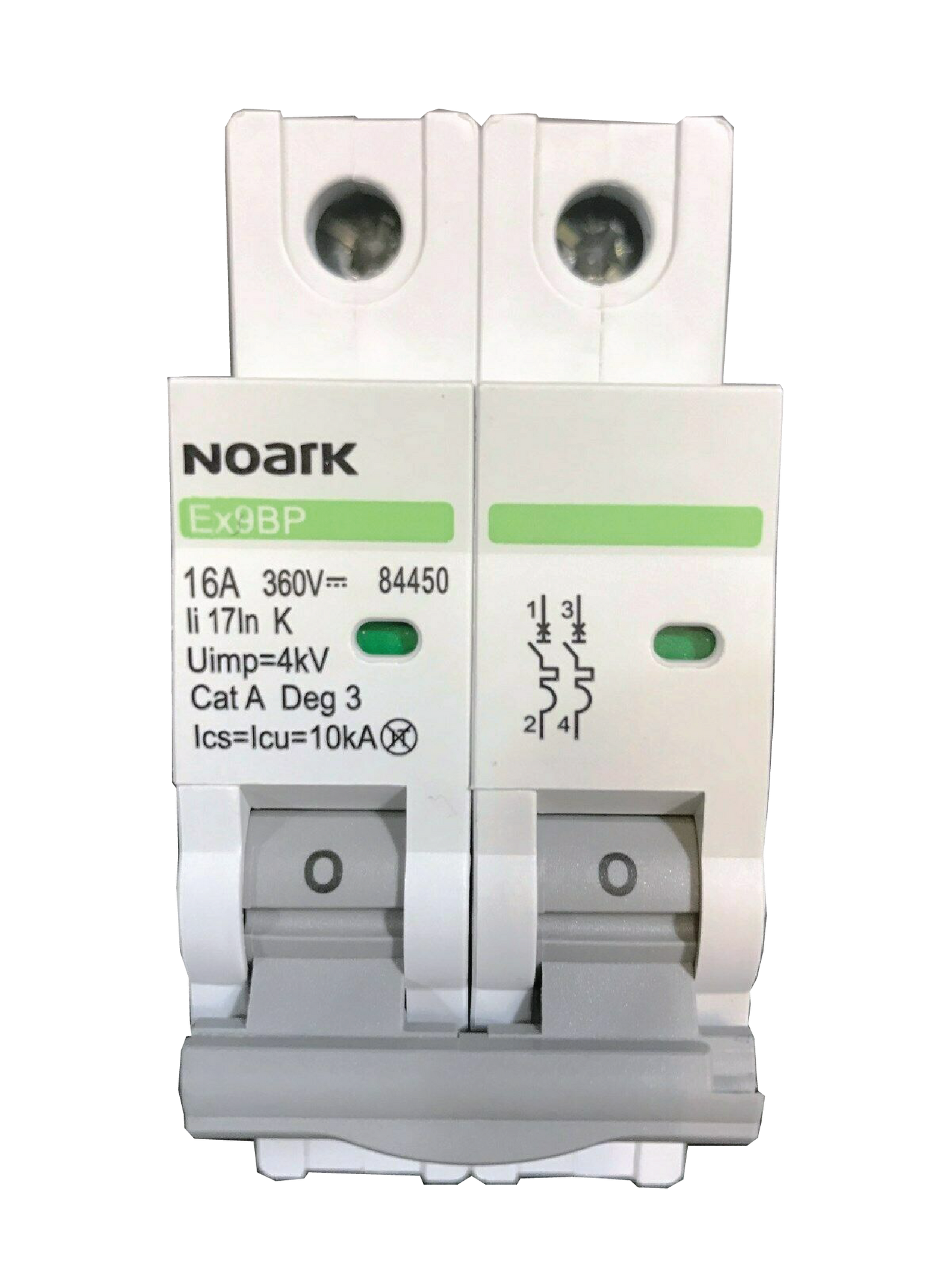

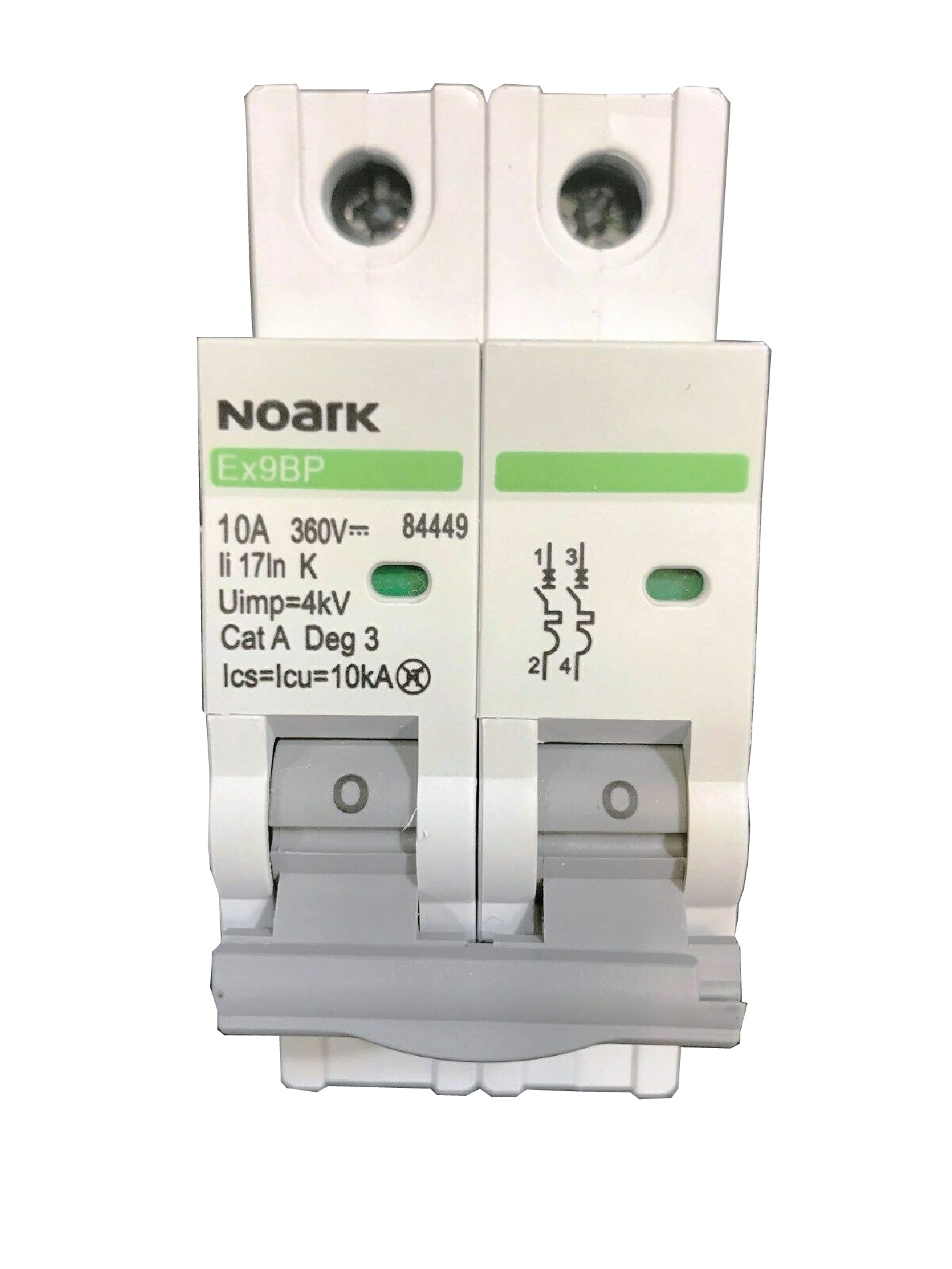

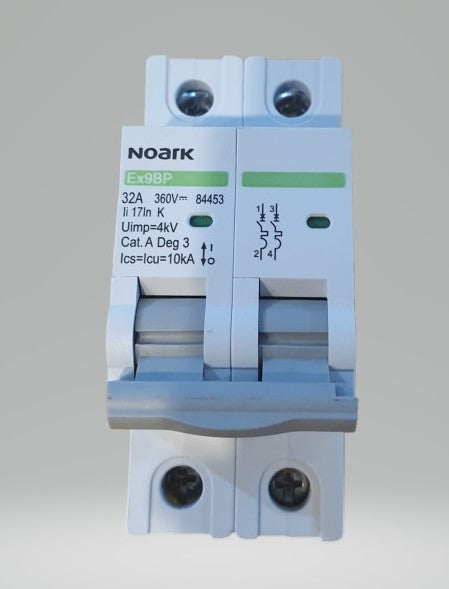

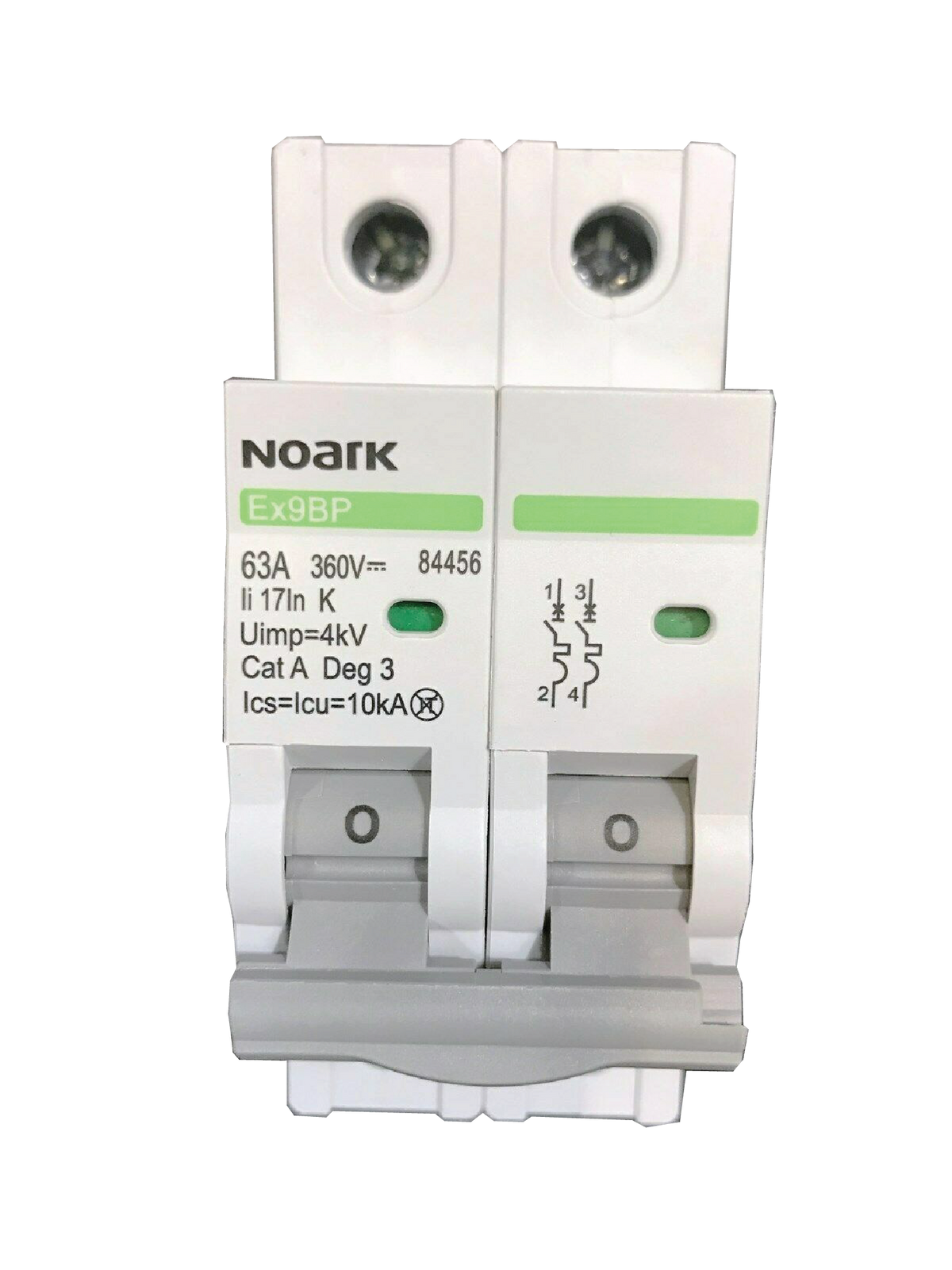

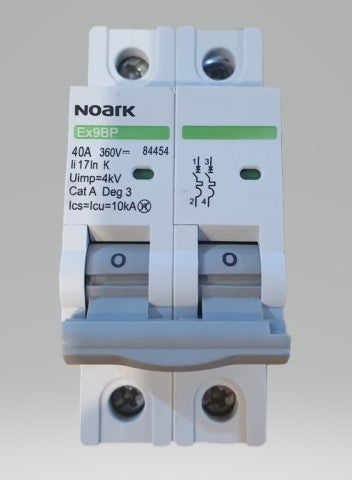

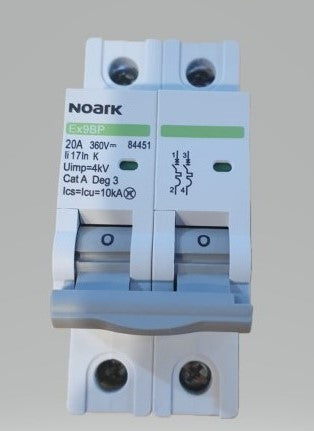

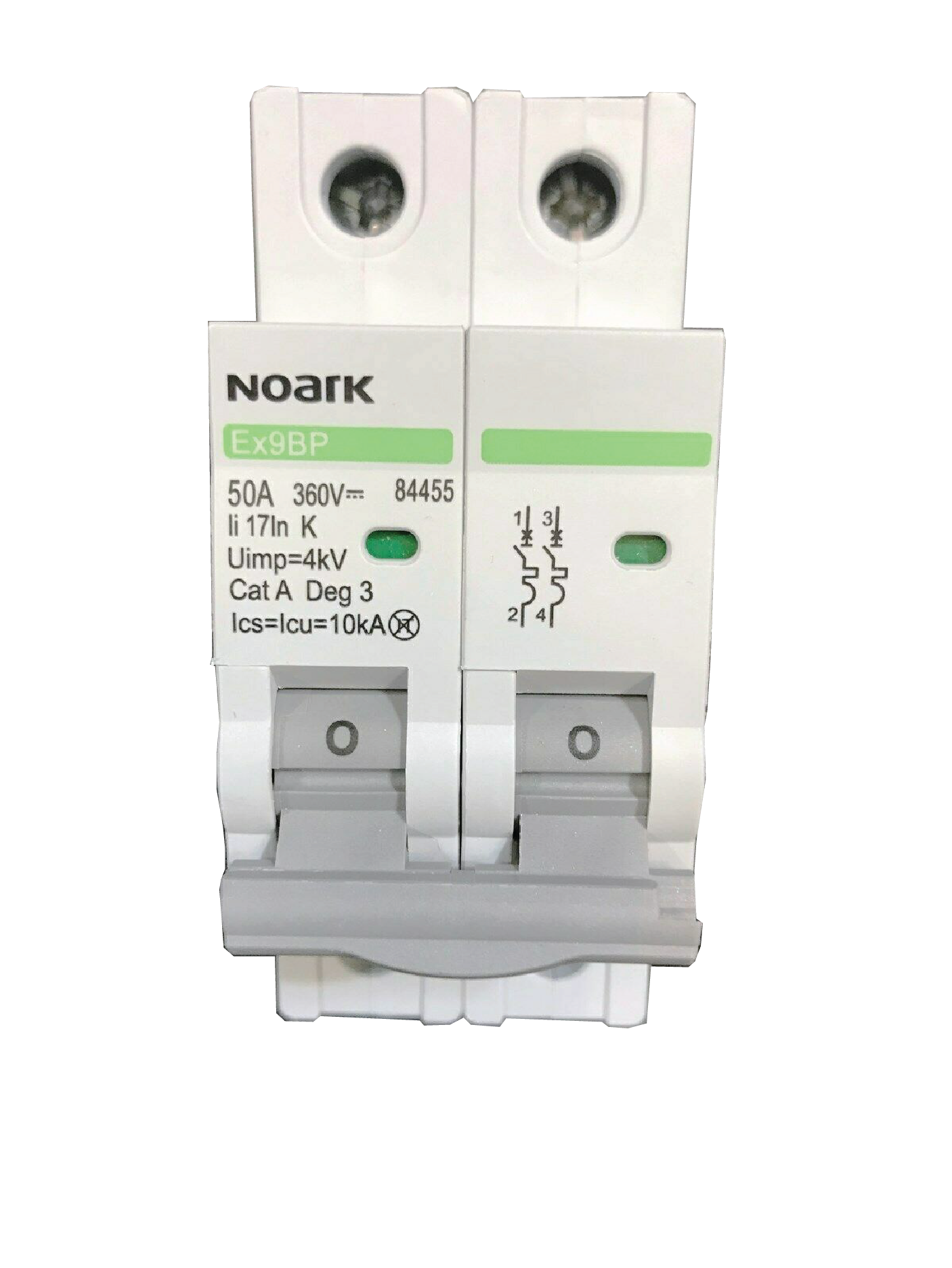

NOARK DUAL POLE DC CIRCUIT BREAKER 360V RANGE
DC miniature circuit breakers Ex9BP are designed for direct current, thanks to their polarity independence, especially for photovoltaic applications where some failure can change the polarity of the voltage.
• Non-polarised, suitable for photovoltaic applications
• Tested according to AS/NZS 60947-2
• Rated short-circuit breaking capacity Icu 10kA
• Rated operating voltage Ue 180 V DC per pole
• Tripping characteristics K
Installation:
Breakers must be installed in such a way as to break the + positive and - negative simultaneously. That is positive one side top and bottom through the breaker negative the other side top and bottom of the breaker.
Tripping Curve
K Type
Electrical Safety:
Some Electrical knowledge is assumed. If you are not familiar with DC high current circuits, you should not attempt to wire up any of these components. Employ a CEC certified off-grid solar installer to install these products for you. Energy Connections takes no responsibility for damage caused to equipment or persons as a result of improper installation with these, or any devices sold by us.
