PRODUCT CODE: FH00-3P
Description:

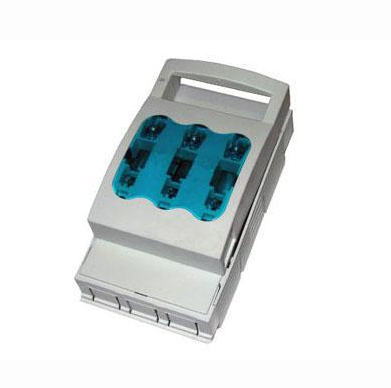

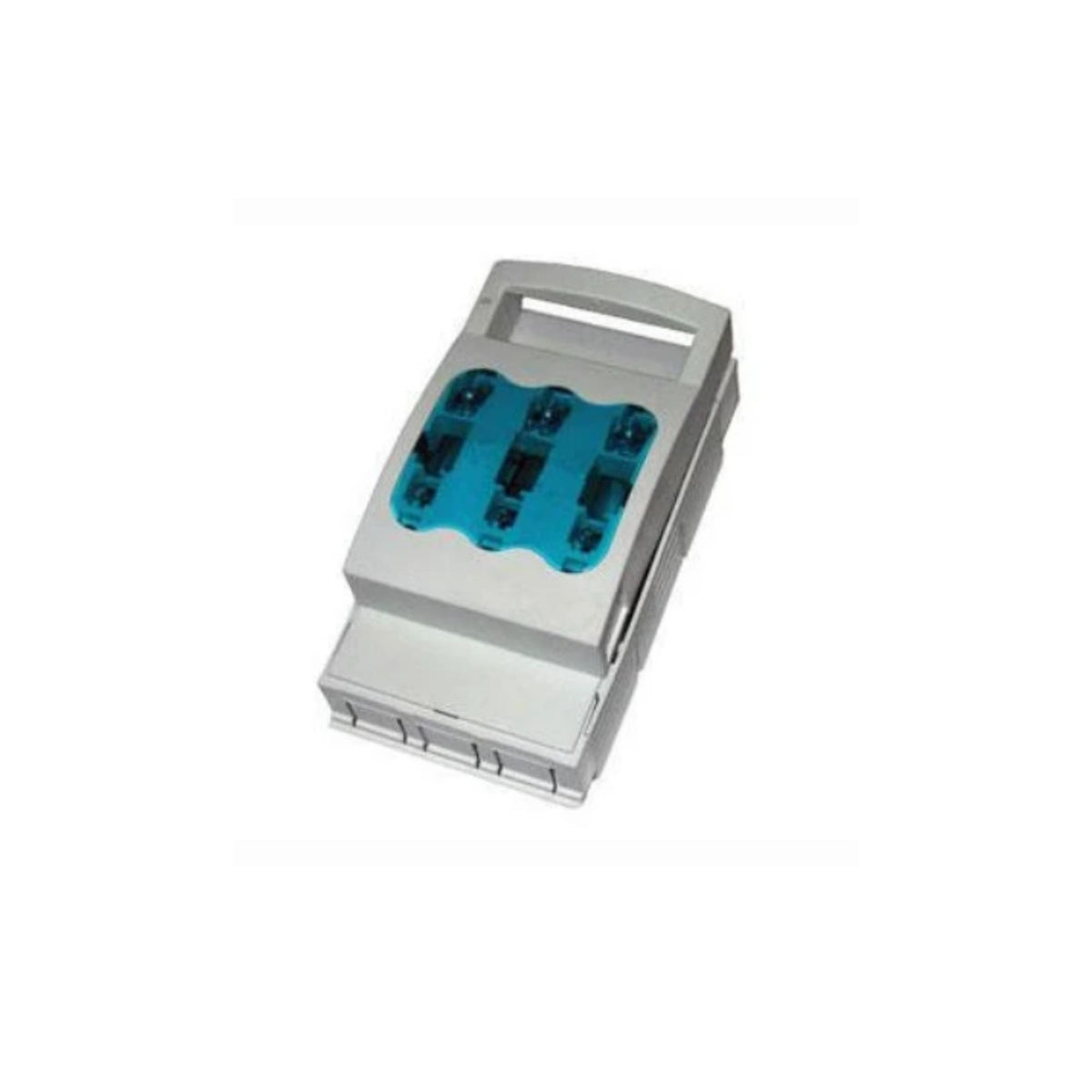

A high current 3 pole fuse link holder ideal for use in high current applications such as solar, battery and inverter installations.
The fuse holder supports up to 3 x fuse links of up to 160A each, sold separately.
Features a pull-down knife switch disconnection handle so the system can be shut down quickly if the need arises.
Suits NT00 size low voltage high rupture capacity (HRC) fuse links.
Specifications:
• Rated insulation voltage (AC): 690V
• Rated insulation voltage (DC): 250V
• Current (max): 160A (per circuit)
• Dimensions: 105 (W) x 200 (H) x 83 (D) mm
Electrical Safety:
Some electrical knowledge is assumed. If you are not familiar with DC high current circuits, you should not attempt to wire up any components. Employ a CEC certified Off-Grid solar installer to install these products for you. Energy Connections takes no responsibility for damage caused to equipment or persons as a result of improper installation with these, or any devices sold by us.
