This 50 Amp charging System has the core components required for every hybrid system and is easily expanded. With Wiring Diagram & Layout.
Only Requires ,Battery, solar panels, Assembly and you are ready to go. This kit is perfect for charging lithium batteries in your Caravan, Camper Trailer,4x4 or Motorhome. A great choice for batteries over 200A. The system provides 3 way charging.

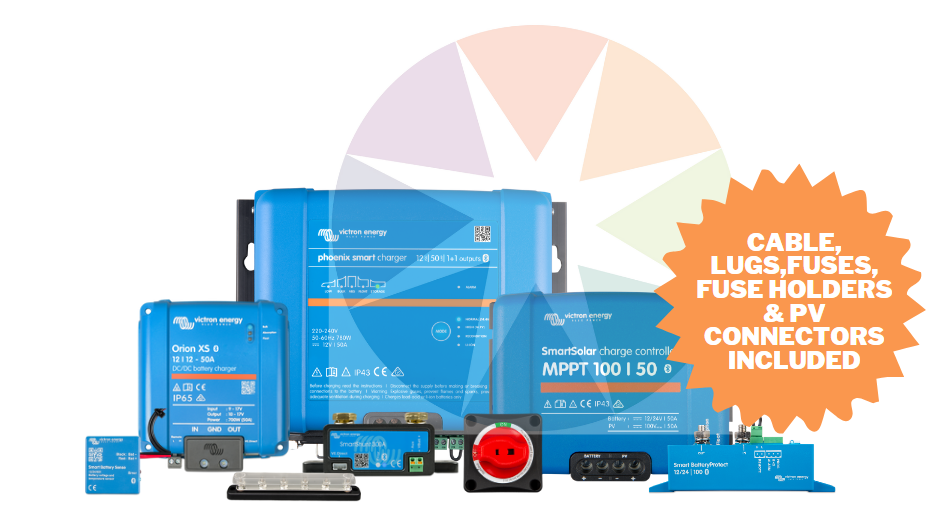

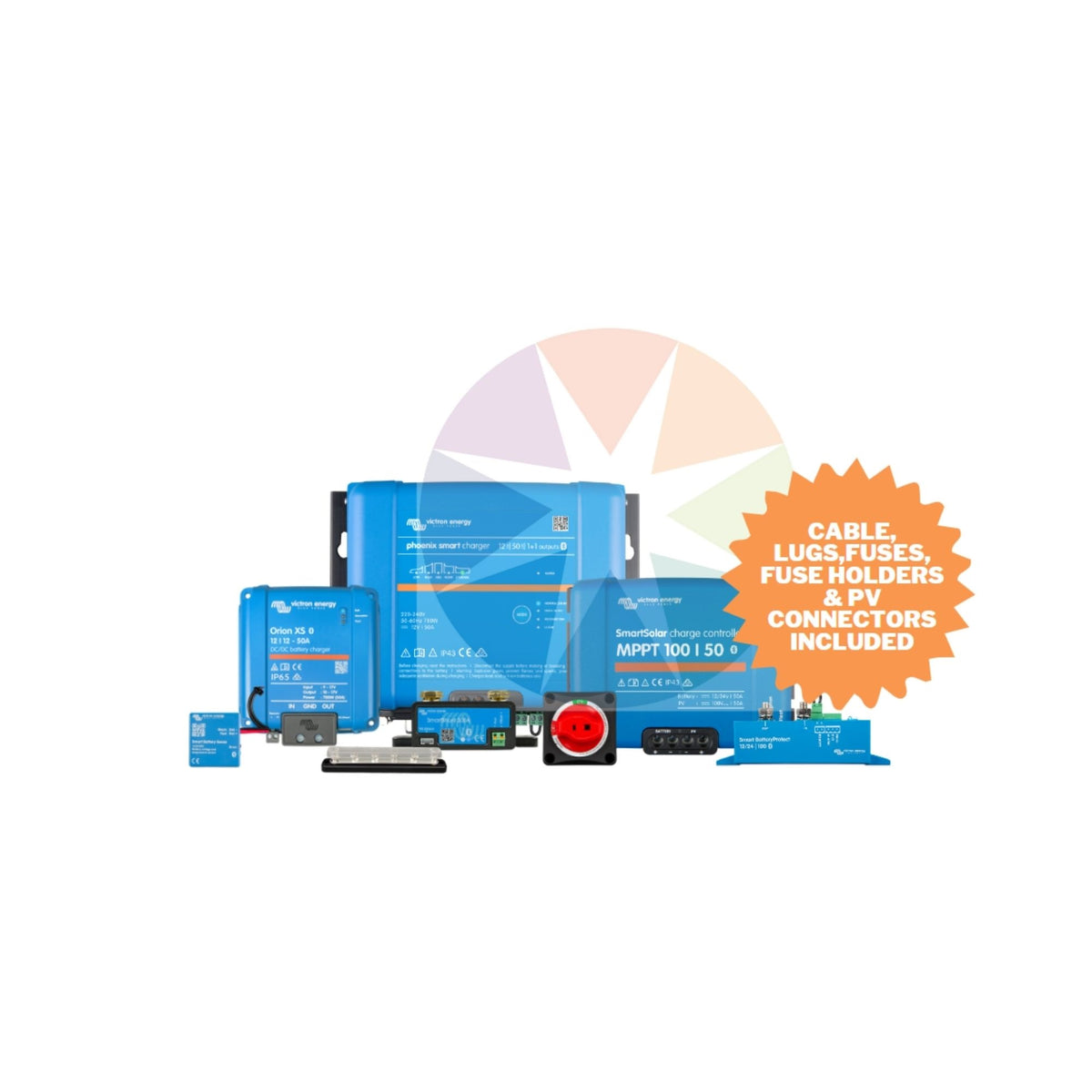

system includes the following:
- Victron Smart Solar 100/50 MPPT
This allows over 700W of Solar to be connected and provides efficient MPPT Charging with Lithium Battery support.
- Victron Orion XS Smart 12/12-50A DC-DC Charger
The DC-DC Smart Charger takes the charge from your alternator and converts it to accurately charge a second battery in your Canopy, Caravan or Camper Trailer .
- Victron 12V 50A Phoenix Smart Battery Charger
Pre-charging your system before a trip, or whilst parked at a powered site is handled by the Phoenix Smart IP43 50A Charger.
- Victron Smart Shunt 300A
Full battery monitoring is essential to ensure your energy system has the reserve charge capacity that you require.

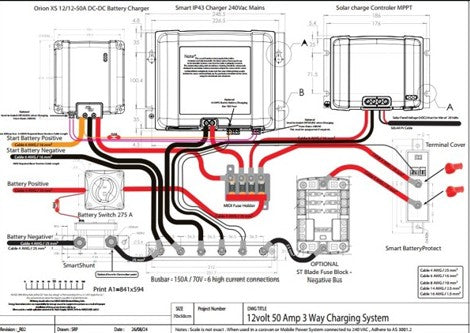

- Wiring Diagram & Layout
Printed in a size you can read in colour :A1 (841mm x 594mm)
- Victron Smart Battery Protect
The Victron BatteryProtect disconnects the battery from non essential loads before it is completely discharged (which would damage the battery)
- Victron Smart Sense
- Victron Battery Switch
Emergency Isolation switch is a must have for any system and is required under certain standards.
- Cable, Lugs, Fuses, fuse holders, victron busbar & PV Connectors to suit
5m PV Cable , 6m of battery cable , 6.5m cable for DC/DC Charger
