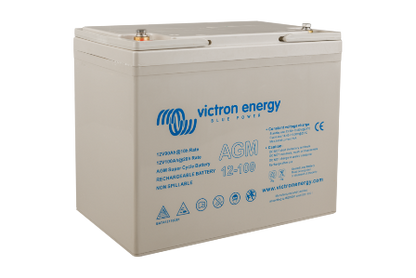

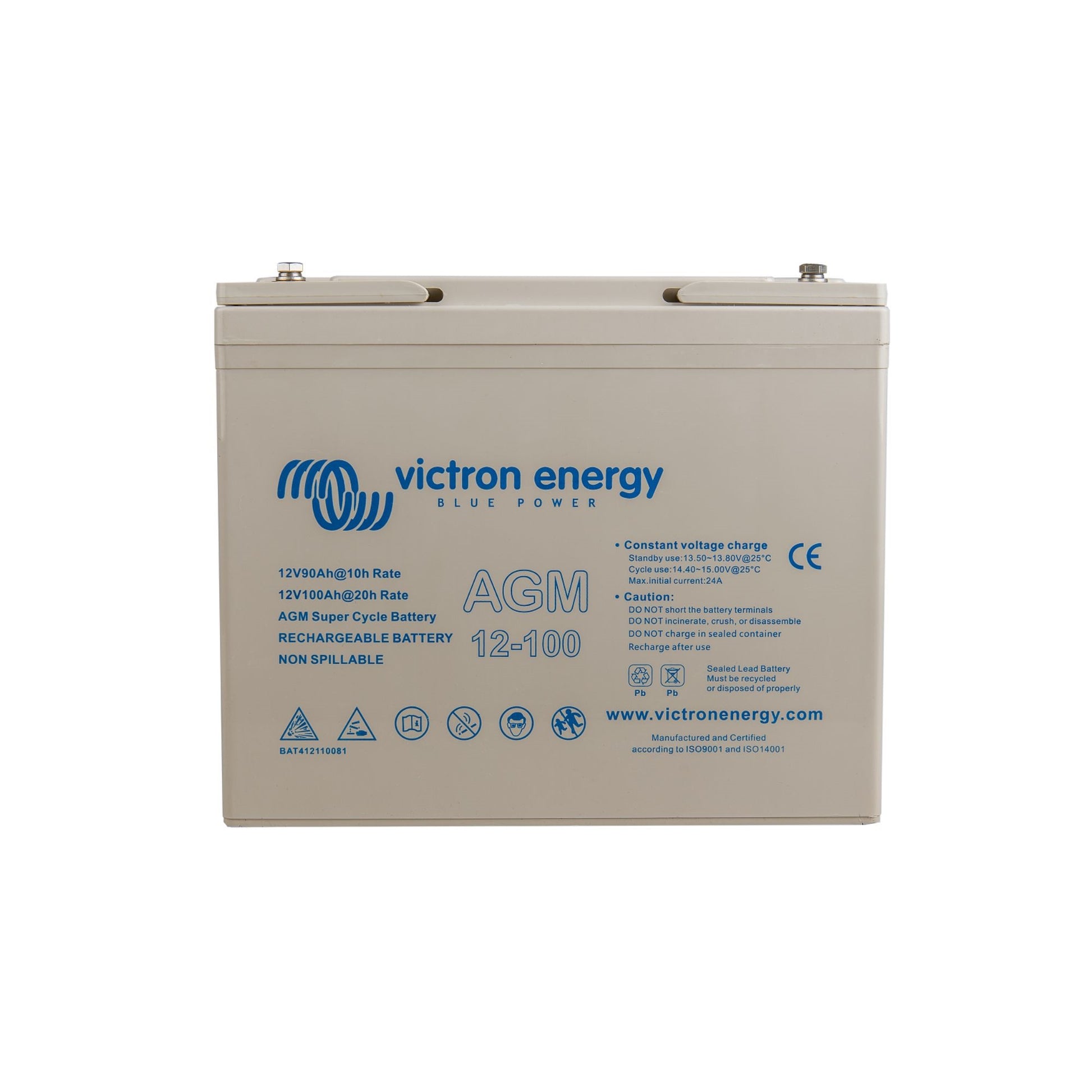

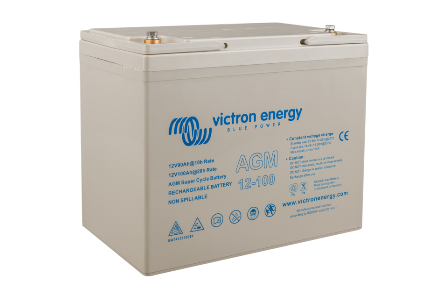

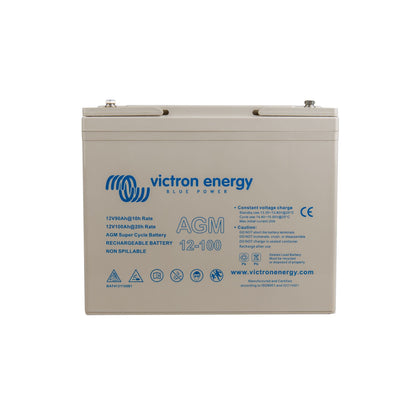

VICTRON AGM SUPER CYCLE BATTERY 12V/100AH (M6)

PRODUCT CODE : BAT412110081

Data Sheet Link Here

A Truly Innovative Battery

The AGM supercycle batteries are the result of recent battery electrochemistry developments. The paste of the positive plates are less sensitive to softening, even in case of repeated 100% discharge of the battery, and new additives to the electrolyte reduce sulphation in case of deep discharge.

Exceptional 100% Depth Of Discharge (DoD) Performance

Tests have shown that the supercycle battery does withstand at least three hundred 100% DoD cycles. The tests consist of a daily discharge to 10.8V with I = 0.2C²º, followed by approximately two hours rest in a discharged condition, and then recharge with I = 0.2C²º. The two hours rest period in a discharged condition will damage most batteries within 100 cycles, but not the super cycle battery. We recommend the super cycle battery for applications where an occasional discharge to 100% DoD, or frequent discharge to 60-80% DoD is expected.

Smaller And Lighter

An additional advantage of the new chemistry is a slightly smaller size and less weight compared to the standard AGM deep cycle batteries.

Low Internal Resistance

The internal resistance is also slightly lower compared to the standard AGM deep cycle batteries.

Enclosure:

Dimensions: 260mm x 168mm x 215mm

Weight: 25kg
