The Problem: The Service Life Of An Expensive Battery Bank Can Be Substantially Shortened Due To State Of Charge Unbalance
One battery with a slightly higher internal leakage current in a 24V or 48V bank of several series /parallel connected batteries will cause under-charge of that battery and over-charge of the series connected batteries. Moreover, when new cells or batteries are connected in series, they should all have the same initial state of charge. Small differences will be ironed out during absorption or equalize charging, but large differences will result in damage due to excessive gassing (caused by over-charging) of the batteries with the higher initial state of charge and sulphation (caused by under-charging) of the batteries with the lower initial state of charge.
The Solution: Battery Balancing

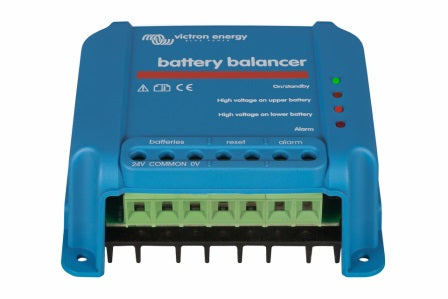

The Battery Balancer equalizes the state of charge of two series connected 12V batteries, or of several parallel strings of series connected batteries. When the charge voltage of a 42V battery system increases to more than 27.3 V, the battery will turn on and compare the voltage over the two series connected batteries. The battery balancer will a current of up to 0.7 A from the battery (or parallel connected batteries) with the highest voltage. The resulting charge current differential will ensure that all batteries will converge to the same state of charge. If needed, several balancers can be paralleled. A 48V battery bank can be balanced with three battery balancers.
LED Indicators
Green: on (battery voltage > 27.3V)
Orange: lower battery leg active (deviation > 0.1V)
Orange: upper battery leg active (deviation > 0.1V)
Red: Alarm (deviation > 0.2V) Remains on until the deviation has reduced to less than 0.14V, or until system voltage drops to less than 26.6V
Alarm Relay
Normally open. Closes when the red LED switches on and opens when the red LED switches off.
Alarm Reset
Two terminals are available to connect a push button. Interconnecting the two terminals resets the relay. The reset condition will remain active until the alarm is over.
Enclosure:
• Colour: Blue (RAL 5012)
• Connection Terminals: Screw terminals 6mm /AWG10
• Protection Category: IP22
• Weight: 0.4kg
• Dimensions: 100mm x 113mm x 47mm
