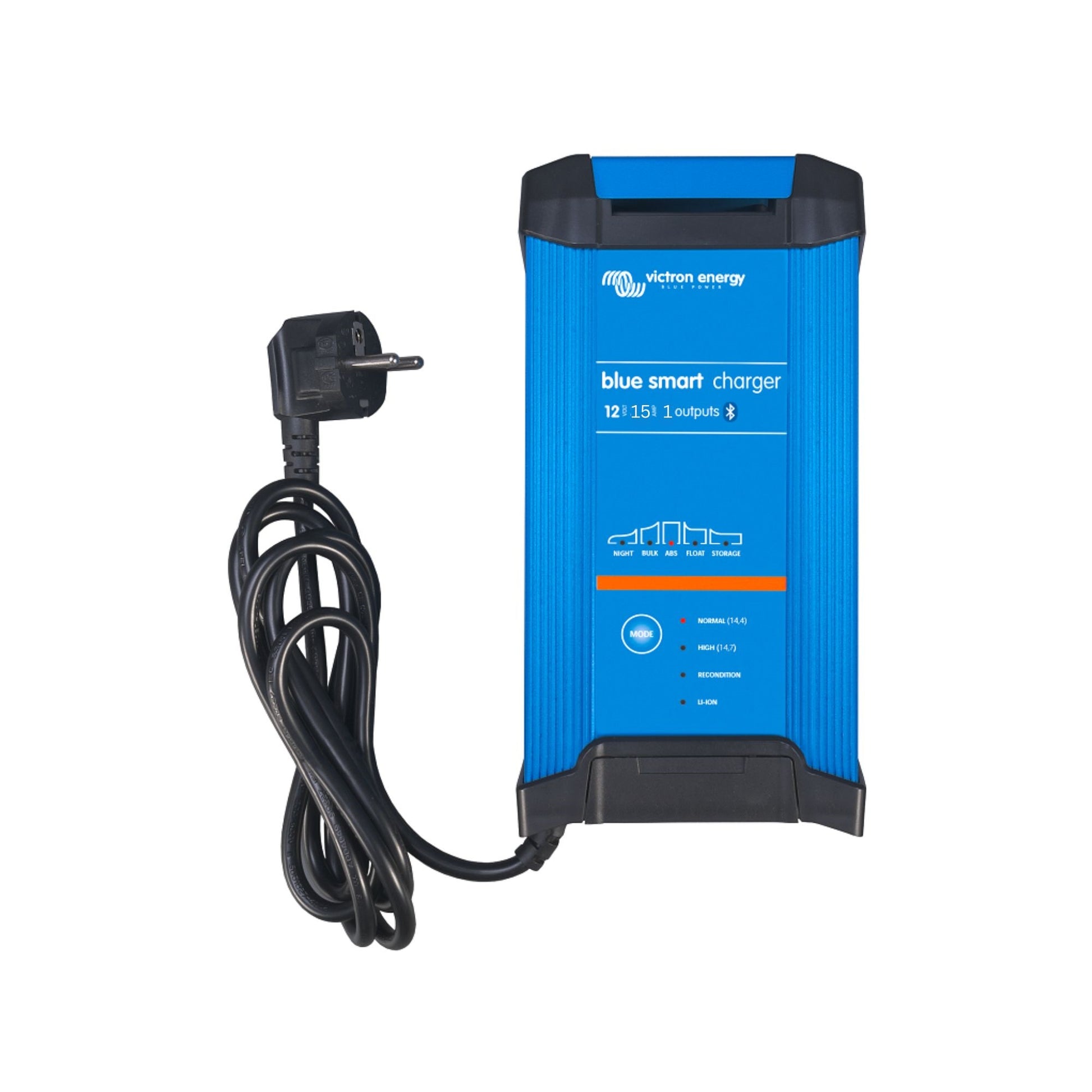

(1) OUTPUT PRODUCT CODE: BPC121542012

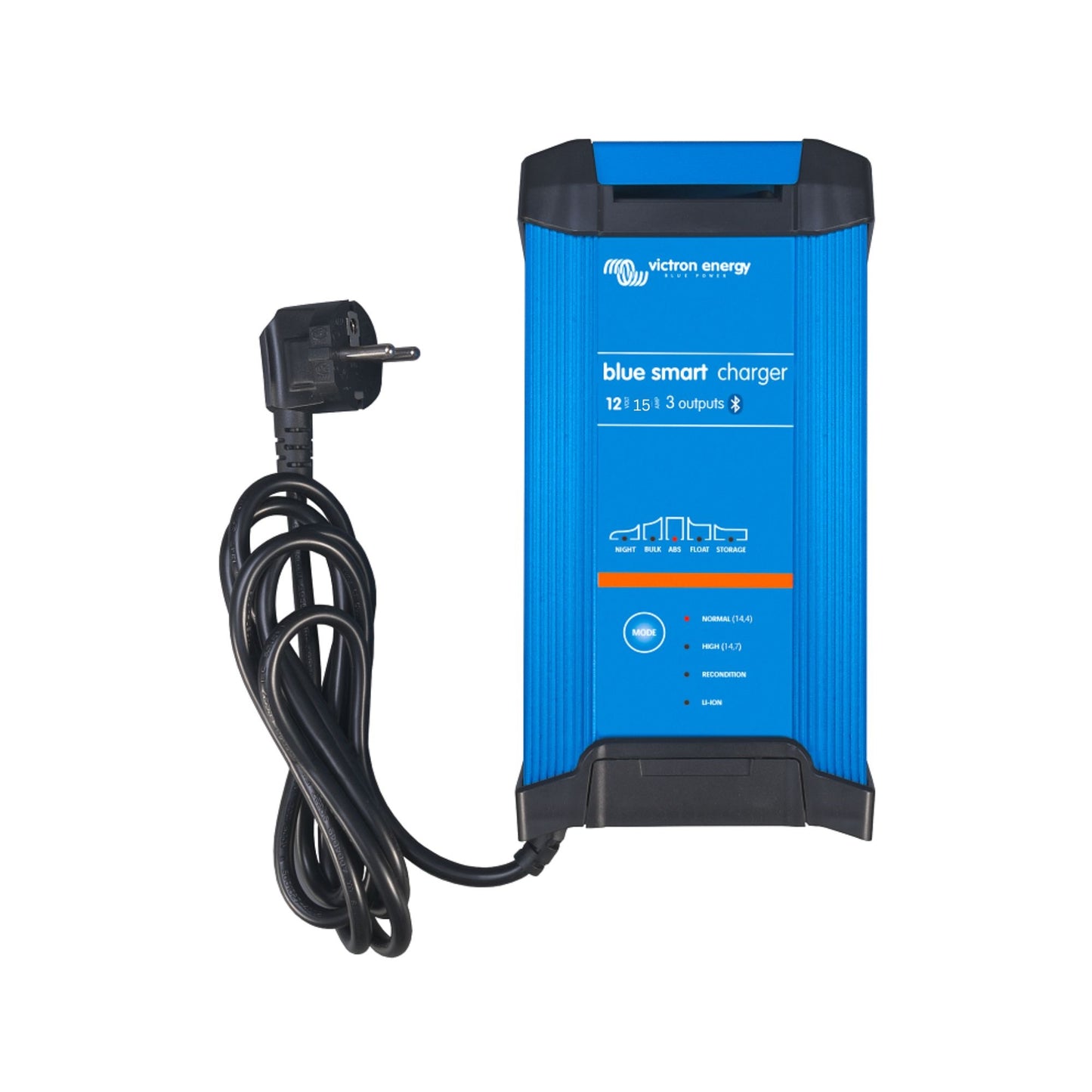

(3) OUTPUT PRODUCT CODE: BPC121544012
The Bluesmart IP22 Charger is a professional battery charger with built-in Bluetooth. The charger can be used on devices in your workshop and on motor vehicles, such as (classic) cars, motorbikes, boats and camper-vans.
The Bluesmart IP22 battery charger is the wireless solution to monitor voltage and current, to change settings and to update the charger when new features become available.
With up to 94% efficiency, these chargers generate up to four times less heat when compared with the industry standard. Once the battery is fully charged, power consumption reduces to 0.5watt, some five to ten times better than the industry standard.
Adaptive 6-Stage Charge Algorithm: Test - Bulk - Absorption - Recondition - Float - Storage
The Bluesmart IP22 Charger features a microprocessor controlled 'adaptive' battery management. The adaptive feature will automatically optimize the charging process relative to the way the battery is being used.
Storage Mode: Less Maintenance And Aging When The Battery Is Not In Use
The storage mode kicks in whenever the battery has not been subjected to discharge during 24hrs. In the storage mode, float voltage is reduced to 2.2V/cell (13.2 for a 12V battery) to minimise gassing and corrosion of the positive plates. Once a week the voltage is raised back to the absorption level to 'equalize' the battery. This feature prevents stratification of the electrolyte and sulphation, a major cause of early battery failure.
Also Charges LI-ion (LiFePO4) Batteries
LiFePO4 batteries are charges with a simple bulk- absorption - float algorithm.
NIGHT And LOW Setting
When in NIGHT or LOW mode, the output current is reduced to max.50% on the nominal output and the charger will be totally noiseless. The NIGHT mode automatically ends after 8 hours. The LOW mode can be ended manually.
Protected Against Overheating
Output current will reduce as temperature increases up to 50°C, but the Bluesmart charger will not fail.
Eleven LED's For Status Indication
Charge algorithm: TEST / BULK / ABSORPTION / RECONDITION / FLOAT / STORAGE / READY.
MODE button to set: NORMAL (14,4V) / HIGH (14,7V) / RECONDITION / LI-ION.
Dimensions: 235mm (H) x 108mm (W) x 65mm (D)
