VICTRON CYRIX-I 24/48-400A INTELLIGENT COMBINER Energy Connections

VICTRON CYRIX-I 24/48-400A INTELLIGENT COMBINER

Regular price
$460.35
Sale price
$460.35
Regular price
Sold out
Unit price
per
Tax included. Shipping calculated at checkout.

PRODUCT CODE: CYR02040000R

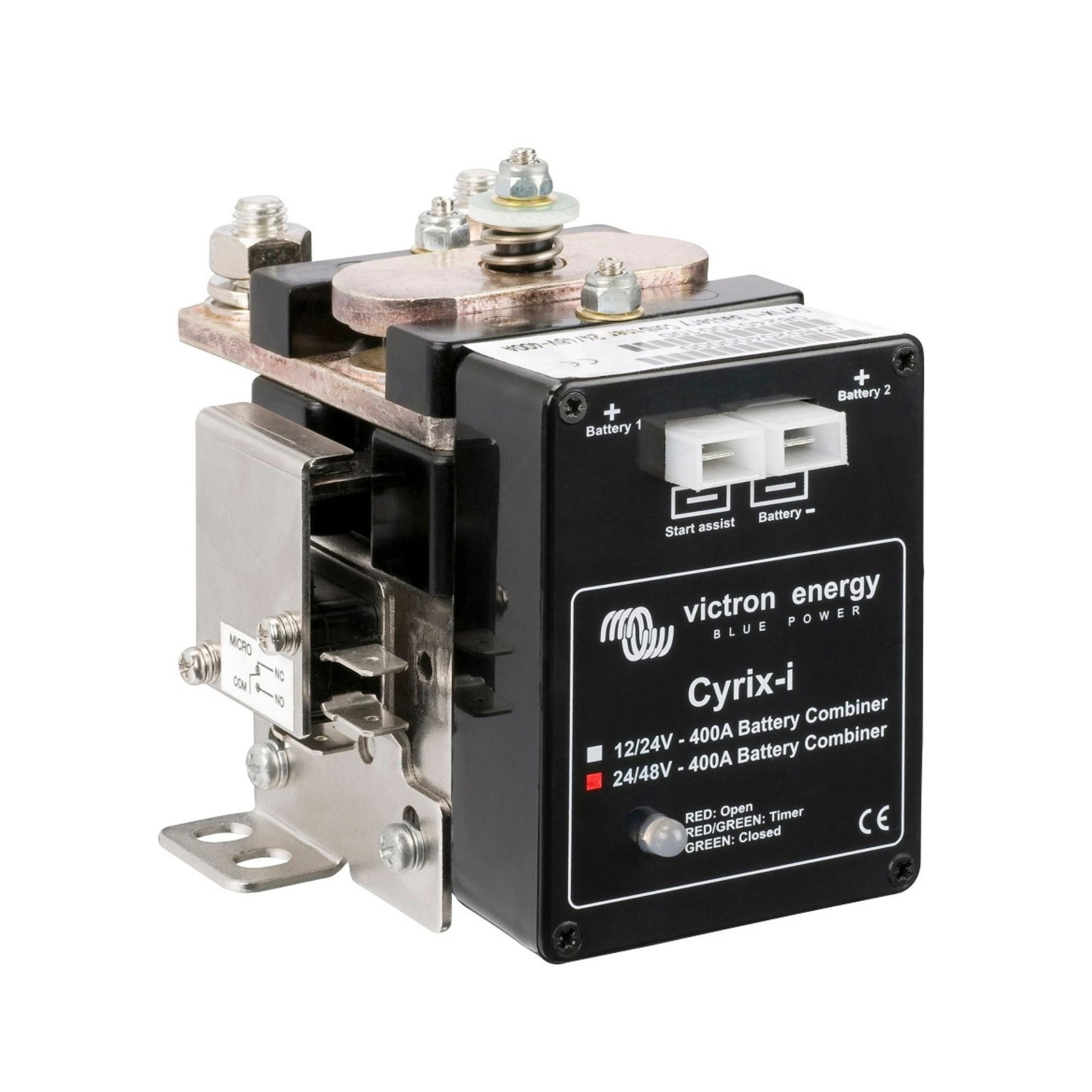

Note: Image used for demonstration purposes.

Data Sheet Link Here

New: Intelligent Battery Monitoring To Prevent Unwanted Switching

Some battery combiners will disconnect a battery in case of a short but high amperage load. A battery combiner also may fail to connect a large but discharged battery bank because the DC voltage immediately drops below the disengage value once the batteries are connected.

The software of the Cyrix-i does more than simply connect and disconnect based on battery voltage and with a fixed time delay. The Cyrix-i looks at the general trend (voltage increasing or decreasing) and reversing a previous action only if the trend has reversed during a certain period of time. The time delay depends on the voltage deviation from the trend. In addition, four switch timing profiles can be chosen.

12/24V and 24/48V Auto Ranging

The Cyrix-i automatically detects system voltage.

No Voltage Loss

Cyrix battery combiners are an excellent replacement for diode isolators. The main feature is that there is virtually no voltage loss so that the output voltage of the alternators or battery chargers does not need to be increased.

Prioritizing The Starter Battery

In a typical setup, the alternator is directly connected to the starter battery. The accessory battery, and possibly also a bow thruster and other batteries are each connected to the starter battery with Cyrix battery combiners. When a Cyrix sensors that the starter battery has reached the connect voltage it will engage, to allow for parallel charging of the other batteries.

Bidirectional Voltage Sensing And Power Supply From Both Batteries

The Cyrix senses the voltage of both connected batteries. It will therefore also engage if for example the accessory battery is being charged by a battery charger. The Cyrix-i has a dual power supply. It will therefore also close if for example if the voltage on one battery is too low to operate the Cyrix. In order to prevent unexpected operation during installation or when one battery has been disconnected, the Cyrix-i will not close if the voltage on one of the two battery connections is lower than 2V (12V battery), or 4V (24V battery) or 8V (48V battery).

Parallel Connection In Case Of Emergency

The Cyrix can also be engaged with a push button (Cyrix remains engaged during the 30s) or a switch to connect batteries in parallel manually. This is especially useful in case of emergency when the starter battery is discharged or damaged.

Enclosure:

Weight: 0.9kg

Dimensions: 78mm (H) x 102mm (W) x 110mm (D)
