PRODUCT CODE: CYR010120410

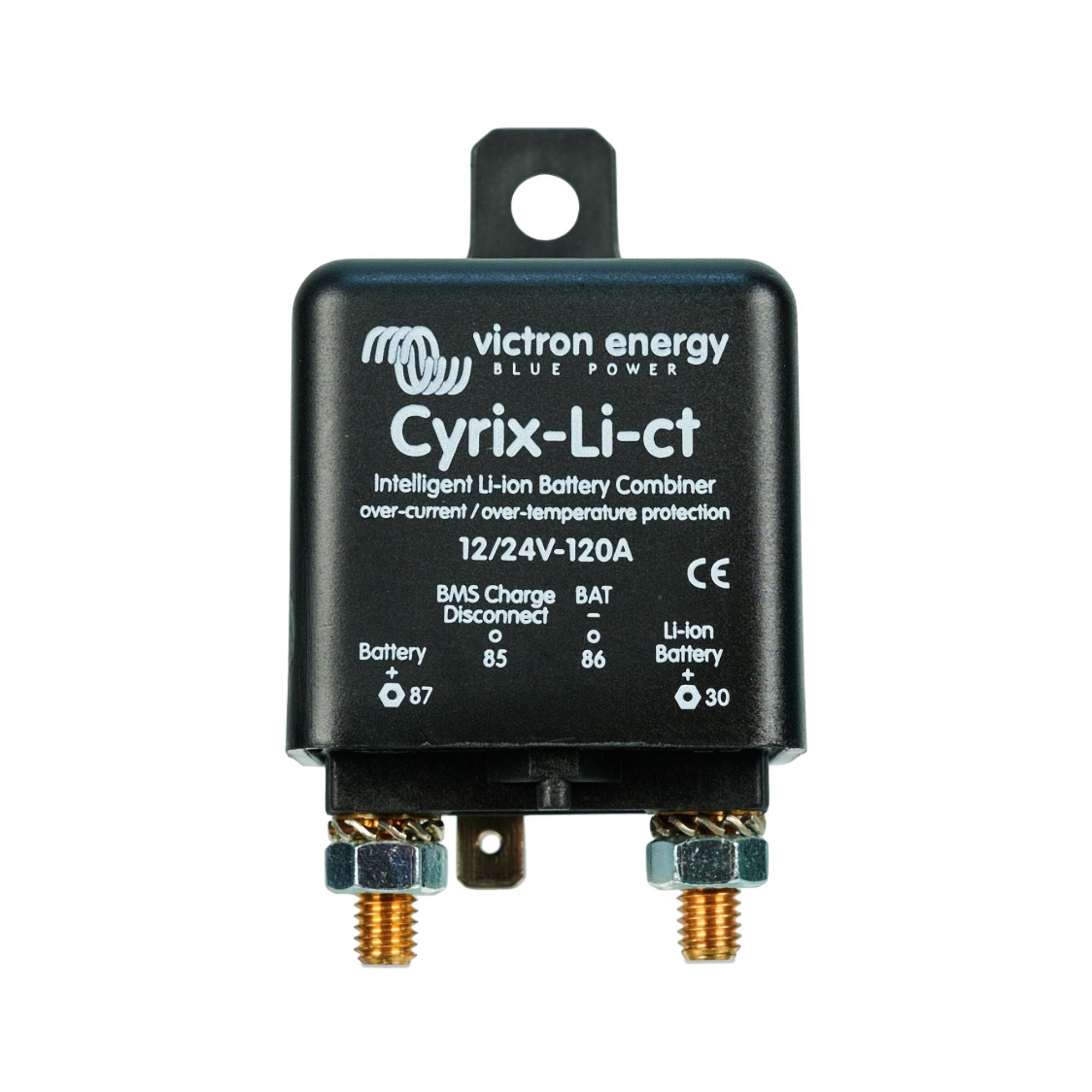

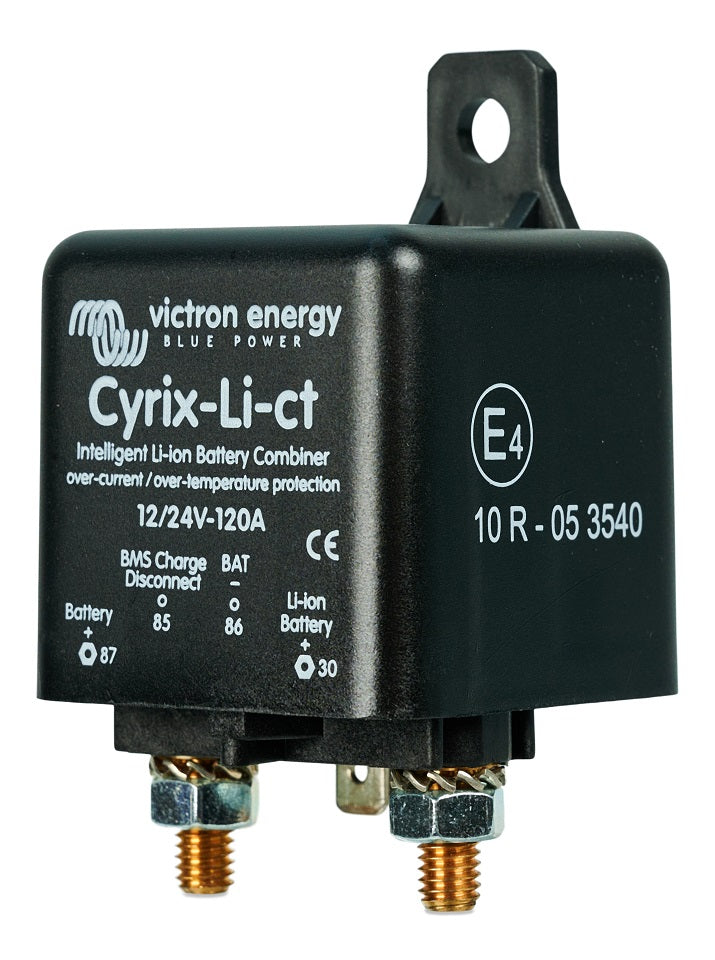

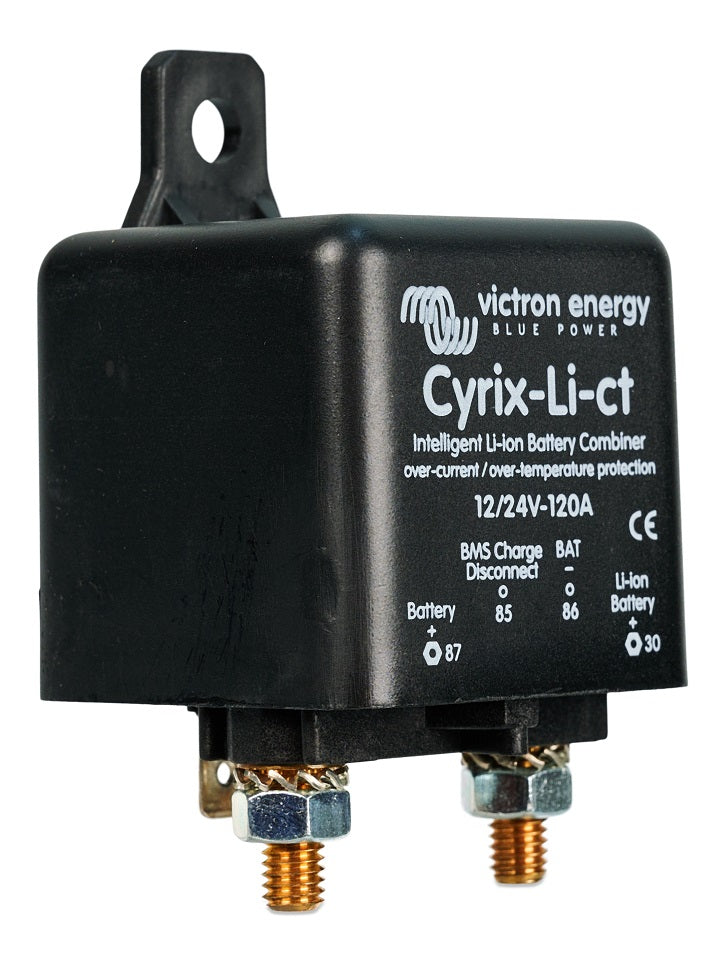

Note: 230A model shown for demonstration.
The Cyrix-Li-Ct
The functionality of the Cyrix-Li-ct is analogous to the Cyrix-Ct.
The Cyrix-Li-ct will parallel connect a lead acid starter and a LiFePO4 battery:
- If the charge disconnect output of the VE.Bus BMS is high, and
- If it senses 13.4V (resp. 26.8V) or more on one of its power terminals.
The Cyrix will disengage immediately:
- When its control output becomes free floating, signalling cell over voltage or cell over temperature and/or
- When battery voltage drops below 13.2V.
Start assist function: A short positive pulse will close the relay during 30 seconds.
