PRODUCT CODE : PMP482307010
All In One Power Solution

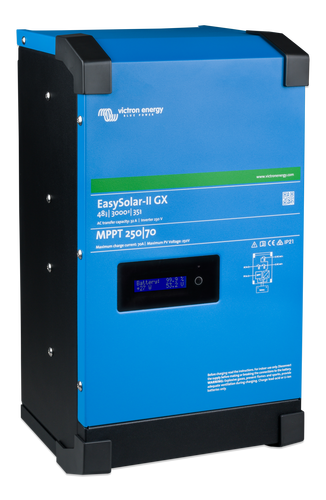

The EasySolar-II GX combines a MPPT Solar Charge Controller, an inverter/charger and control hub in one enclosure. The product is easy to install, with a minimum of wiring.
The Victron EasySolar-II GX integrates the following elements:
• A Multiplus-II inverter/charger
• A SmartSolar MPPT -Tr solar charge controller
• A GX device with a 2 x 16 character display.
These elements come prewired together inside a single unit. This greatly simplifies
most installations, saving time and money.

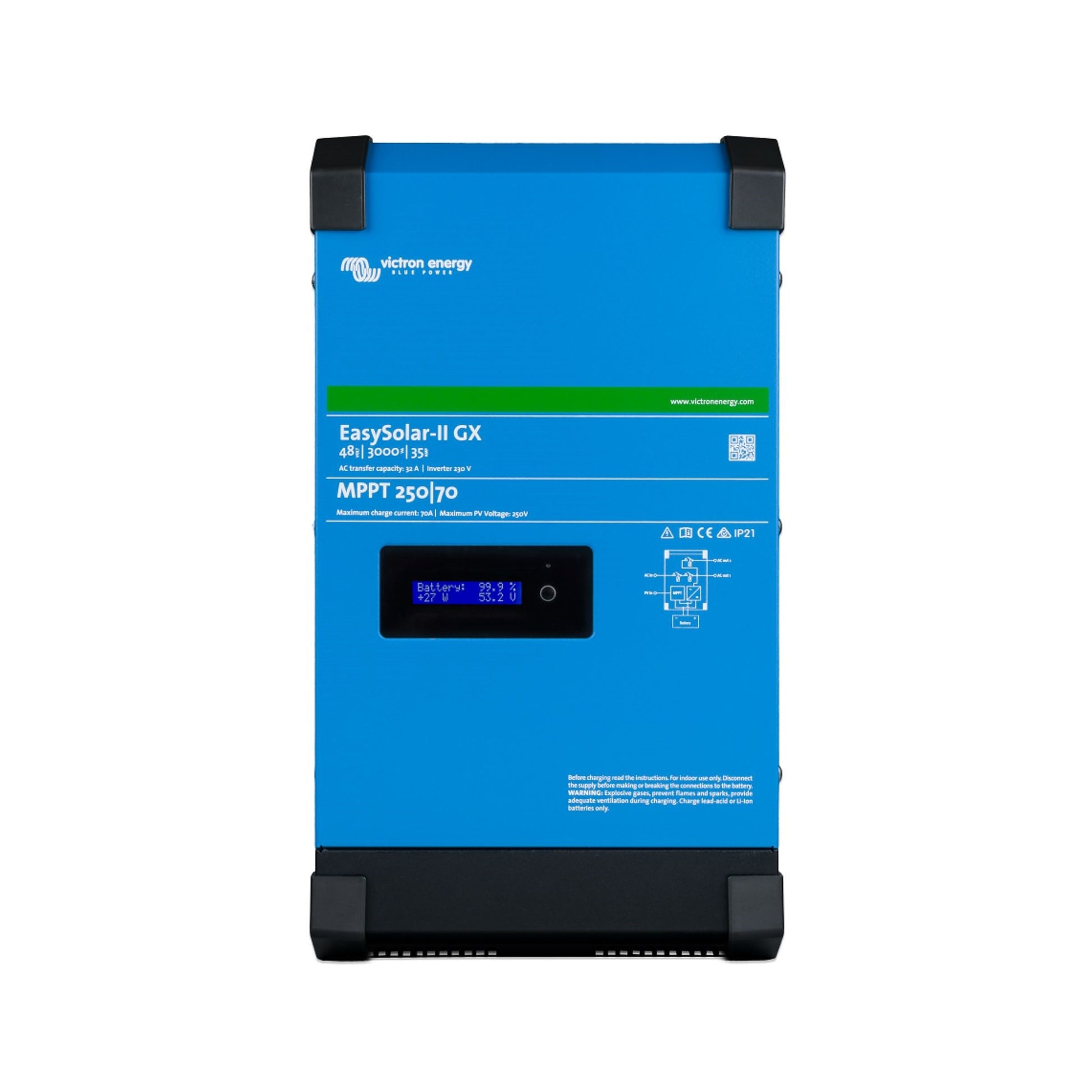

Display & Wi-fi
The display reads battery, inverter and solar charge controller parameters.
The same parameters can be accessed with a smartphone or other Wi-Fi enabled
In addition, Wi-Fi can be used to set up the system and to change settings.
Solar Charge Controller
The DC output of the SmartSolar MPPT is parallel wired with the DC connection of the
The on/off mechanism of the Multiplus-II also controls the SmartSolar MPPT.

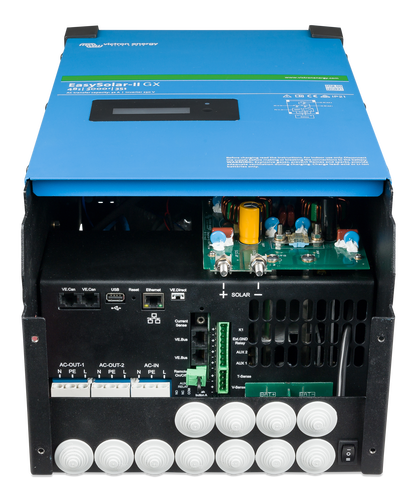

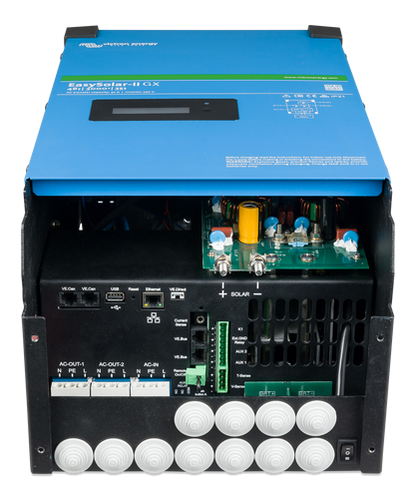

The integrated GX device includes:
• A VE.Can interface. This can be used to connect to Victron VE.Can devices (eg
VE.Can MPPTs), or the port can be reconfigured via the Remote Console for use
with a compatible CAN-bus Li-ion Battery
• A USB port
• A Ethernet port
• A VE.Direct port
The GX device controls the MultiPlus-II and the SmartSolar MPPT with respectively a
VE.Bus and a VE.Direct connection.
Material: Aluminium (blue RAL 5012)
Protection Category: IP21
Dimensions: 506mm (H) x 275mm (W) x 237 mm (D)
