PRODUCT CODE : CEP121621000

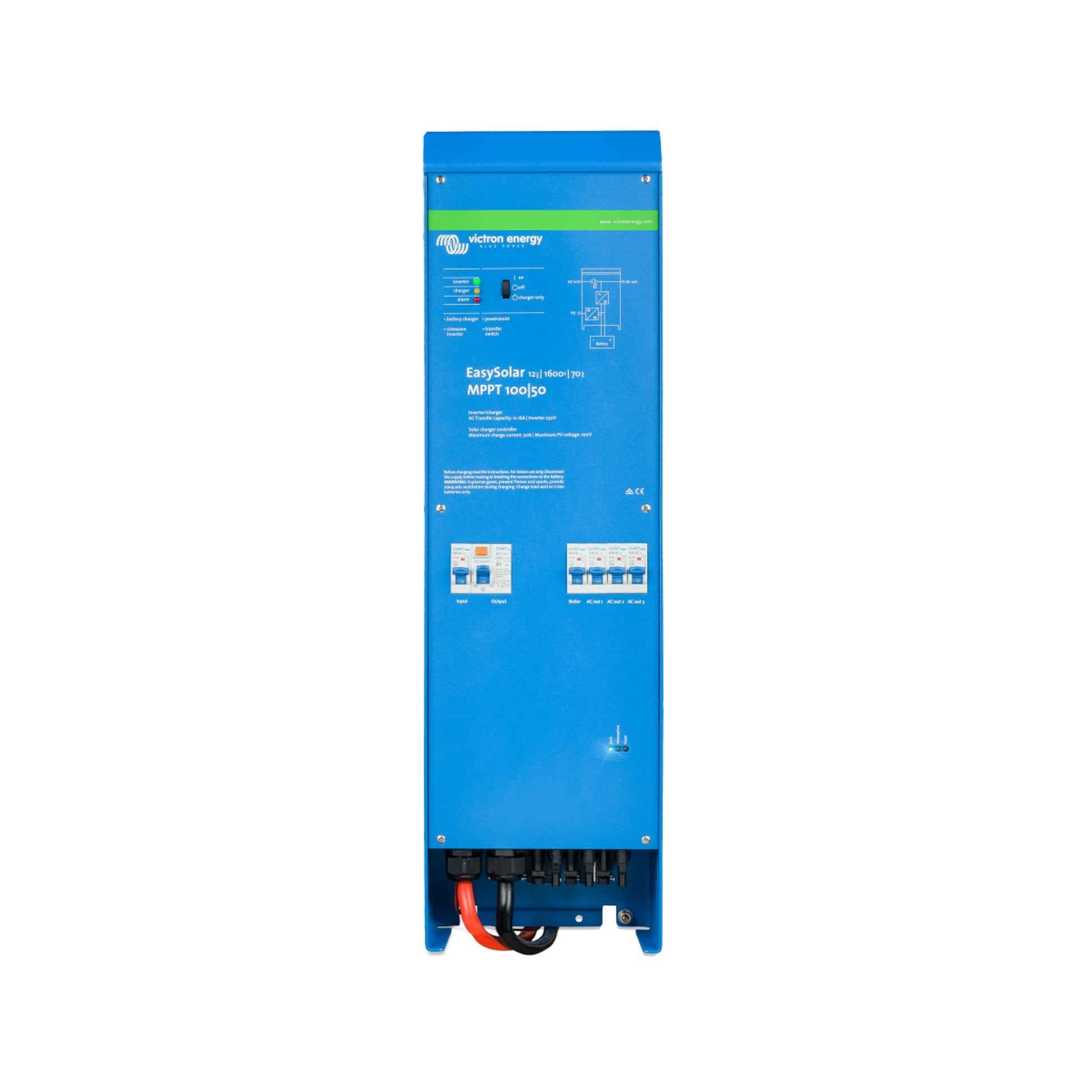

Note: 24volt version pictured for demonstration purposes.
Power Output:
Cont.Output power at 25°C (VA) 1600
Cont. Power at 25°C/40°C (W) 1300/1200
Peak Power (W) 3000
All In One Power Solution
The EasySolar combines an MPPT solar charge controller, an inverter/charger and AC distribution in one enclosure. The product is easy to install, with a minimum of wiring.
The Solar Charge Controller: BlueSolar MPPT 100/50
Up to three strings of PV panels can be connected to three sets of MC4 (PV-ST01) PV connectors.
The Inverter/Charger: Multiplus Compact 12/1600/70
The MPPT charge controller and the Multiplus Compact inverter/charger share the DC battery cables (included). The batteries can be charged with solar power (BlueSolar MPPT) and/or with AC power (inverter/charger) from the utility grid or a genset.
AC Distribution
The AC distribution consists of an RCD (30mA/16A) and four AC outputs protected by two 10A and two 16A circuit breakers. One 16A output is controlled by the AC input: it will switch on only when AC is available.
PowerAssist
Unique PowerAssist technology protects the utility or generator supply from being overloaded by adding extra inverter power when needed.
Unique Solar Application Software
Several software programs (Assistants) are available to configure the system for various grid-interactive or stand-alone applications. Please click here.
Enclosure:
Material and colour: Aluminium (Blue RAL 5012)
Protection category: IP21

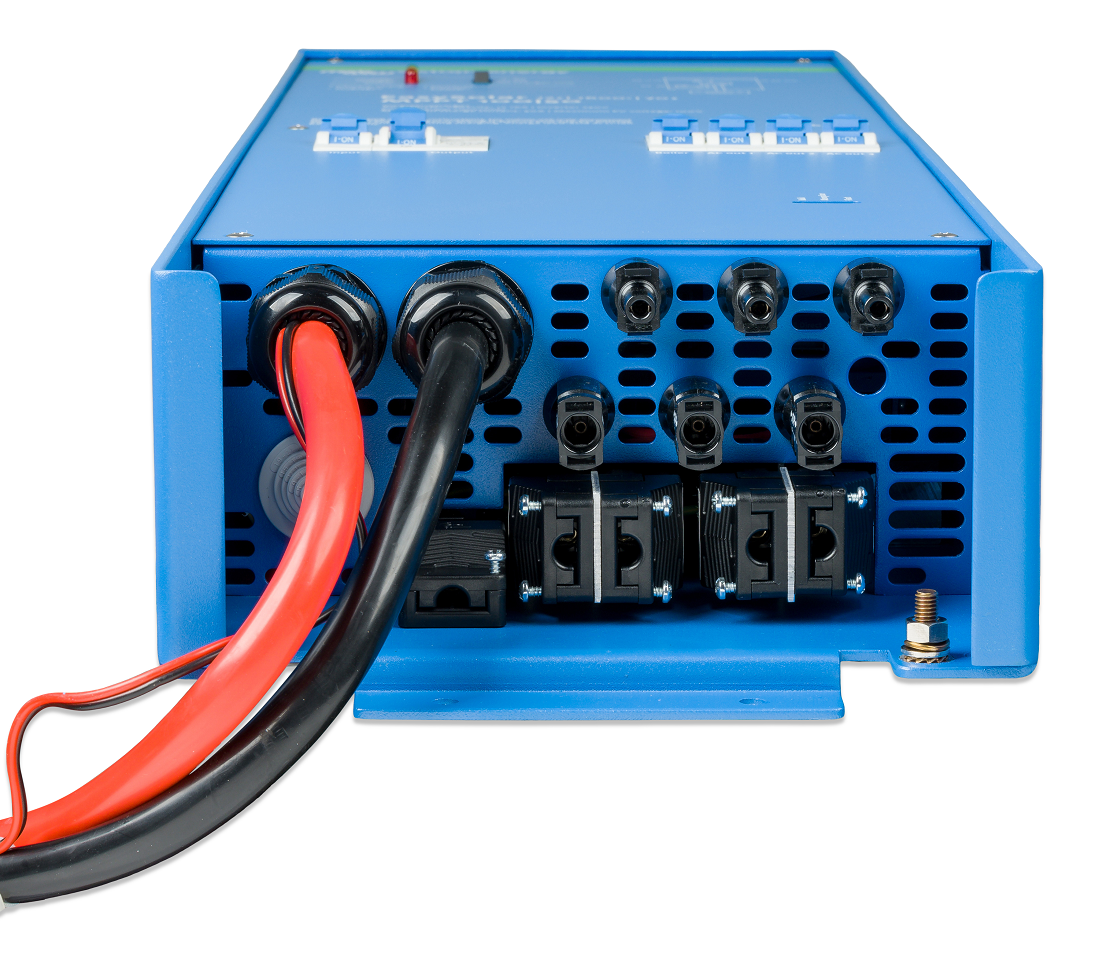

Battery connection: 1.5m battery cable
PV connection: Three sets of MC4 PV connectors
230V AC connection: G-ST18i connector
Weight: 15kg
Dimensions: 745mm(H) x 214mm(W) x 110mm(D)
