PRODUCT CODE: BCD000802000

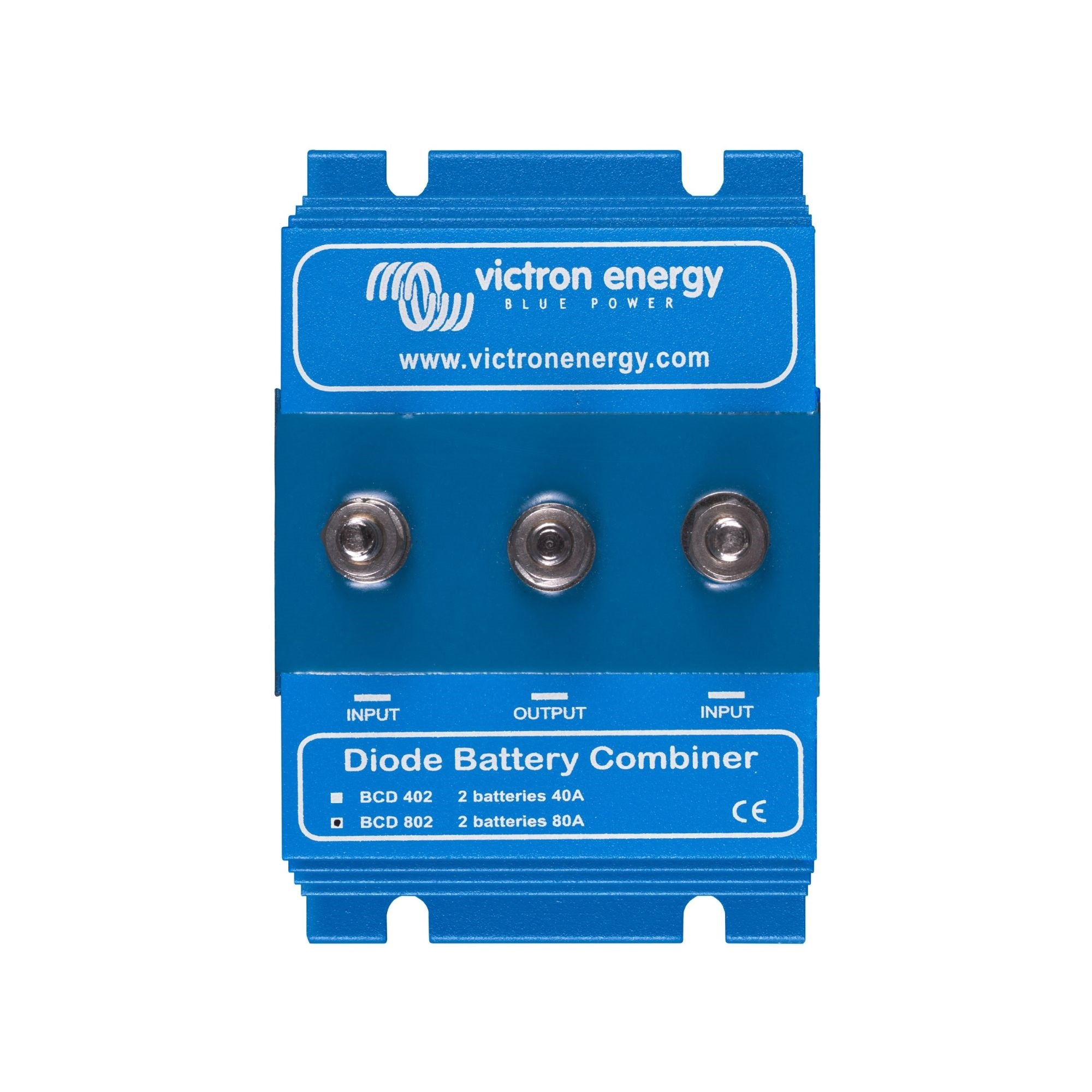

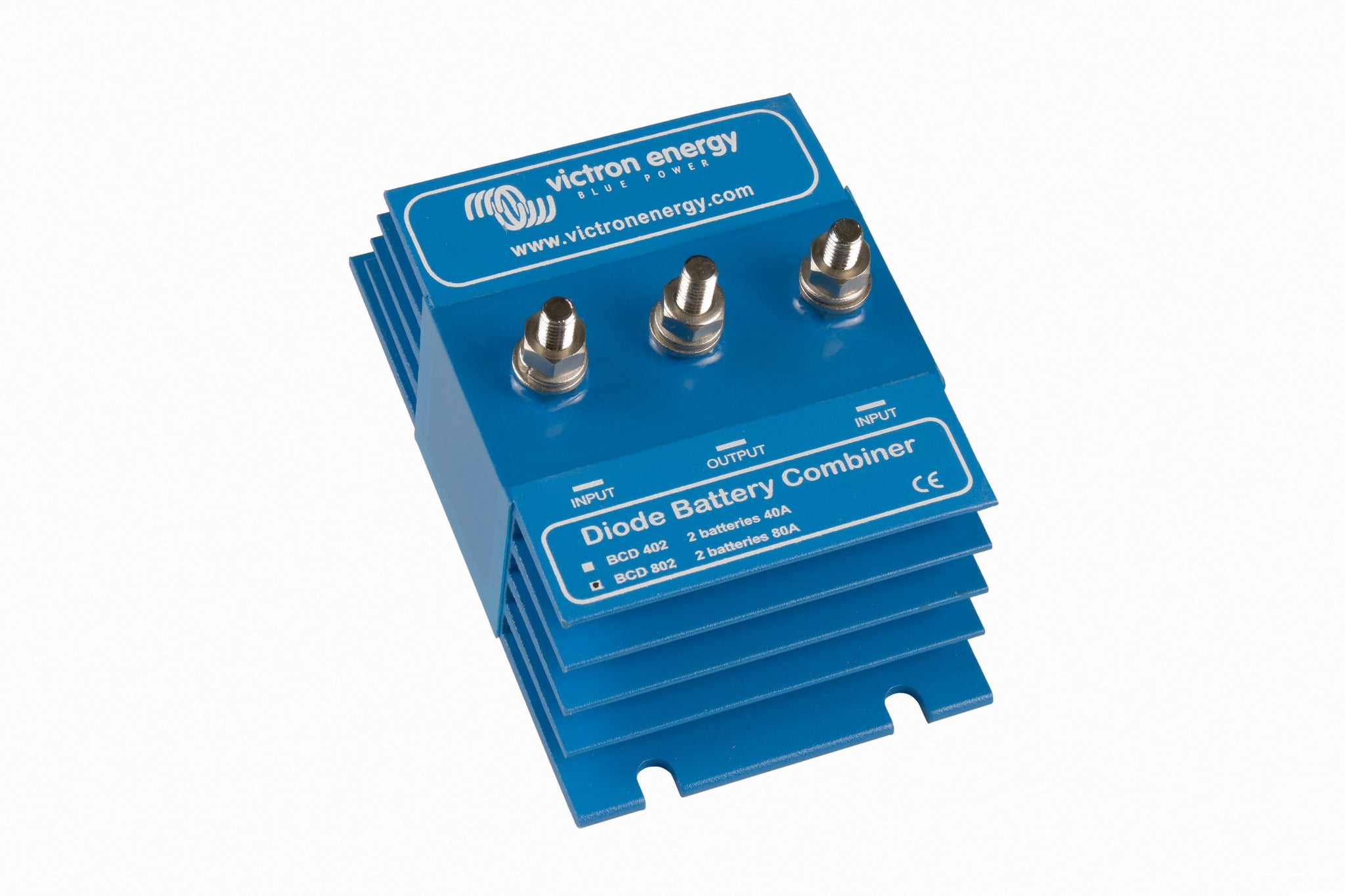

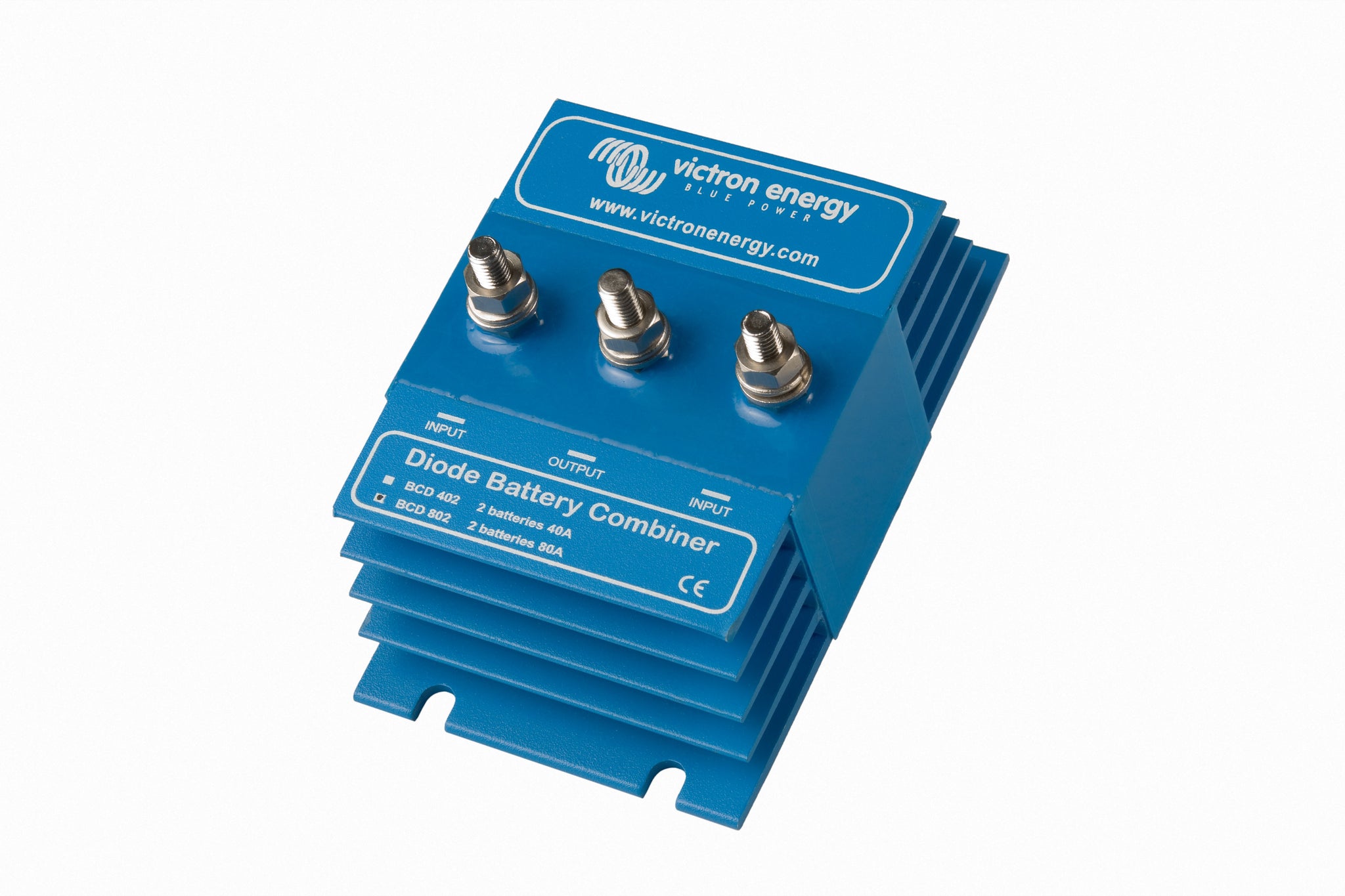

Diode battery combiners are used to guarantee continuous DC power to mission-critical equipment, such as an electronic engine control system. With a diode battery combiner two or more DC power sources can be used in parallel to supply the mission-critical load. Failure of one source will not interrupt power to the critical load.
The Argo battery combiners feature a low voltage drop thanks to the use of Schottky diodes: at low current, the voltage drop is approximately 0,3V and at the rated output approximately 0,45V.
Warning: Hot surface, mount the Argo diode battery combiner on non-flammable surfaces only.
Specifications:
• Maximum continuous current (A): 80
• Number of Batteries: 2
• Connection: M6 Bolts
• Weight kg (lbs): 0.8kg (1.8)
• Dimensions: 60mm (H) x 120mm (W) x 75mm (D)
