VICTRON CYRIX-LI-CHARGE 12/24V-120A INTELLIGENT CHARGE RELAY Energy Connections

VICTRON CYRIX-LI-CHARGE 12/24V-120A INTELLIGENT CHARGE RELAY

Regular price
$128.70
Sale price
$128.70
Regular price
$143.00
Sold out
Unit price
per
Tax included. Shipping calculated at checkout.

PRODUCT CODE: CYR010120430

The LiFePO4 Battery: Preventing Cell Under Voltage, Over Voltage And Over Temperature

Data Sheet Link Here

The first line of protection is cell balancing. All Victron LiFePO4 batteries have integrated cell balancing.

The second line of protection consists of:

• Shut down of the load in case of an imminent cell under voltage, and

• Shut down or reduction of the charging current in case of an imminent cell overvoltage, high temperature (>50_C) or low temperature (<0_C). The VE.Bus BMS is the core of the second protection line. However, not all loads or chargers can be controlled directly by the VE.Bus BMS. In order to shut down such loads or chargers several VE.Bus BMS controllable Cyrix switches are available.

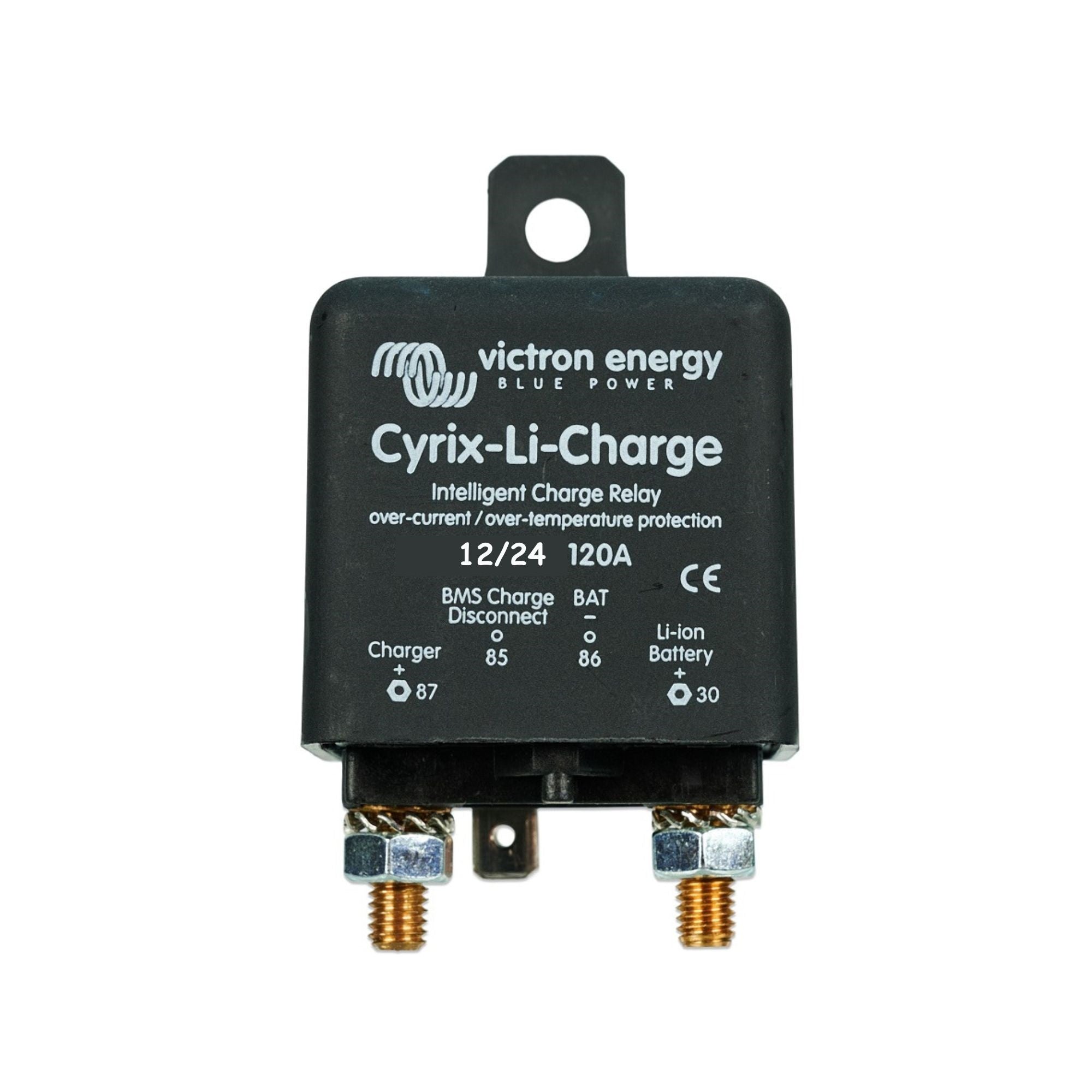

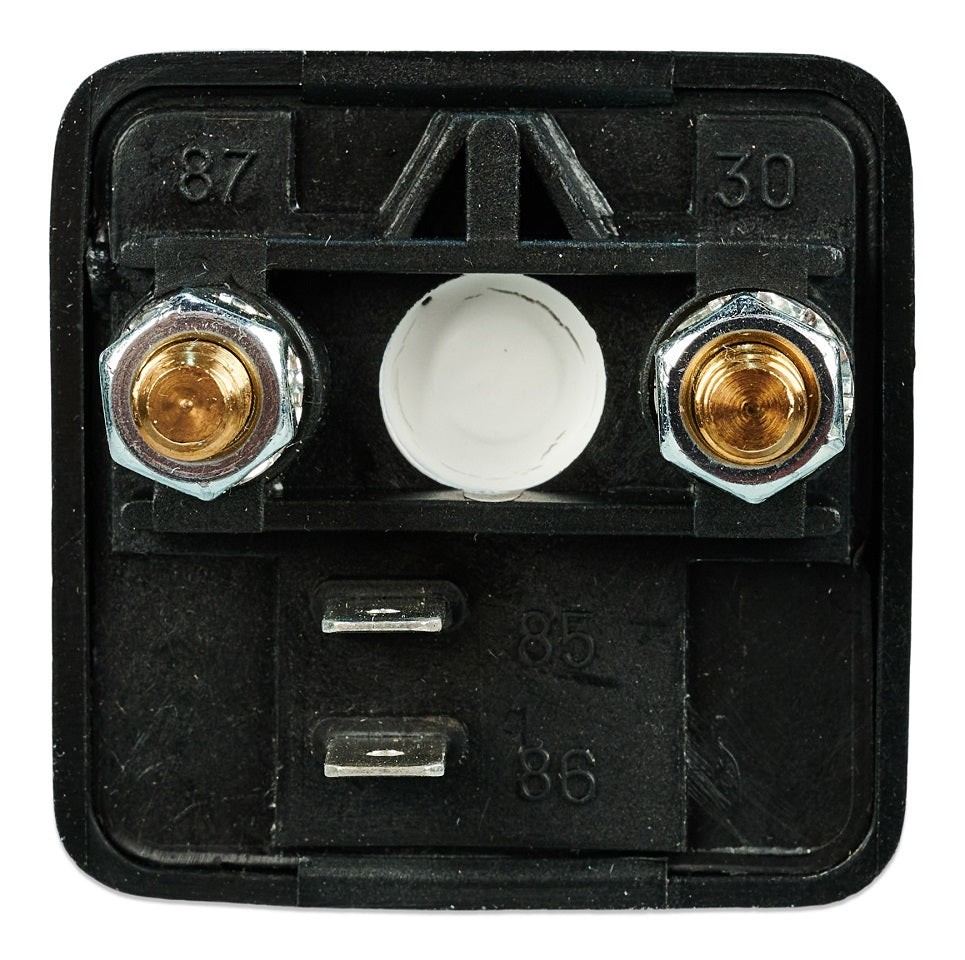

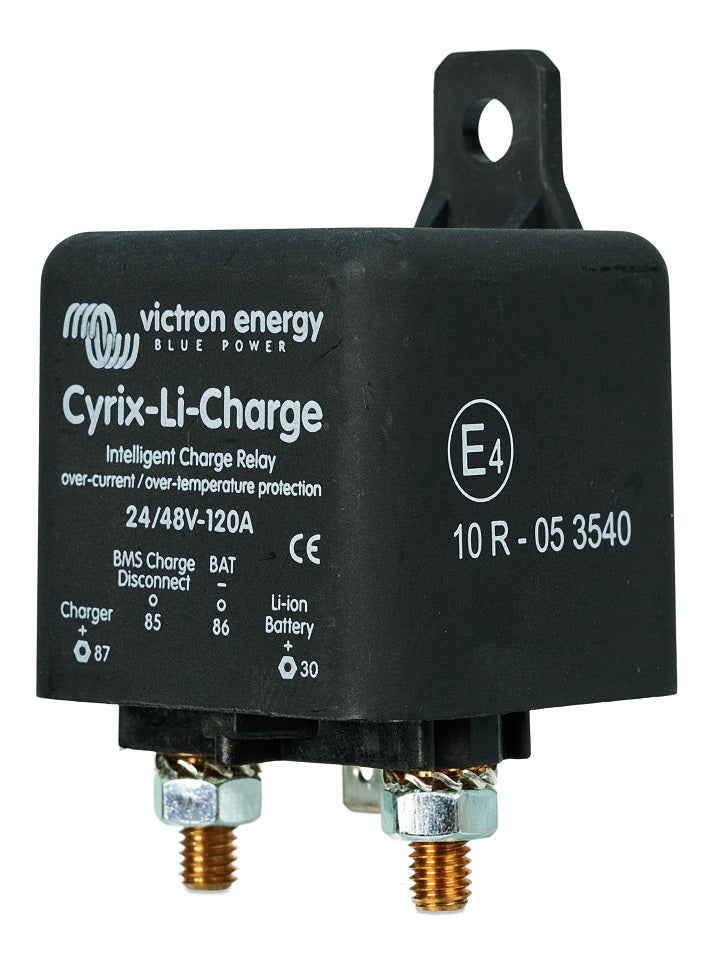

Cyrix-Li-Charge

The Cyrix-Li-Charge will connect a battery charger with 3 seconds delay:

• If the Charge Disconnect output of the VE.Bus BMS is high, and

• If it senses 13,7 V (resp. 27,4 V or 54,8 V) or more on its battery charger connection terminal, and

• If it senses 2 V or more on its battery terminal (the Cyrix will remain open if not connect to the battery).

The Cyrix-Li-Charge will disengage immediately whenever its control output becomes free-floating, signaling cell overvoltage or cell over-temperature. In general, a cell overvoltage alarm will reset shortly after charging has been stopped. The Cyrix will then reconnect the charger. After 2 attempts to re-engage with 3 seconds delay, the delay increases to 10 minutes. Whenever battery voltage is less than 13,5 V (resp 27 V or 54 V), the Cyrix will disengage with a delay of 1 hour.

Note 1: In case of zero discharge current, or a small discharge current, the Cyrix will not disengage shortly after the charger has been switched off and/or disconnected because battery voltage will remain higher than 13,5 V.

Note 2: If, after the Cyrix has disengaged, the output of the battery charger immediately increases to 13,7 V or more, the Cyrix will re-engage, with 3 seconds delay.

Enclosure:

Protection category: IP54

Weight: 0.11kg

Dimensions: 46mm (H) x 46mm (W) x 80mm (D)
