PRODUCT CODE : BAT512120705

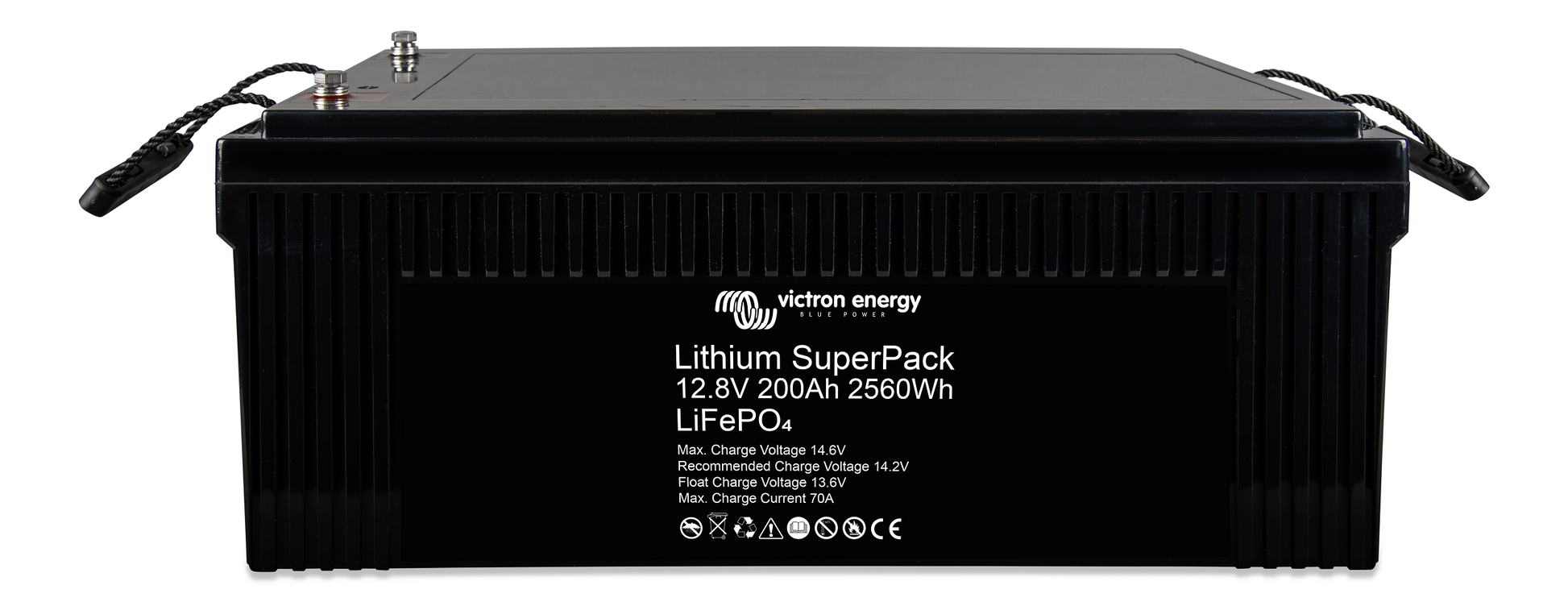

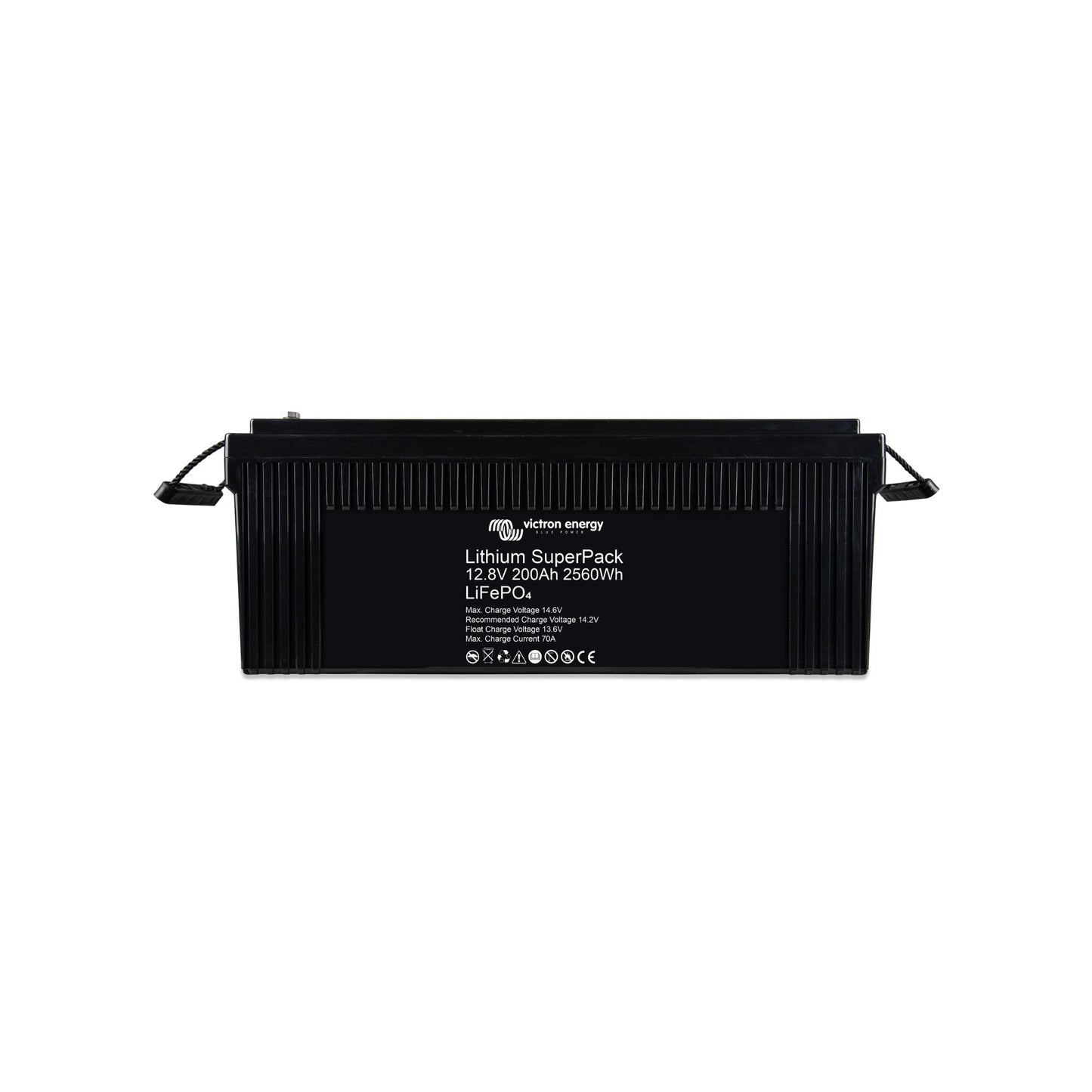

Victron Lithium SuperPack 12,8V/200Ah 2560Wh LiFePO4 (M8) with Integrated BMS and safety switch
Integrated BMS and safety switch
The SuperPack batteries are extremely easy to install, needing no additional components such as an external BMS. The internal switch will disconnect the battery in case of over discharge, over charge or high temperature.
Abuse proof
A lead-acid battery will fail prematurely due to sulfation:
- If it operates in deficit mode during long periods of time (i.e. if the battery is rarely, or never at all, fully charged).
- If it is left partially charged or worse, fully discharged.
A Lithium-Ion battery does not need to be fully charged. Service life even slightly improves in case of partial charge instead of a full charge. This is a major advantage of Li-ion xompared to lead-acid. The SuperPack batteries will cut-off the charge or discharge current when the maximum ratings are reached.
Efficient
In several applications (especially off-grid solar), energy efficiency can be of crucial importance. The round-trip energy efficiency (discharge from 100% to 0% and back to 100% charged) of the average lead-acid battery is 80% however the round-trip energy efficiency of a Li-ion battery is 92%.
The charge process of lead-acid batteries becomes particularly inefficient when the 80% state of charge has been reached, resulting in efficiencies of 50% or even less in solar systems where several days of reserve energy are required (battery operating in 70% to 100% charged state). In contrast, a Li-ion battery will still achieve 90% efficiency even under shallow discharge conditions.
Can be connected in Parallel
The SuperPack Litium batteries can be connected in parallel to increase capacity. Series connection however is not allowed and will result in damaged batteries if done so.
Use in an upright position only.
Enclosure:
Dimensions: 520mm (H) x 269mm (W) x 208mm (D)
Weight: 21kg
