PRODUCT CODE: LYN060102010

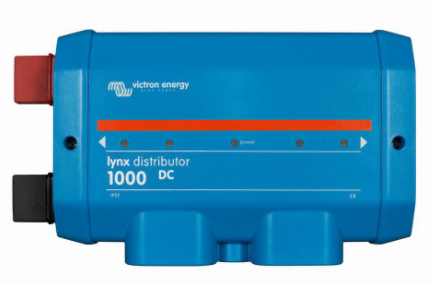

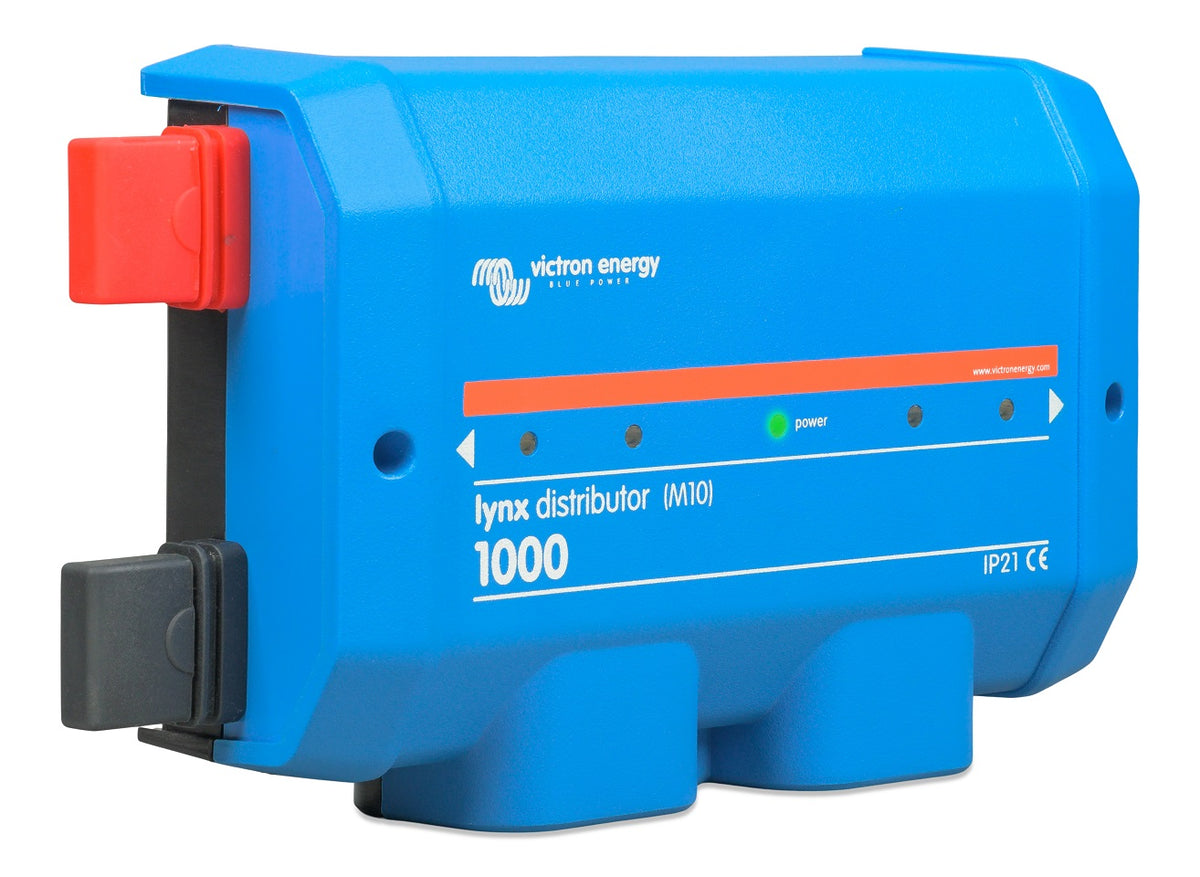

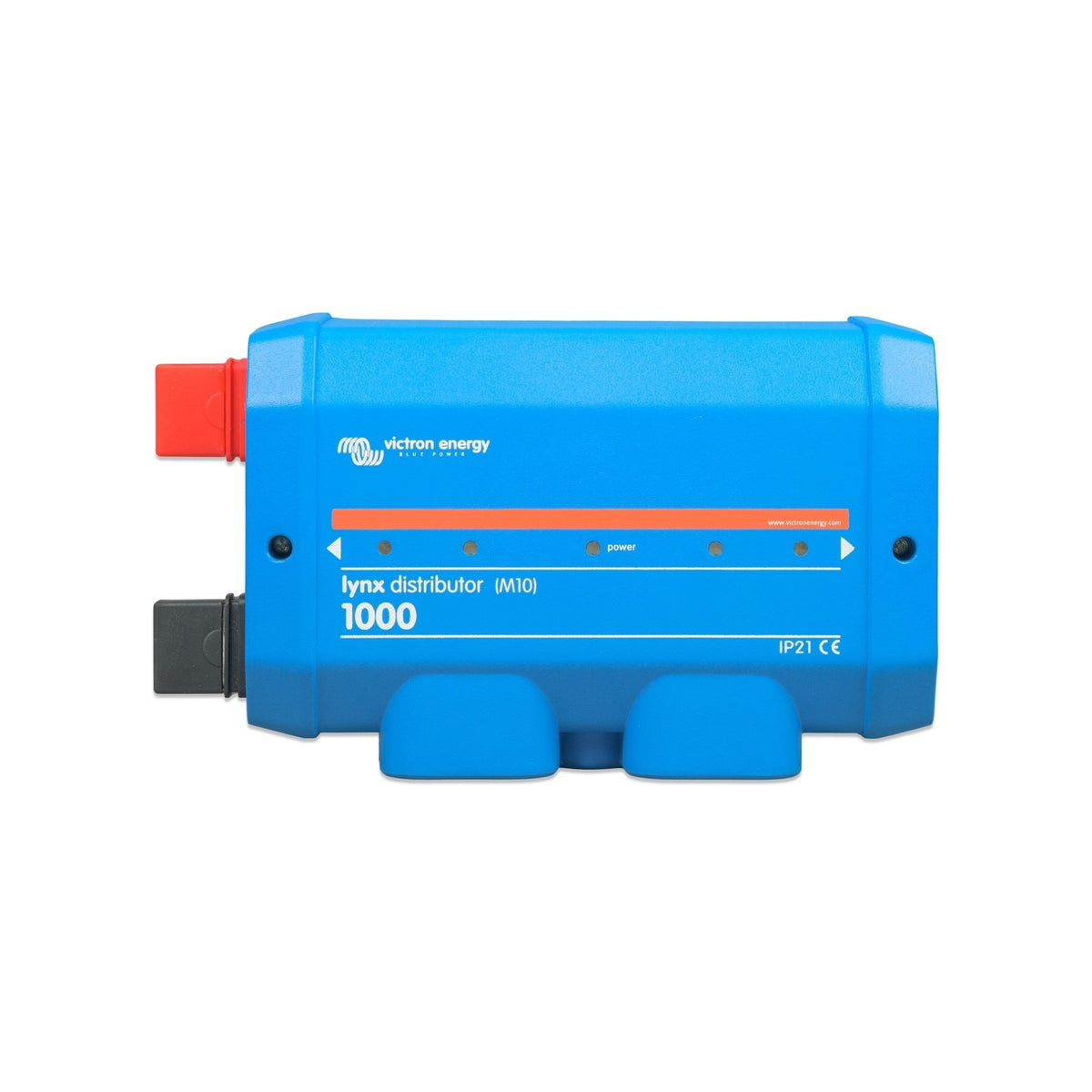

Victron LYNX Distributor (M10)

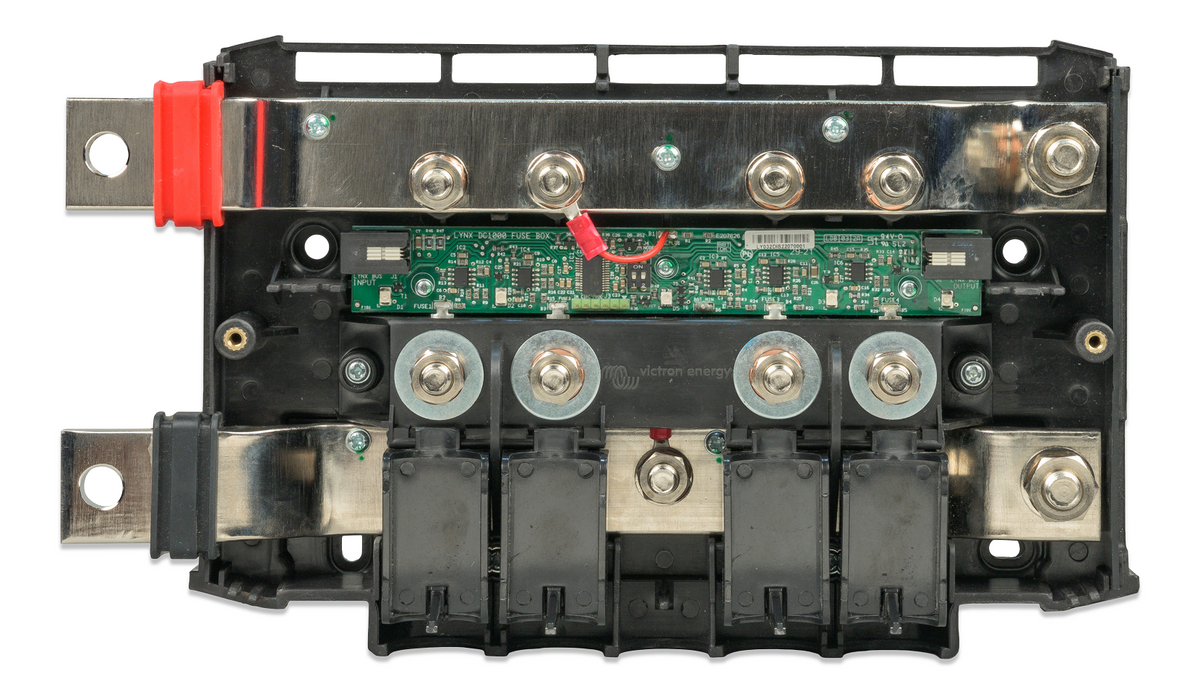

The VICTRON LYNX DISTRIBUTOR (M10) is a modular DC busbar designed for easy installation and monitoring of four AMG/MEGA DC fuses (sold separately). With a LED indicator for each fuse, it ensures efficient and safe distribution of power in the Lynx system.
FEATURES:
- Voltage range 9 - 60Vdc
- Supported system voltages 12, 24 or 48V
- Current rating 1000A
- Reverse polarity protection Yes
- Busbar M10
- Fuses M8
- Enclosure material ABS
- Enclosure dimensions (hxwxd) 290 x 170 x 80mm
- Unit weight 2.2 kg
- Busbar material Tinned copper
- Busbar dimensions (hxw) 8 x 30mm
- Operating temperature range -40°C to +60°
- Storage temperature range -40°C to +60°
- Protection class IP22
