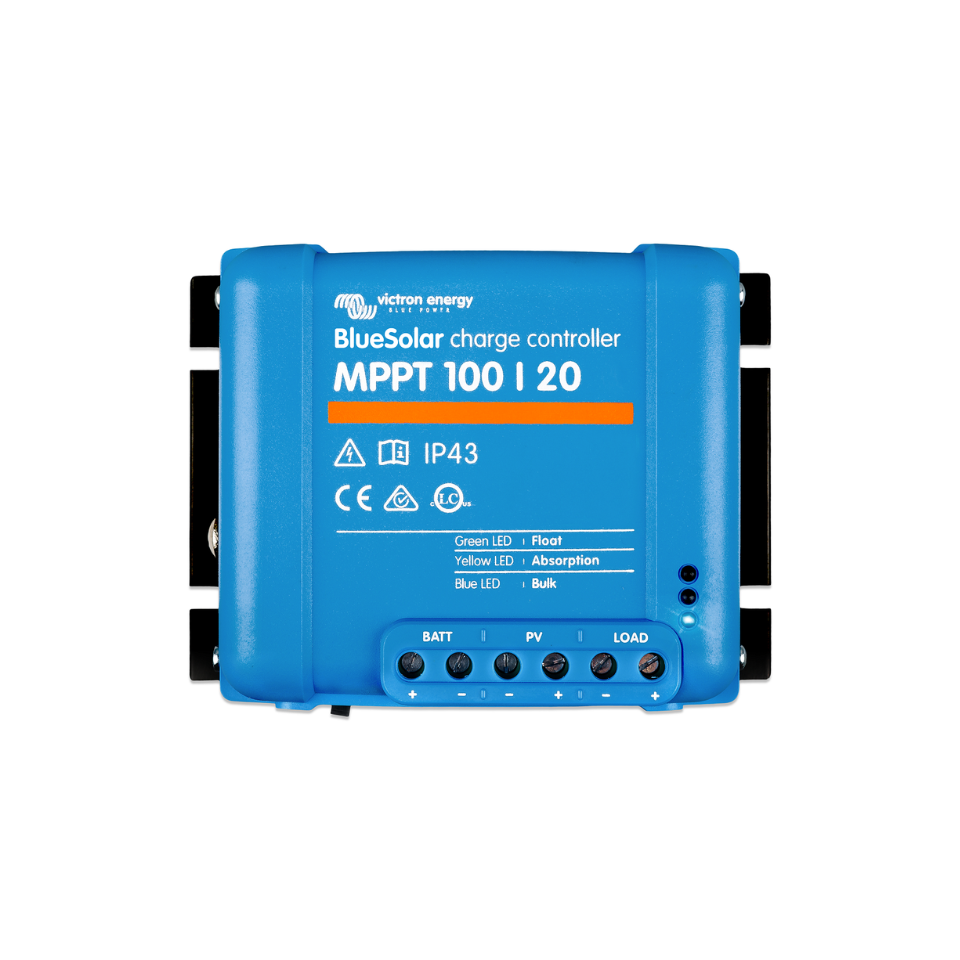

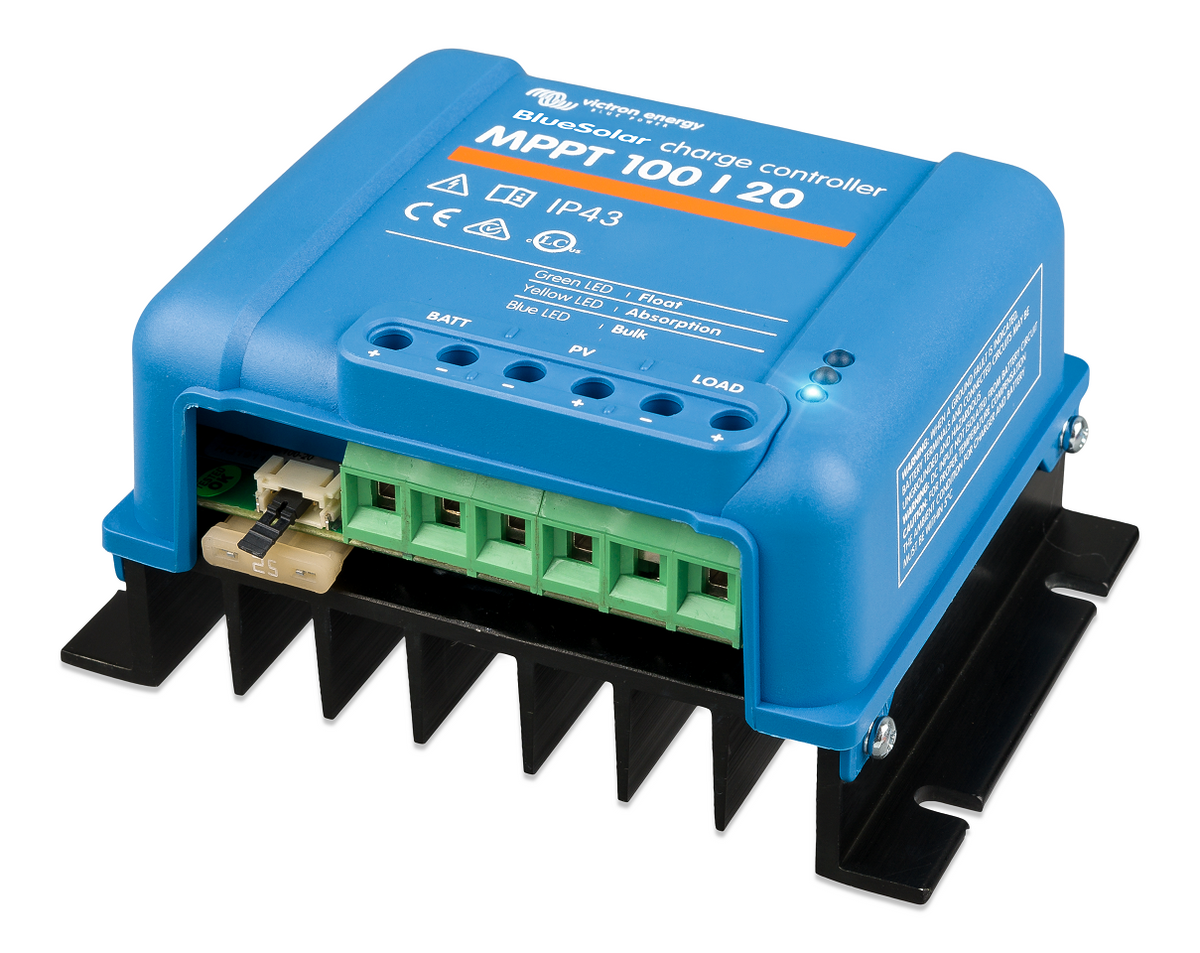

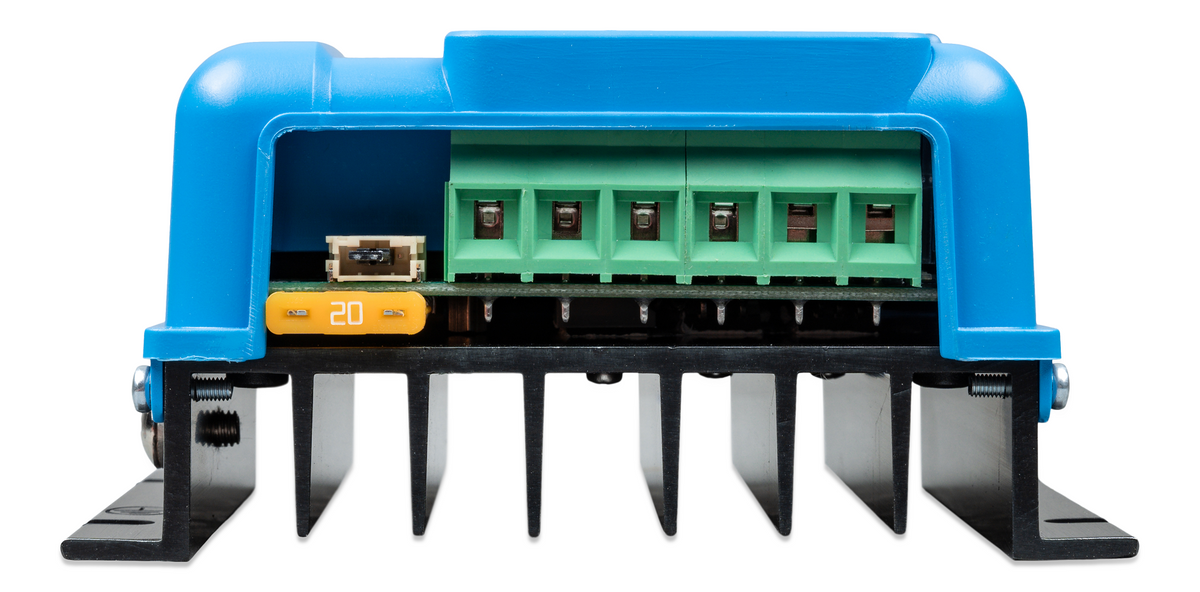

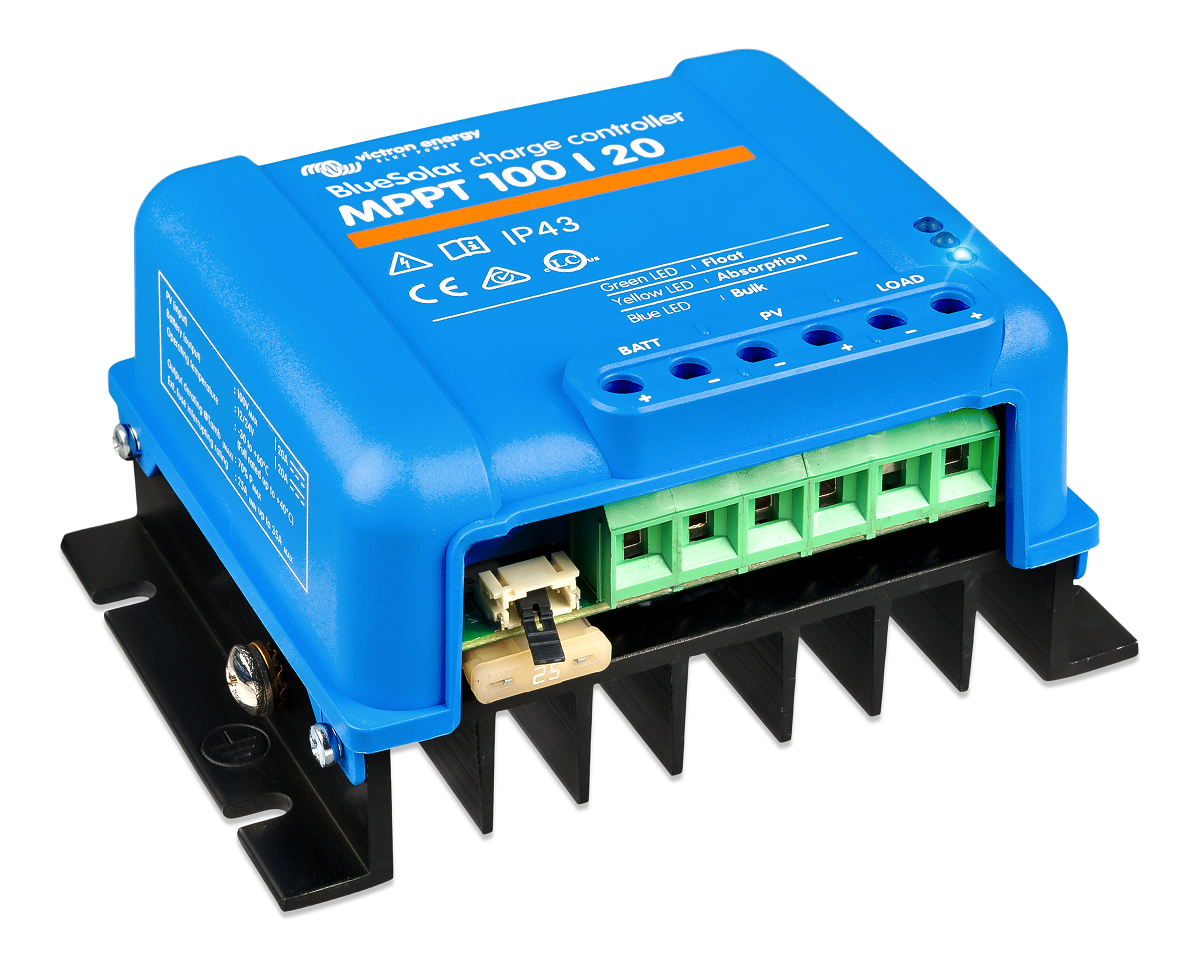

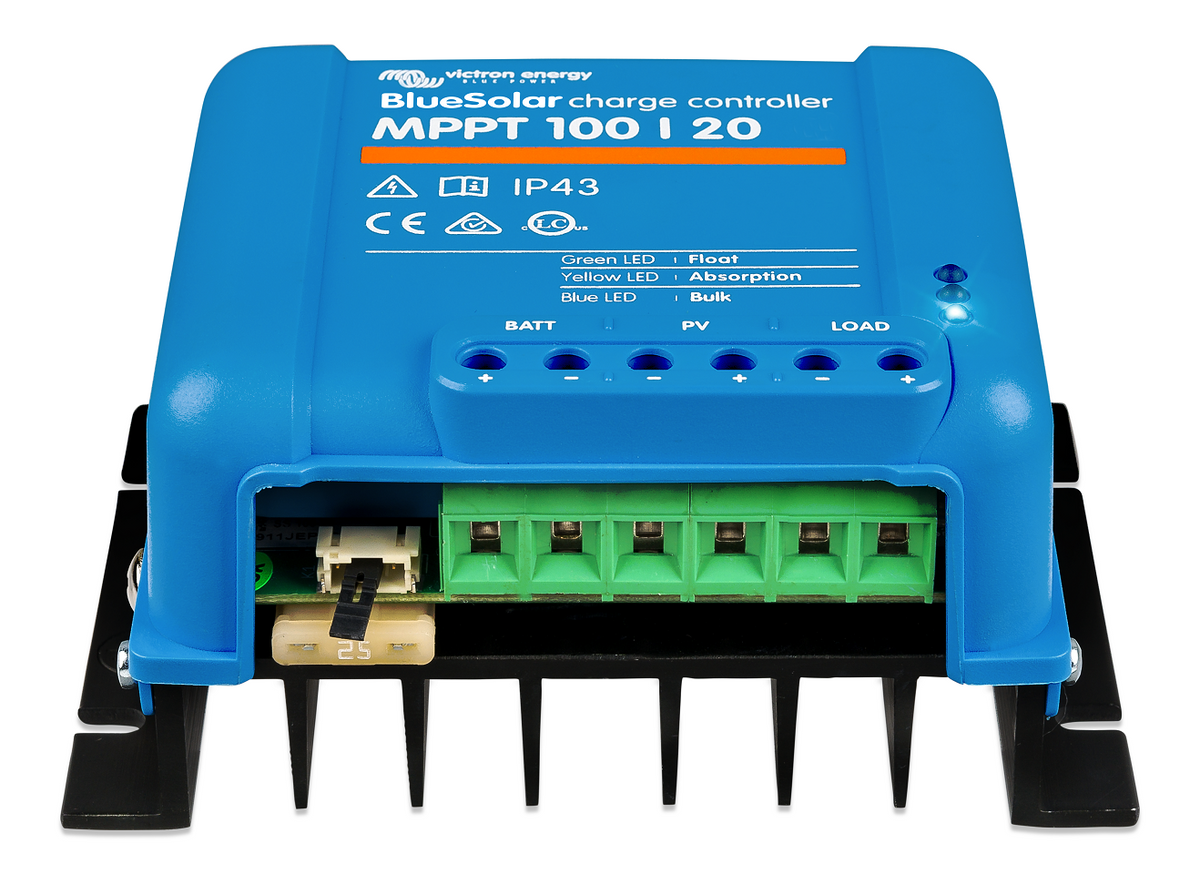

VICTRON MPPT BLUESOLAR 100/20 12V/24V/48V CHARGE CONTROLLER



PRODUCT CODE : SCC110020170R

(Up to 48V) - NO Built in Bluetooth

The VICTRON MPPT BLUESOLAR 100/20 is a powerful and reliable charge controller, designed to maximize energy harvest with its advanced Maximum Power Point Tracking technology. Its versatile design is suitable for 12 - 48V systems (Including Lithium), and when connected to a GX device via its VE.Direct port can be remotely and locally monitored through the GX device.

Note on load output: we do not recommend that fridges are run on this units load output, the internal current limiter will not allow most fridge compressors to start, the compressor start surge can be 7-10 times the run current and will be blocked by the current limiter.

Solar Charge Controller

A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology.

MPPT: Ultra-fast Maximum Power Point Tracking

By constantly monitoring the voltage and current output of your solar (PV) panels, MPPT technology ensures that every drop of available power is rinsed out of your panels, and harvested for storage. The advantage of this is most noticeable when the sky is partially clouded and light intensity is constantly changing.

Remote Monitoring And Control

If your installation is connected to the internet Victron Remote Management Portal (VRM) provides access to the full power of your MPPT, anytime, anywhere free to use.

Load Output

Over-discharge of the battery can be prevented by connecting all loads to the load output. The load output
will disconnect the load when the battery has been discharged to a pre-set voltage.
Alternatively, an intelligent battery management algorithm can be chosen: see Battery Life.
The load output is short circuit proof.
Some loads (especially inverters) can best be connected directly to the battery, and the inverter remote
control connected to the load output. A special interface cable may be needed, please see the manual.

Data Sheet Link Here
