PRODUCT CODE: PMR482602000

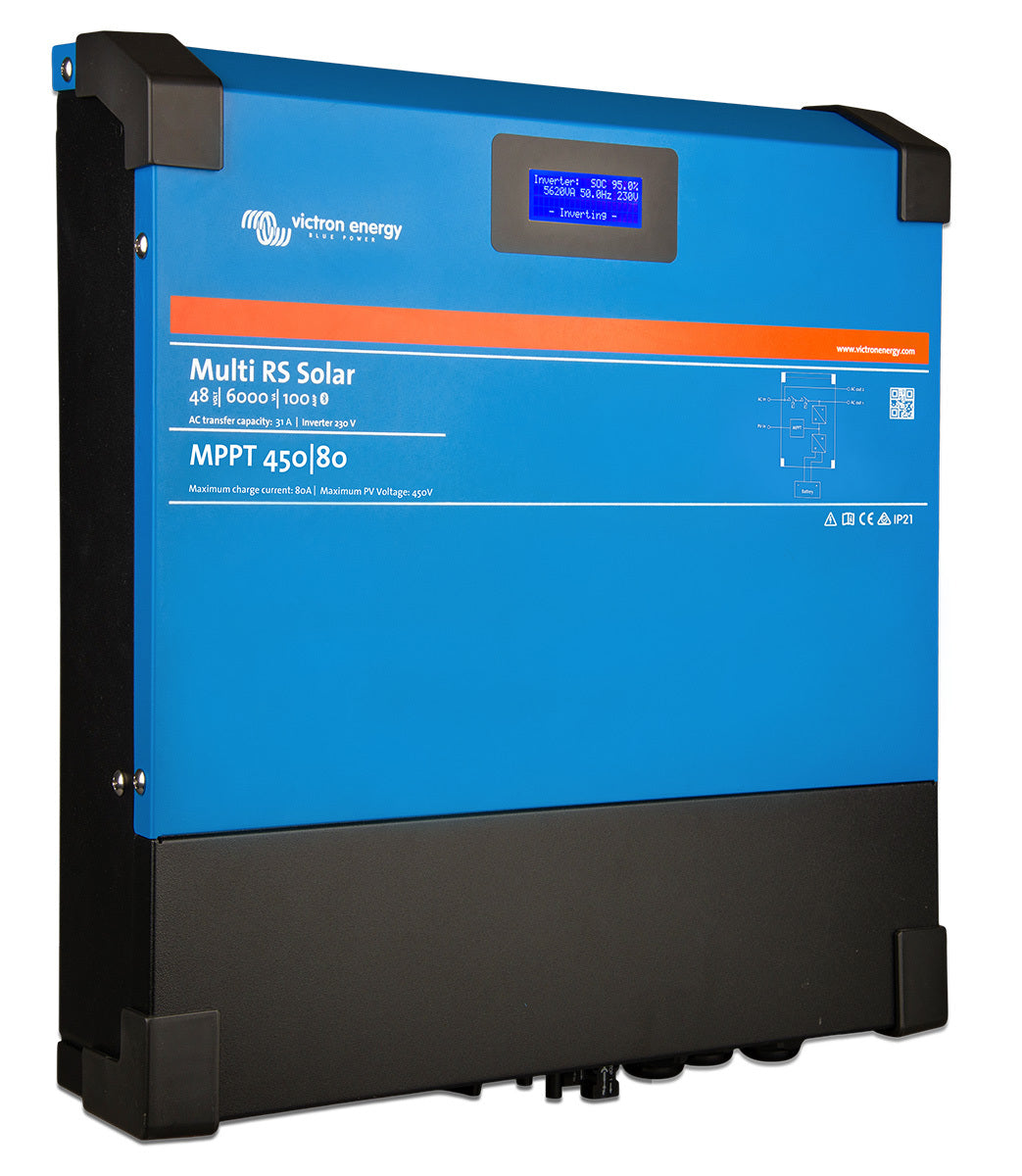

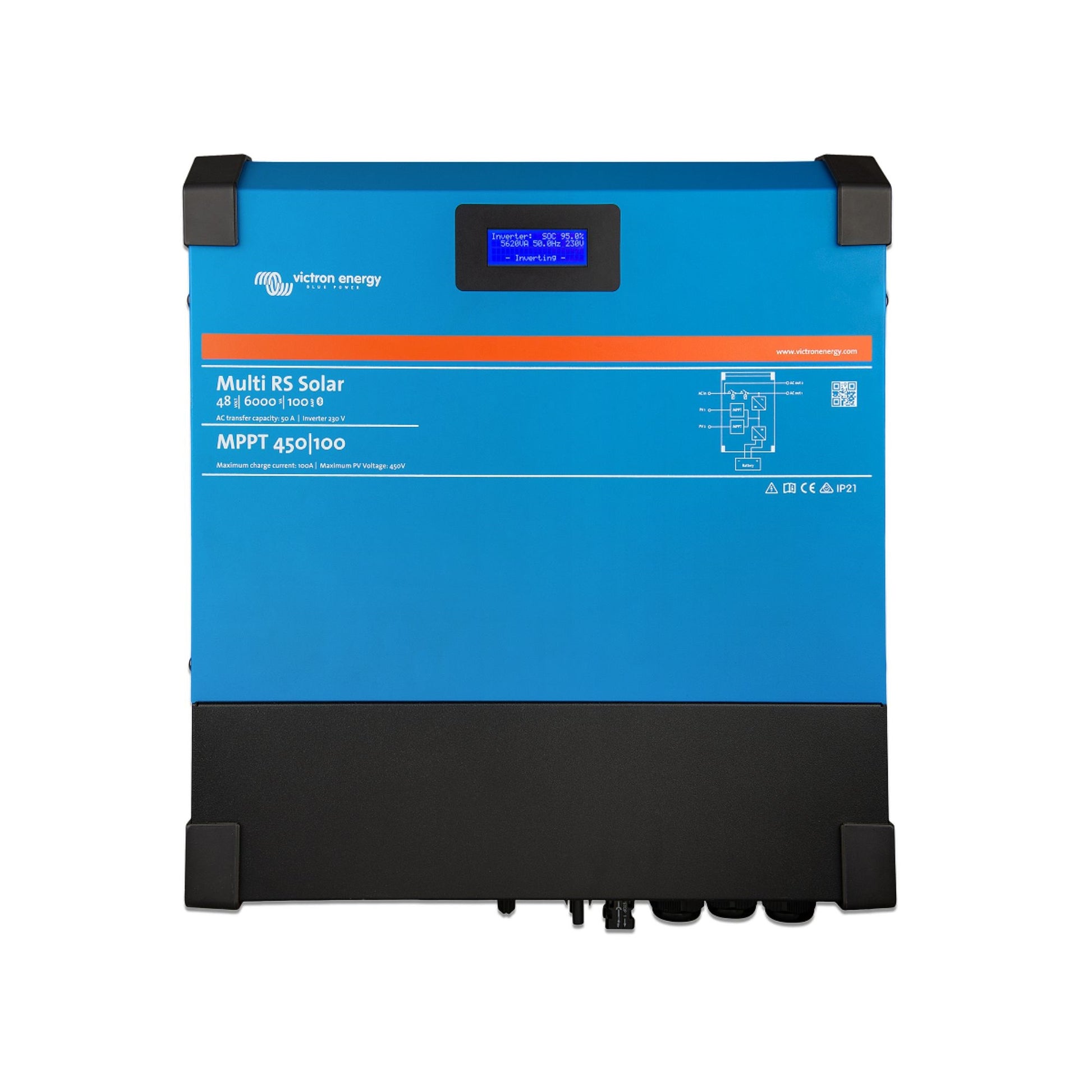

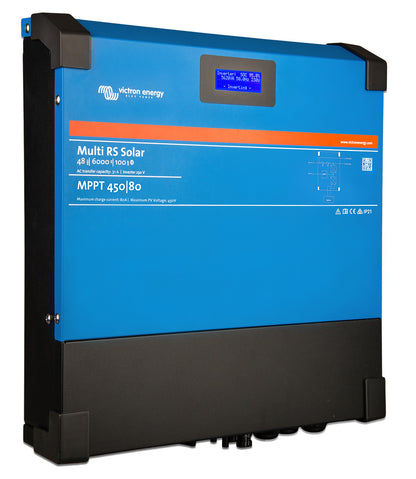

The Multi RS Solar 48/6000 is a 48V 6kVA Inverter/Charger with 450VDC 4kWp PV input.
Thanks to high frequency technology and a new design this powerful inverter weighs only 11kg. In addition to this it has an excellent efficiency, low standby power, and a very quiet operation. The display reads battery, inverter and solar parameters. The same parameters can be accessed with a smartphone or other Bluetooth enabled device, using the VictronConnect app.
Combination of an inverter, AC charger, and Solar MPPT
The inverter produces a perfect sinewave and is able to supply high powered appliances. It is also bi-directional, charging the battery when excess solar power or AC supply is available, or converting from the battery when it is needed.
Wide MPPT voltage range
80 – 450 VDC, with a 120 VDC PV start-up voltage.
Lightweight, efficient and quiet
Thanks to high-frequency technology and a new design this powerful inverter weighs only 11 kg. In addition to this, it has excellent efficiency, low standby power, and a very quiet operation.
Display, Bluetooth and VictronConnect app
The display reads battery, inverter and solar parameters. The same parameters can be accessed with a smartphone or other Bluetooth enabled device, using the VictronConnect app.
Extendable PV capacity, both AC-coupled and DC-coupled

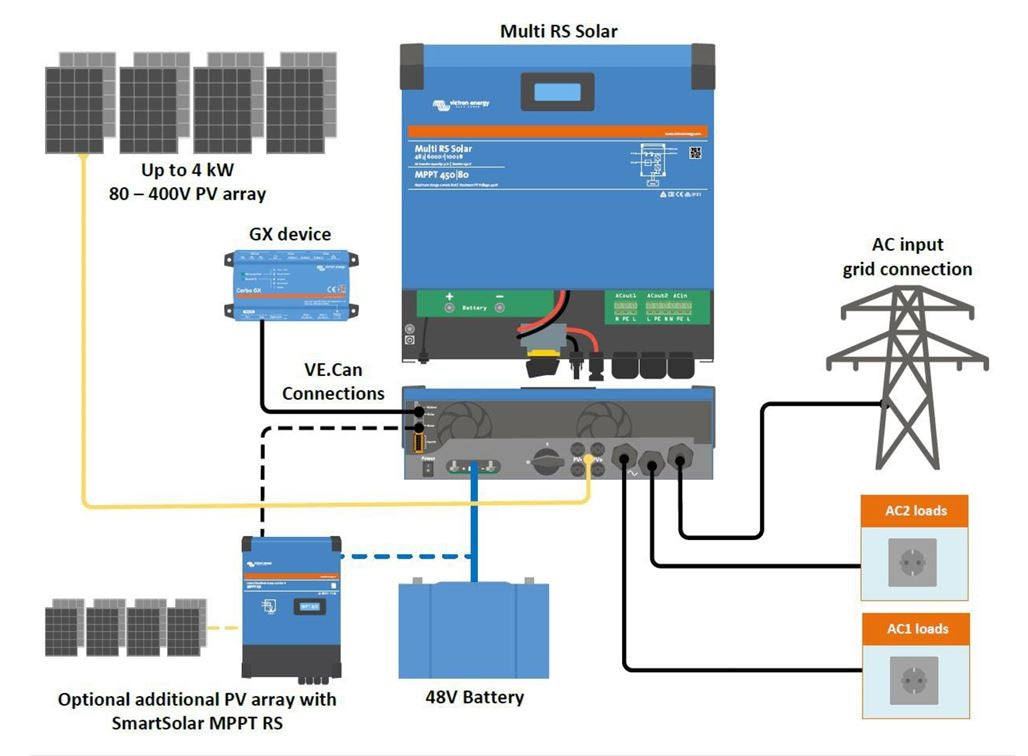

The integrated 4 kWp PV capacity can be extended by adding Solar Chargers to the system, for example, Victron's Smart Solar Charger range, including the Smart Solar RS models. When connected in a VE.Can network, all battery charging will operate synchronously and coordinated. Alternatively, the PV capacity can be extended by installing PV Inverters, of which the output power will be automatically controlled by the integrated Frequency Shift Power Control.
VE.Can connection to a GX device for system monitoring, data logging, and remote firmware updates. VE.Direct connection to a GlobalLink 520 for remote data monitoring.

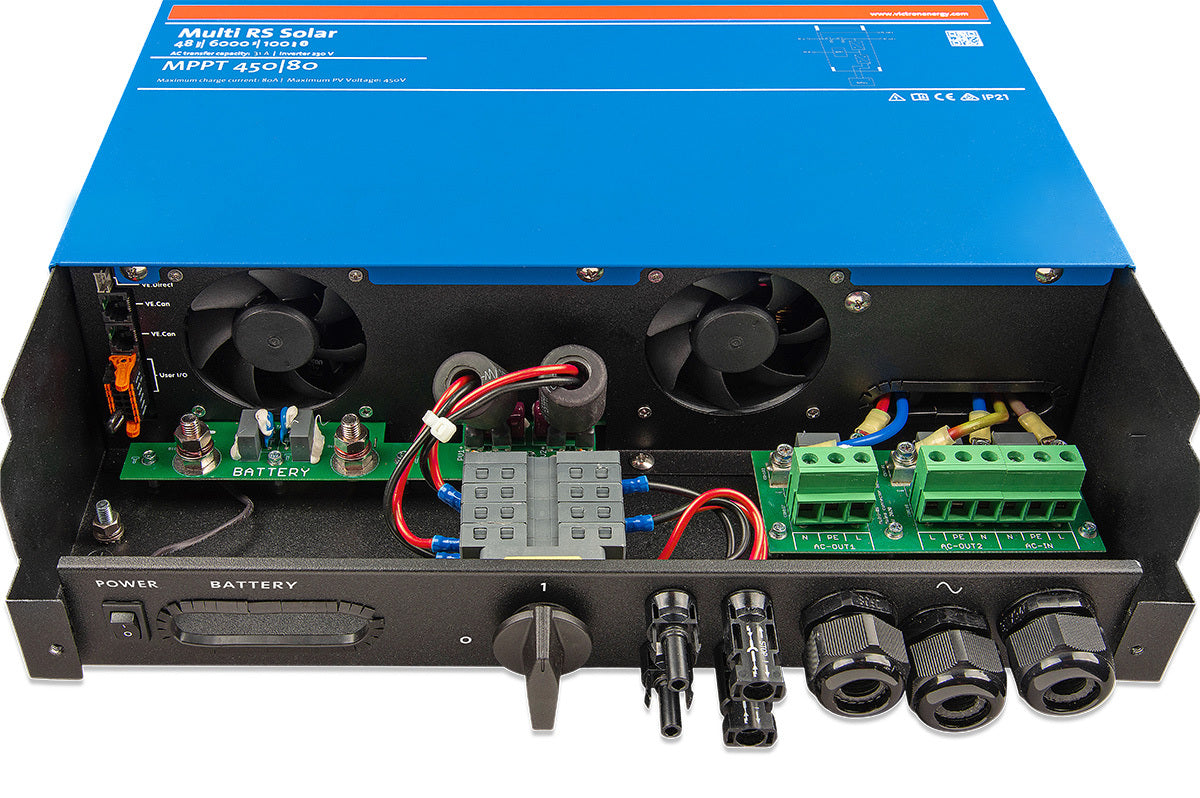

Programmable Relay, temperature sensor and voltage sensor connections. The remote input can also be configured to accept the Victron smallBMS.
When the Multi RS is connected to a GX device with an internet connection, you can access Victron's free remote monitoring website (VRM). This will display all your system data in a comprehensive graphical format. System settings can be changed remotely via the portal. Alarms can be received by e-mail.
