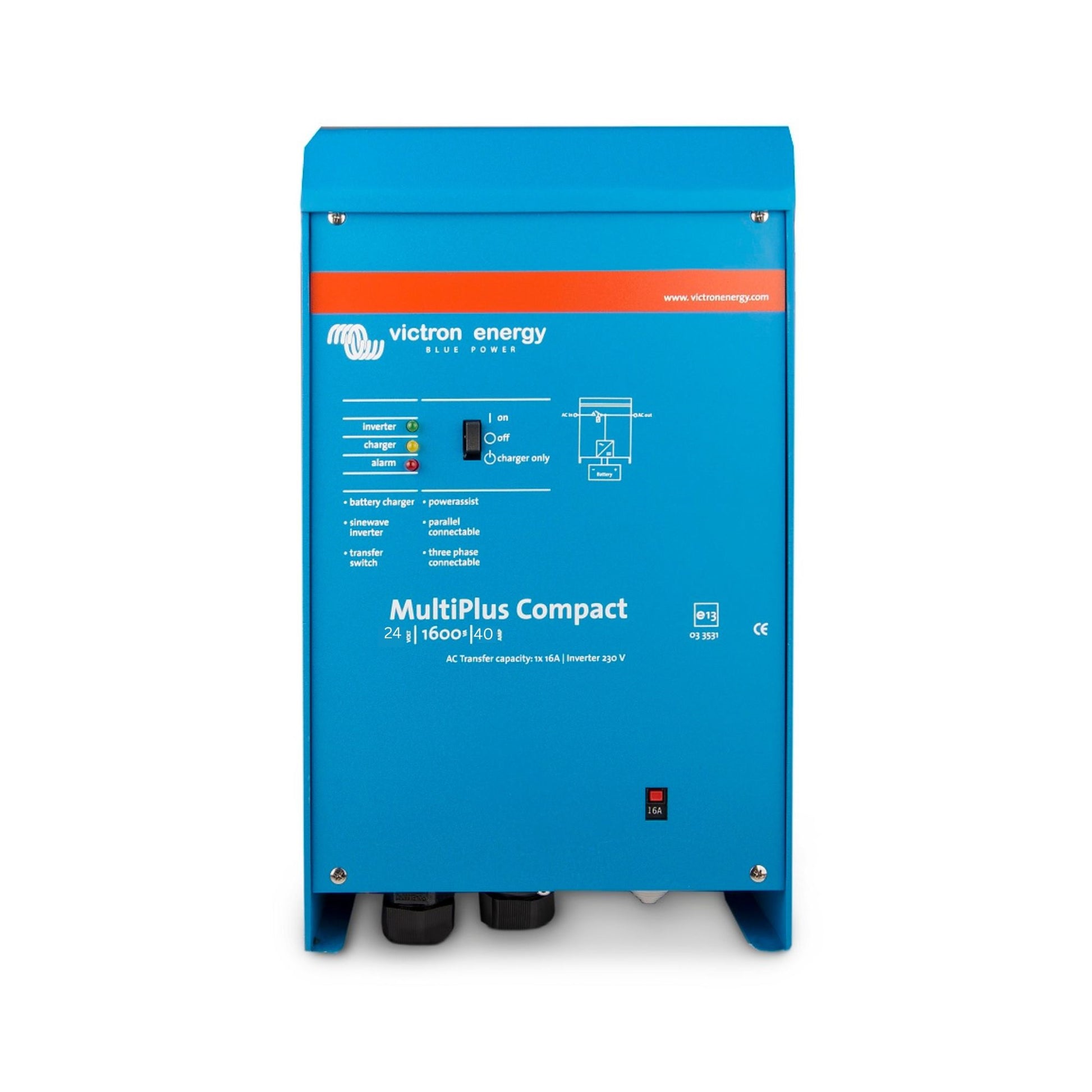

VICTRON MULTIPLUS COMPACT INVERTER/CHARGER 24/1600/40A - 16A TRANSFER SWITCH

Regular price
$1,269.20
Sale price
$1,269.20
Regular price
Sold out
Unit price
per
Tax included. Shipping

PRODUCT CODE : CMP241620000

Power Output

Cont.AC Power at 25°C (VA) 1600

Cont.Power at 25°C /40°C (W) 1000/900

Peak power (W) 2400

Data Sheet Link Here

Multifunctional

The MultiPlus, as the name suggests, is a combined inverter and charger in one elegant package. Its many features include a true sine wave inverter, adaptive charging, hybrid Power Assist technology, plus multiple system integration features.

Unique PowerAssist Feature

The MultiPlus will prevent overload of a limited AC source, such as a generator or shore power connection. First, battery charging will automatically be reduced when otherwise an overload would occur. The second level will boost the output of a generator or shore side supply with power taken from the battery.

Uninterrupted AC Power (UPS Function)

In the event of a grid failure or when shore or generator power is disconnected, the inverter within the Multi is automatically activated and takes over the supply of the connected loads. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption.

Virtually Unlimited Power Thanks To Parallel Operation

Up to 6 Multis can operate in parallel to achieve higher power output. Three phase or split phase operation is also possible. Please check Victron's Datasheets to see which models have paralleling, three-phase and split phase capabilities.

Remote Monitoring And Control

Monitor and control your MultiPlus and system or system's locally (LAN) or remotely via the internet from anywhere in the world, using the free VRM app and free VRM portal website. Access can be from a phone, tablet, laptop or PC for multiple operating systems. There is no end to the level of control, via the required Color Control GX or Venus GX, from adjusting your MultiPlus to setting a Geofence for-hire vehicles and more...

Enclosure:

Material & Colour: Aluminium (Blue RAL 5012)

Protection category: IP21

Weight: 10kg

Dimensions: 375mm (H) x 214mm (W) x 110mm (D)
