PRODUCT CODE : PMP242306000

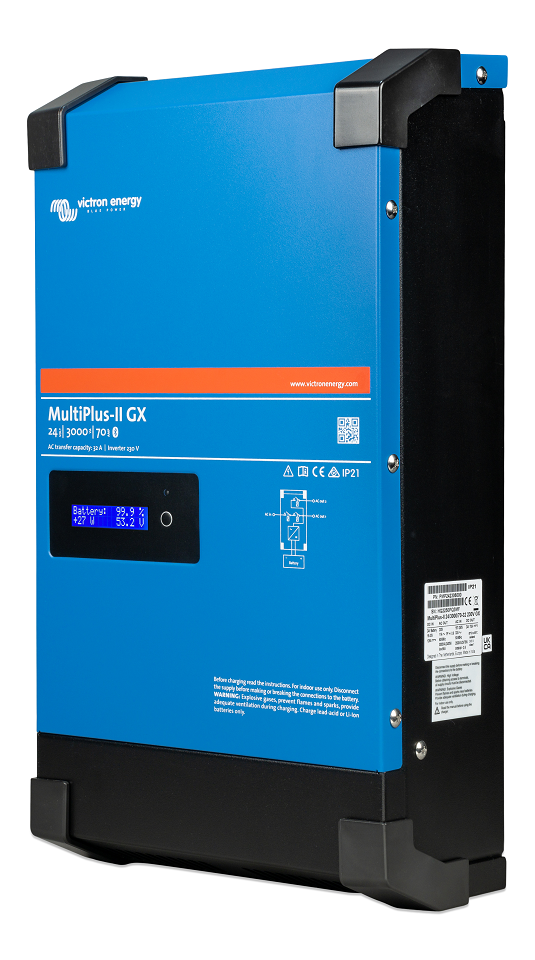

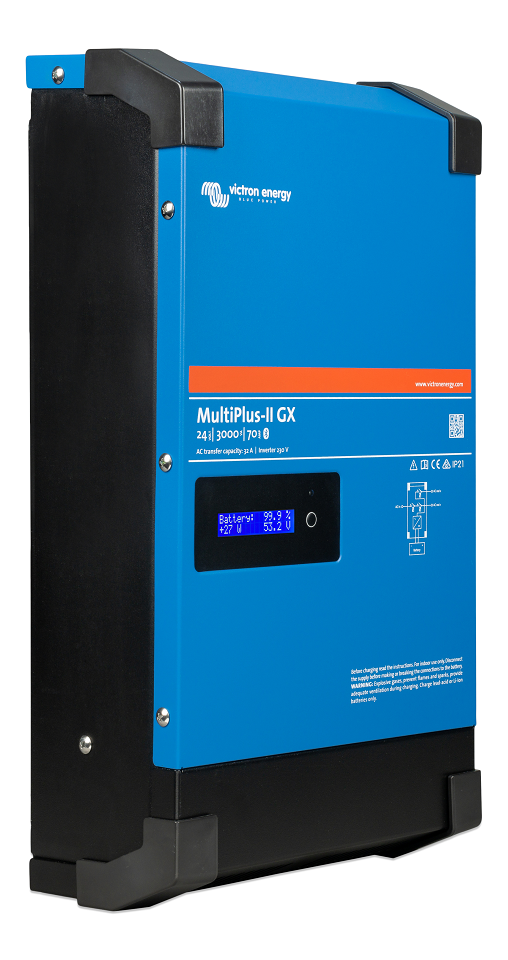

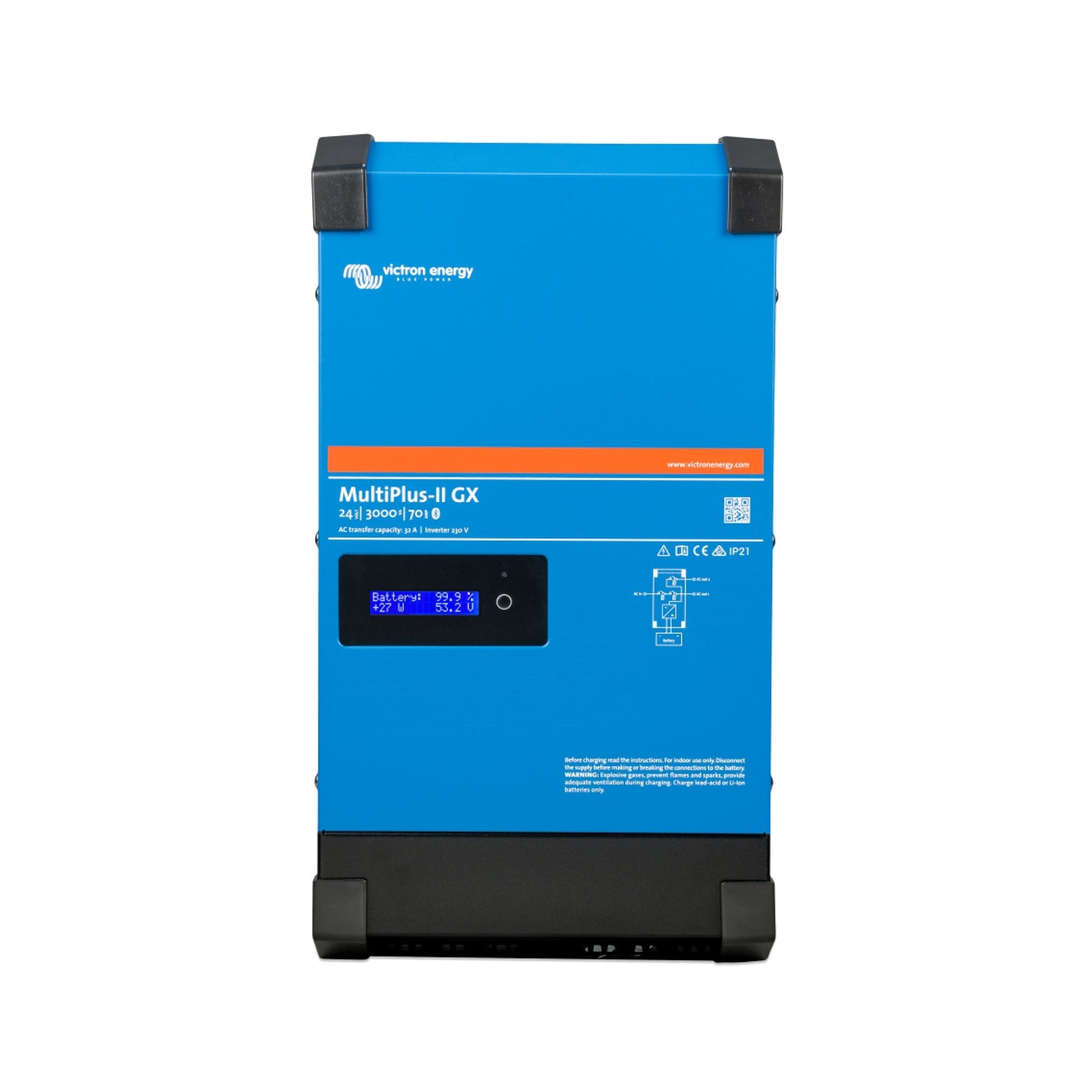

Note: 48V unit pictured for demonstration purposes.
A Multiplus II With LCD And GX Functionality
A Multiplus II GX integrates a Multiplus II Inverter charger and GX device with a 2 x 16 character display.
Display And Wifi
The display reads battery, inverter, and solar charge controller parameters. The same parameters can be accessed with a smartphone or other wifi enabled device.

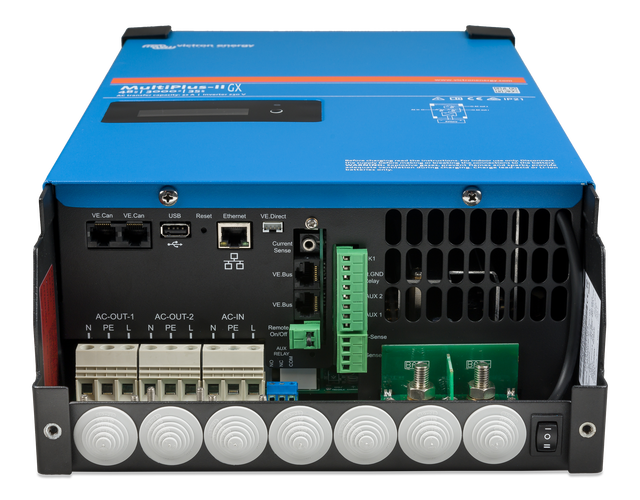

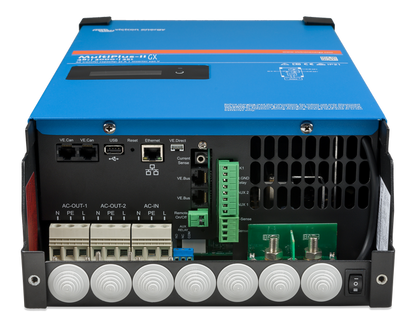

GX Device
The GX integrated device includes:
• A BMS-Can interface. (This can be used to connect to a compatible CAN-bus managed battery. Note that this not a
VE.Can compatible port.)
• A USB Port
• An Ethernet Port
• A VE.Direct Port
Applications
The Multiplus II GX is intended for applications where additional interfacing with other products and/or remote monitoring is required, such as on-grid or off-grid energy storage systems and certain mobile applications.
Parallel And Three Phase Operation
Only one GX unit is needed in case of parallel and three phase operation.
Weight: 19kg
Dimensions: 506mm (H) x 275mm (W) x 147mm (D)
