PRODUCT CODE : PMP482805000

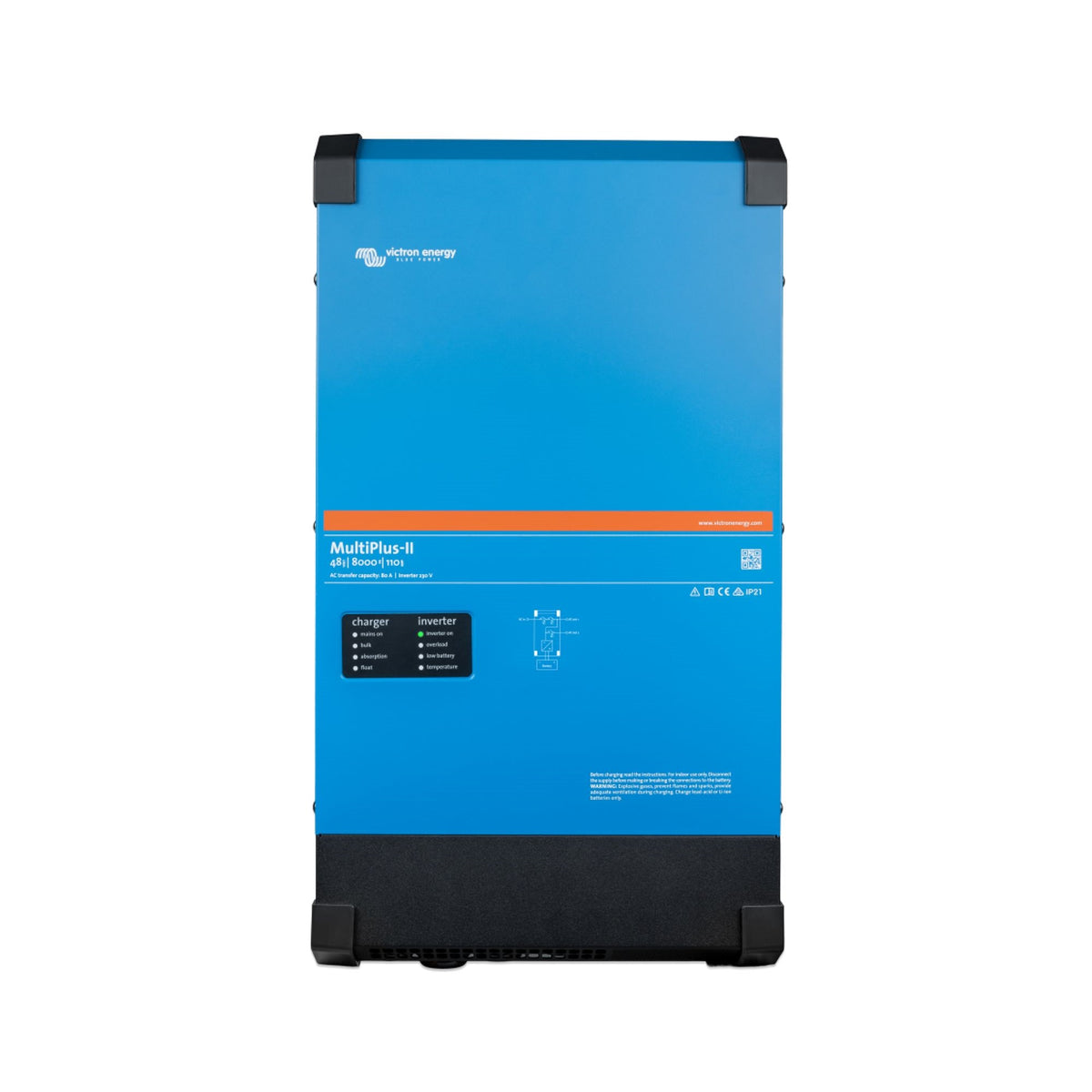

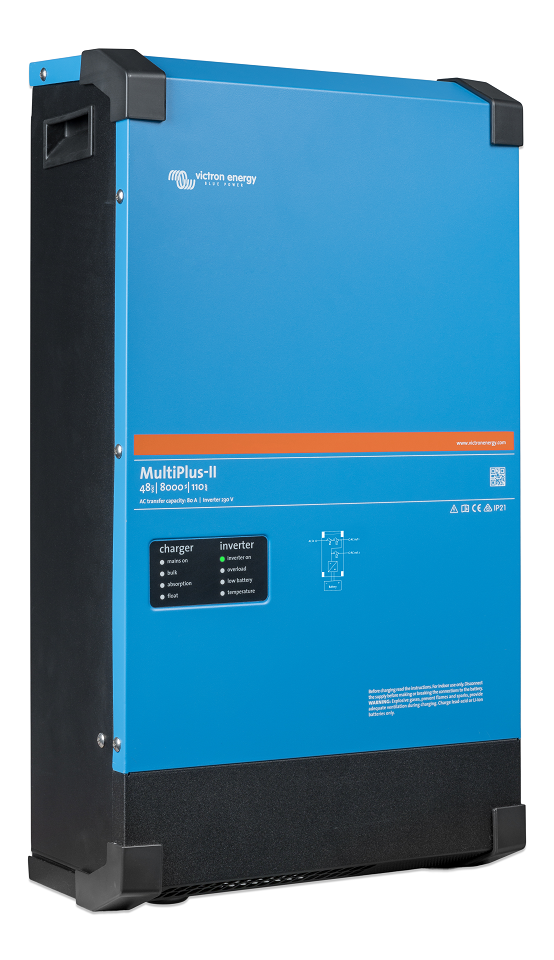

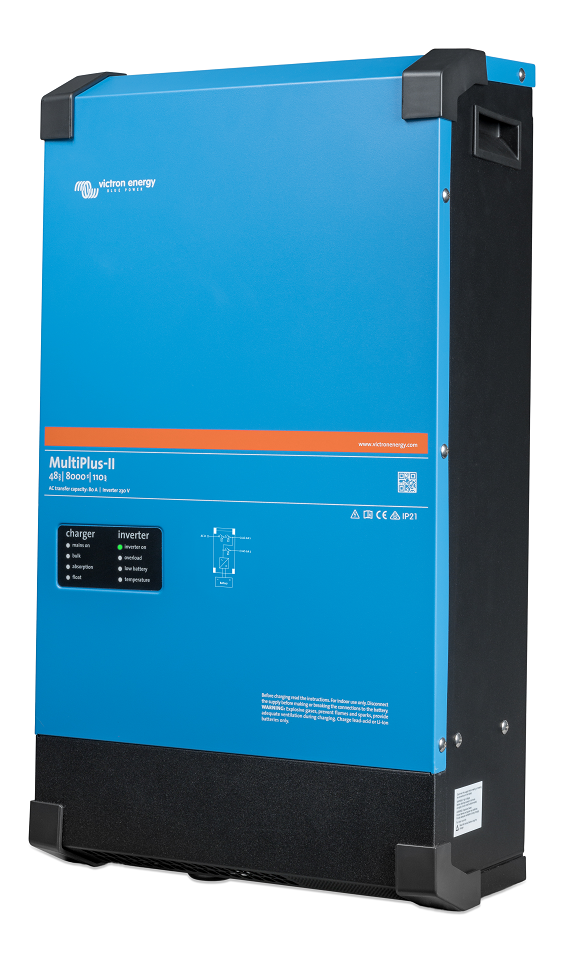

Note: the 5kva unit pictured for demonstration purposes.
The Multiplus II combines the functions of the Multiplus and the Multigrid. It has all the features of the Multiplus, plus an external current transformer option to implement PowerControl and PowerAssist to optimise self-consumption with external current sensing (Max 32A). It also has all the features of the Multigrid with built in anti-islanding and a long list of country approvals.
The Multiplus II will prevent overload of a limited AC source, such as a generator or shore power connection. First, battery charging will automatically be reduced when otherwise an overload would occur. The second level will boost the output of a generator or shore side supply with power taken from the battery.
ESS: Energy Storage Systems
The Multiplus II is the key component in a Victron ESS system, providing the flexibility to combine the MPPT Solar Chargers and Grid-tied PV inverters.
Uninterrupted AC Power (UPS Function)
In the event of a grid failure, or when shore or generator power is disconnected, the inverter within the Multi is automatically activated and takes over the supply to the connected loads. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption.
Remote Monitoring And Control
When coupled with a GX device (e.g Cerbo GX ) you can monitor and control your Multi and system(s) locally (LAN) or remotely via the Internet from anywhere in the world, using the Free VRM app and free VRM portal website. Access can be from a phone, tablet, laptop or PC for multiple operating systems. There is no end to the level of control, from adjusting your Multi to auto starting a back up generator and more.
Dimensions: (H) 642mm x (W) 363mm x (D) 206mm
