PRODUCT CODE : ASS030550200

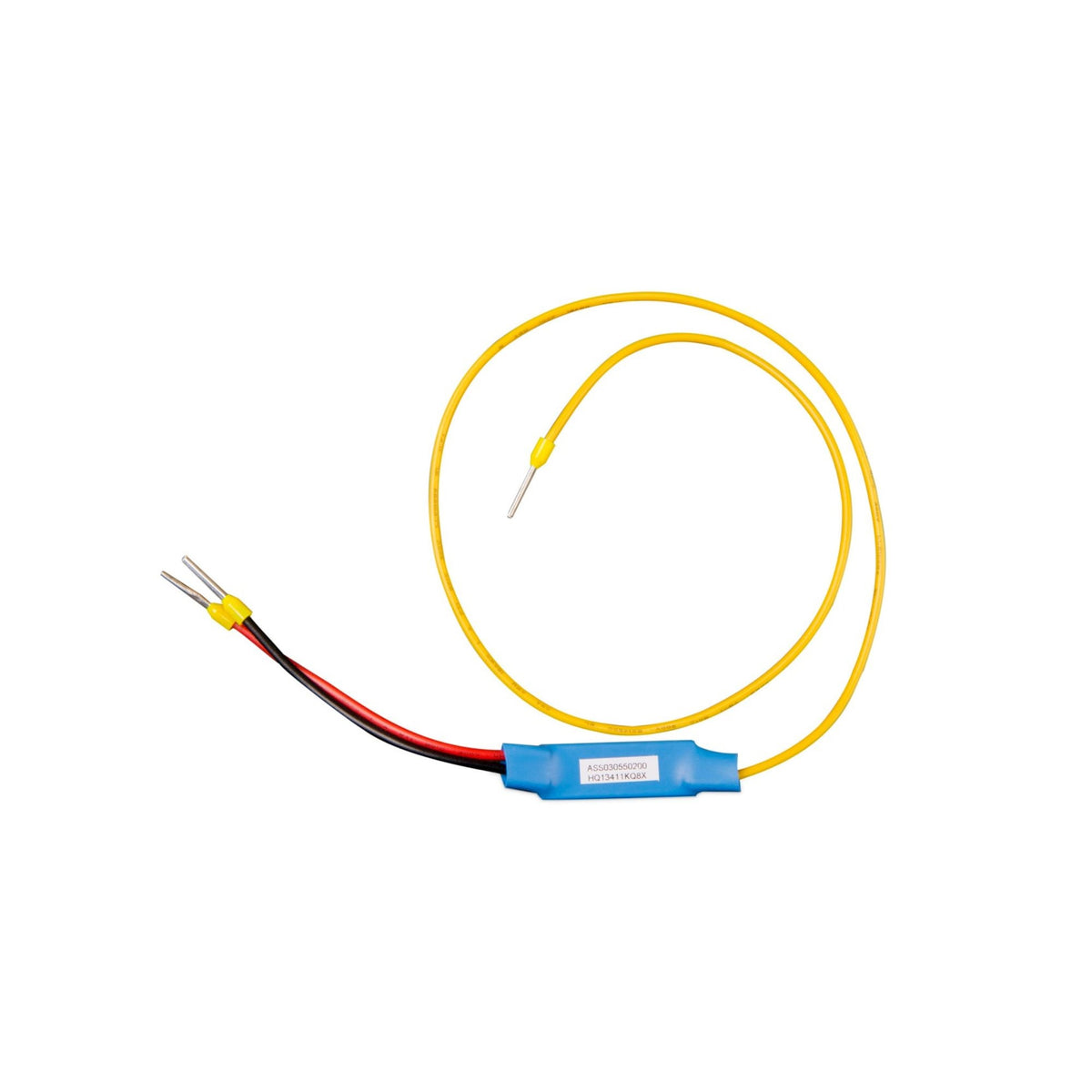

Use this cable to connect the following products to the VE.Bus BMS:
• Skylla-TG all models
• Battery protects models BP40i, BP60i and BP200i (all discontinued).
The cable translates the remote on/off driver logic from the VE.Bus BMS (normally high, and open circuit in case of an alarm) to the logic needed by above products: active pull down to switch off.
Cable Specifications:
Maximum input voltage: 70V
Maximum output voltage: 70V
Pull down: When input free floating (input will be pulled low by the remote on-off cable) or when the input voltage is less than approximately 2V.
Pull down current: Approximately 30mA (short circuit proof
