PRODUCT CODE : CIN121220000

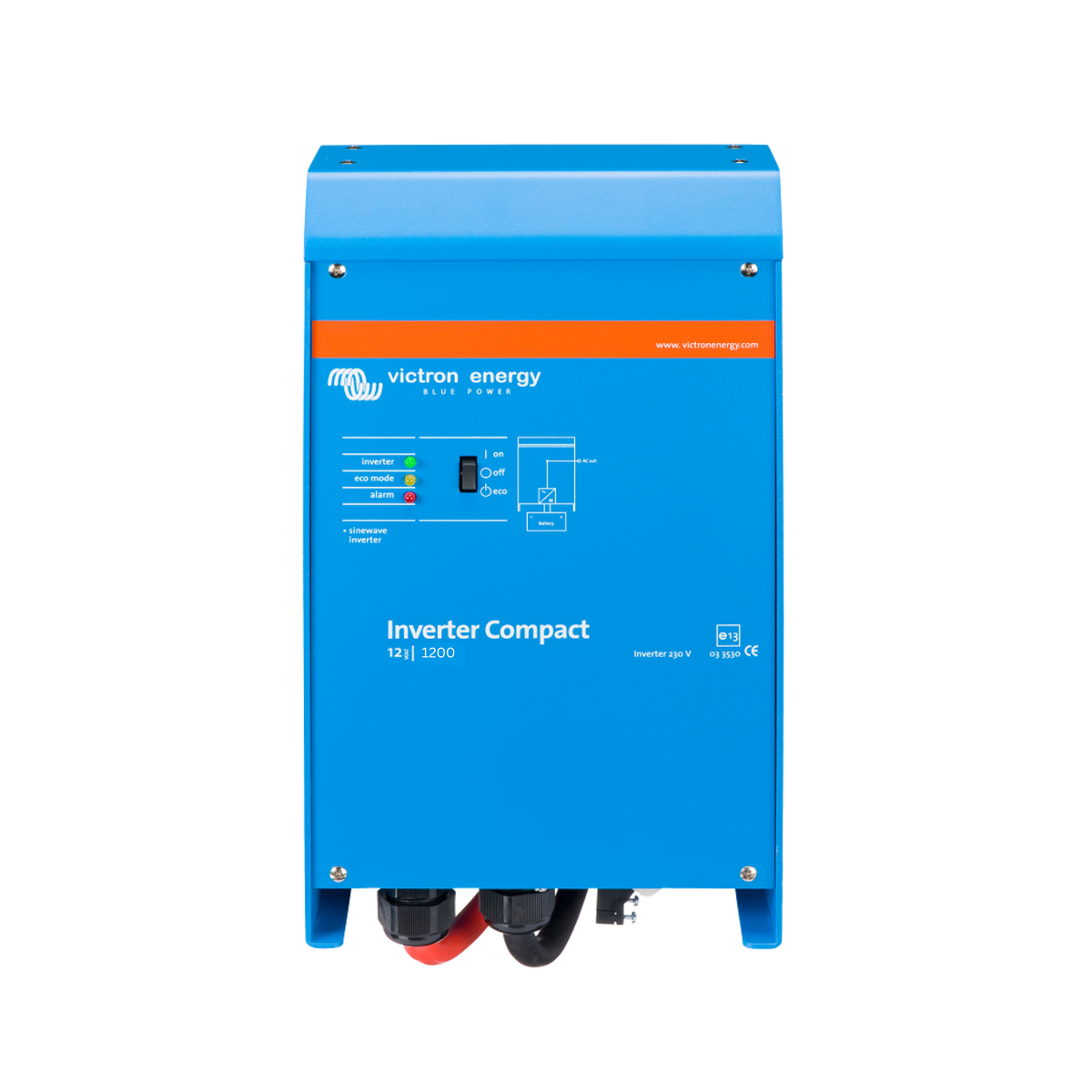

Note: 1600VA model shown for demonstration purposes.
Cont.AC Power at 25°C (VA) 1200
Cont.Power at 25°C/40°C (W) 1000/900
Peak Power (W) 2400
SinusMax - Superior Engineering
Developed for professional duty, the Phoenix range of inverters is suitable for the widest range of applications. The design criteria have been to produce a true sine wave inverter with optimized efficiency but without compromise in performance. Employing hybrid HF technology, the result is a top quality product with compact dimensions, light in weight and capable of supplying power, problem-free, to any load.
Extra Start-up Power
A unique feature of the SinusMax technology is very high start-up power. Conventional high-frequency technology does not offer such extreme performance. Phoenix Inverters, however, is well suited to power up difficult loads such as refrigeration compressors, electric motors, and similar appliances.
Virtually Unlimited Power Thanks To Parallel And 3-Phase Operation Capability
Up to 6 units inverters can operate in parallel to achieve higher power output. Six 24/5000 units, for example, will provide 24kW/30KVA output power. Operation in 3-phase configuration is also possible.
To Transfer The Load To Another AC Source: The Automatic Transfer Switch
If an automatic transfer switch is required, we recommend using the MultiPlus inverter charger instead. The switch is included in these products and the charger function of the MultiPlus can be disabled. Computers and other electronic equipment will continue to operate without disruption because the Multiplus features a very short switchover time (20 milliseconds).
All models have an RS-485 port. All you need to connect to your PC is Victron's MK3-USB VE.Bus to USB interface. Together with VEConfigure software, which can be downloaded free of charge from Victron's website, all parameters of the inverters can be optimized. This includes output voltage and frequency, over and under voltage settings and programming the relay. This relay can, for example, be used to signal several alarm conditions or to start a generator. The inverters can also be connected to VE.Net, the power control network of Victron Energy, or to other computerized monitoring control systems.
Material and Colour: Aluminium (Blue RAL 5012)
Protection category: IP21
Battery connection: 1.5m battery cable
230V AC connection: G-ST18i plug
Dimensions: 375mm (H) x 214mm (W) x 110mm (D)
