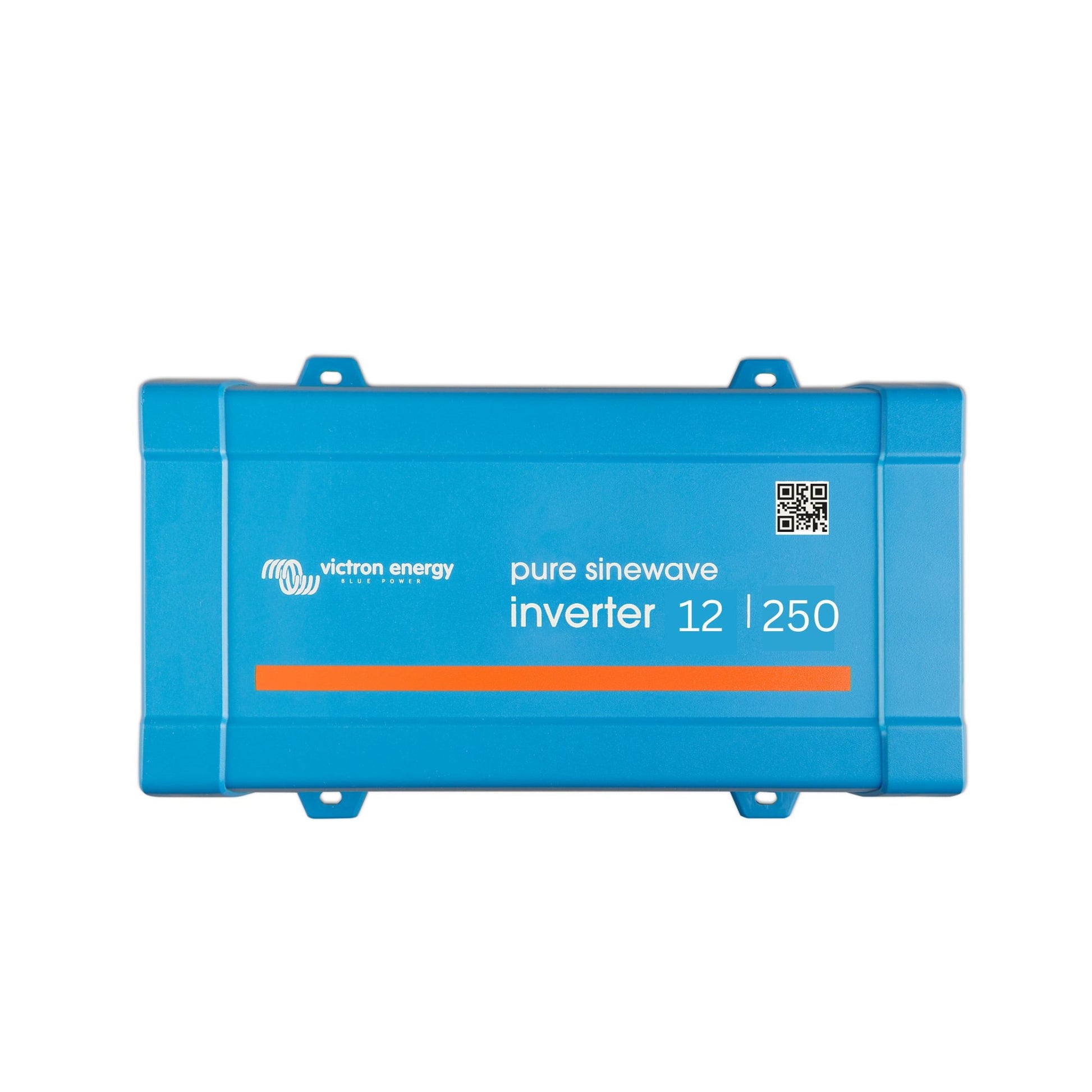

VICTRON PHOENIX VE.DIRECT 12V, 250VA-200W INVERTER

PRODUCT CODE : PIN122510300

Data Sheet Link Here

Inverter

Inverters allow you to power domestic equipment - requiring 230V/120V AC using 'leisure' or 'automotive' batteries rated at 12V,24V or 48V DC.

Highly Reliable - Built For The Years Ahead

Phoenix inverters are built to last. They feature sophisticated full-bridge and toroidal transformer topology - which is suitable for powering sensitive electronics. They are overload, temperature, and short-circuit protected.

Full Bursts - High Peak Output

Some electronic devices - particularly those who have an electric motor - require short bursts of energy on start-up which is much higher than their rated power consumption. No problem - the Phoenix inverter has industry leading peak-power capability.

Intelligent Alarms, Shut-downs, And Restarts

A high power draw on start-up can trigger false alarms and shut-downs. The Phoenix makes allowance for this and only shuts down in cases of persistent overload. Intelligently, shut-downs will be followed by a series of restarts to eliminate 'false alarms'.

Conserve Power With ECO-Mode

In ECO mode the inverter shuts down when no power is required. Phoenix senses the output socket every couple of seconds and automatically turns back on if power is again required.

User-Configurable Settings

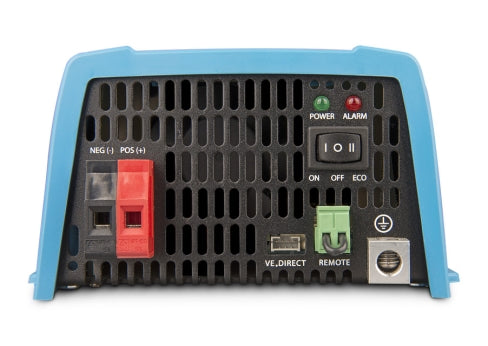

Phoenix has a communication port providing access to status information, alarms, and automatic user-configurable low voltage shutdowns. Shutdowns will be followed by a series of intelligent re-start attempts. User settings can be accessed from your computer or mobile device via the free VictronConnect App.

Enclosure:

Material and Colour: Steel chassis and plastic cover (Blue RAL 5012)

Battery connection: Screw terminals

Maximum cable cross section: 10mm²/AWG8

Weight: 2.4kg

Dimensions: 86mm (H) x 165mm (W) x 260mm (D)
