VICTRON ENERGY SMARTSOLAR MPPT 150/45 CHARGE CONTROLLER Energy Connections

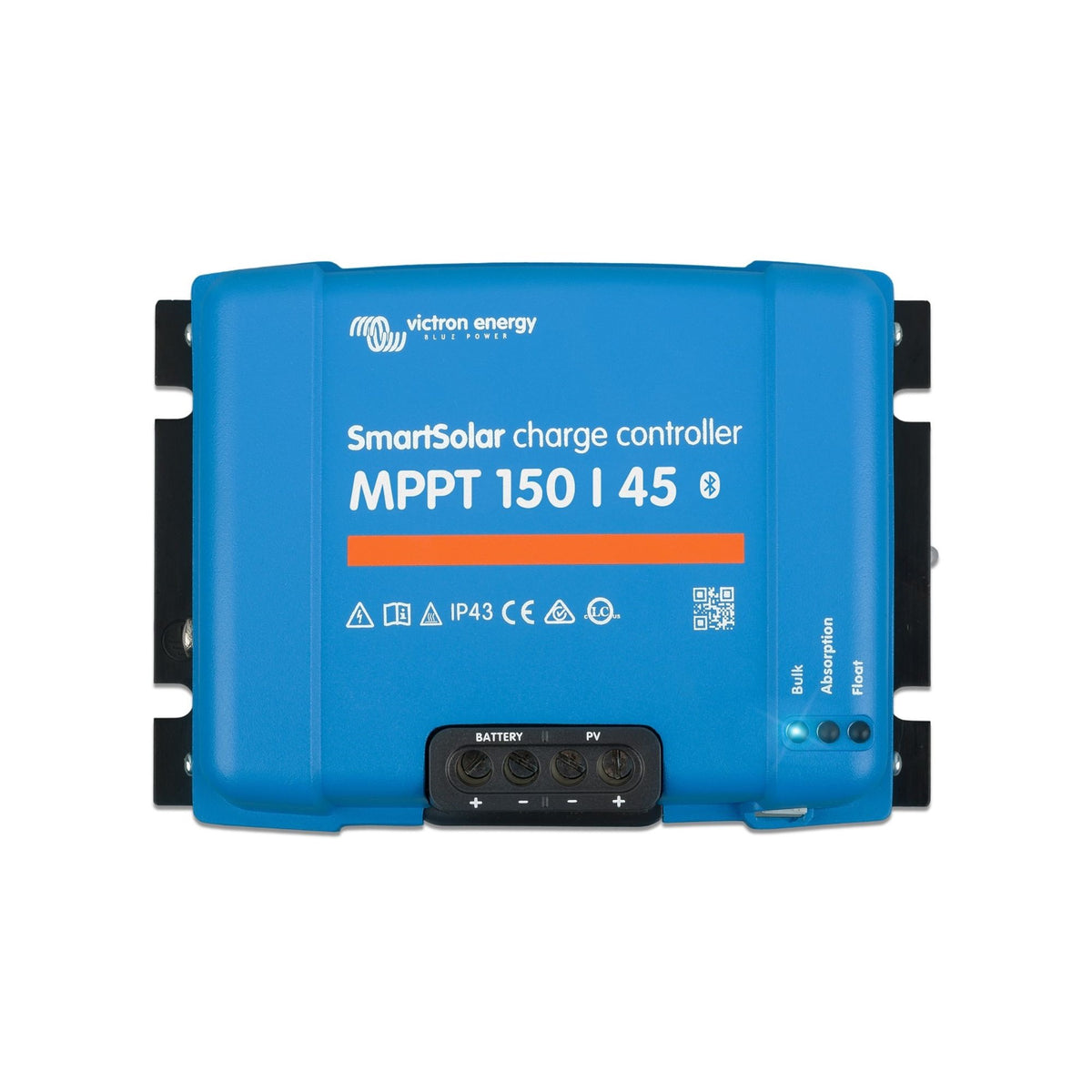

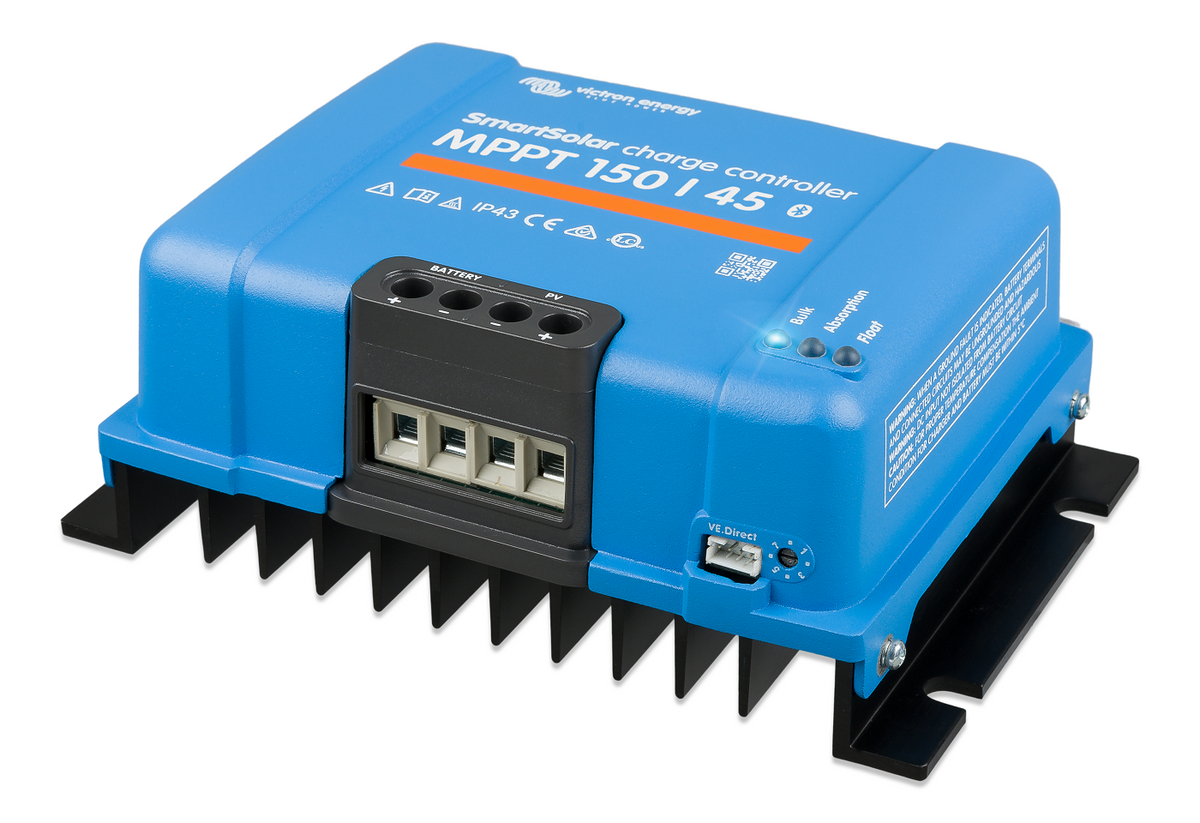

VICTRON ENERGY SMARTSOLAR MPPT 150/45 CHARGE CONTROLLER

Regular price
$584.40
Sale price
$584.40
Regular price
$649.44
Sold out
Unit price
per
Tax included. Shipping calculated at checkout.

PRODUCT CODE : SCC115045212

The Smartsolar 150/45 is set to replace the 150/45 -tr and MC4 terminal charge controllers. This new charge controller is more compact and lighter in weight.

Please Note: This does not have the option of the plug-in display.

Please Note: Under Australian Standards if the DC input voltage exceeds 120V this unit must be installed by a qualified licenced A Grade electrician.

Data Sheet Link Here

Solar Charge Controller

A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest fastest technology, Smartsolar maximises this energy harvest, driving it intelligently to achieve full charge in the shortest possible time. Smartsolar maintains battery health, extending its life.

The Smartsolar charge controller will even recharge a severely depleted battery. It can operate with a battery voltage as low as 0 volts, provided the cells are not permanently sulphated or otherwise damaged.

MPPT: Ultra-fast Maximum Power Point Tracking

By constantly monitoring the voltage and current output of your solar (PV) panels, MPPT technology ensures that every drop of available power is rinsed out of your panels, and harvested for storage. The advantage of this is most noticeable when the sky is partially clouded, and light intensity is constantly changing.

Remote Monitoring And Control

Remotely control and monitor the extensive features of your Smartsolar MPPT charger with built in Bluetooth by pairing it with your smartphone or other device via VictronConnect. If your installation is connected to the internet with a GX device, the Victron remote management portal (VRM) provides access to the full power of your MPPT, anytime, anywhere; both VictronConnect and the VRM are free to use. For remote installations - even when there is no interent connection nearby - you may be able to monitor your MPPT by connecting to the GlobalLink 520.

Dimensions: (H) 130mm x (W) 186mm x (D) 70 mm

Weight: 1.25kg
