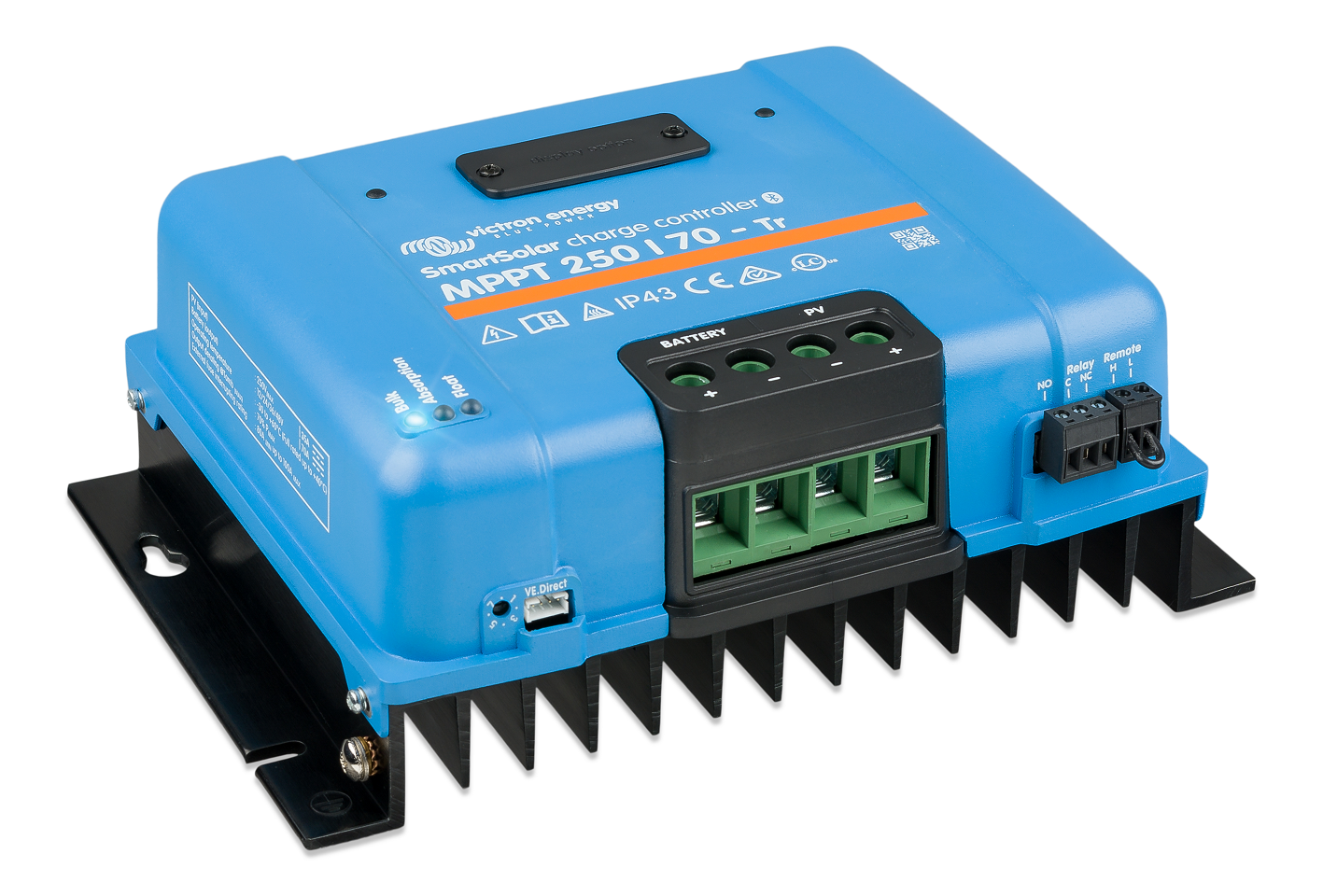

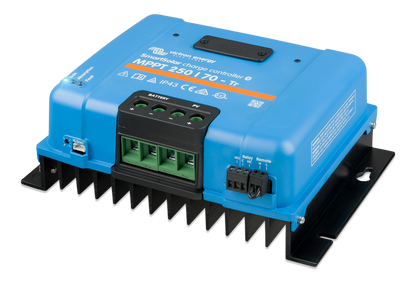

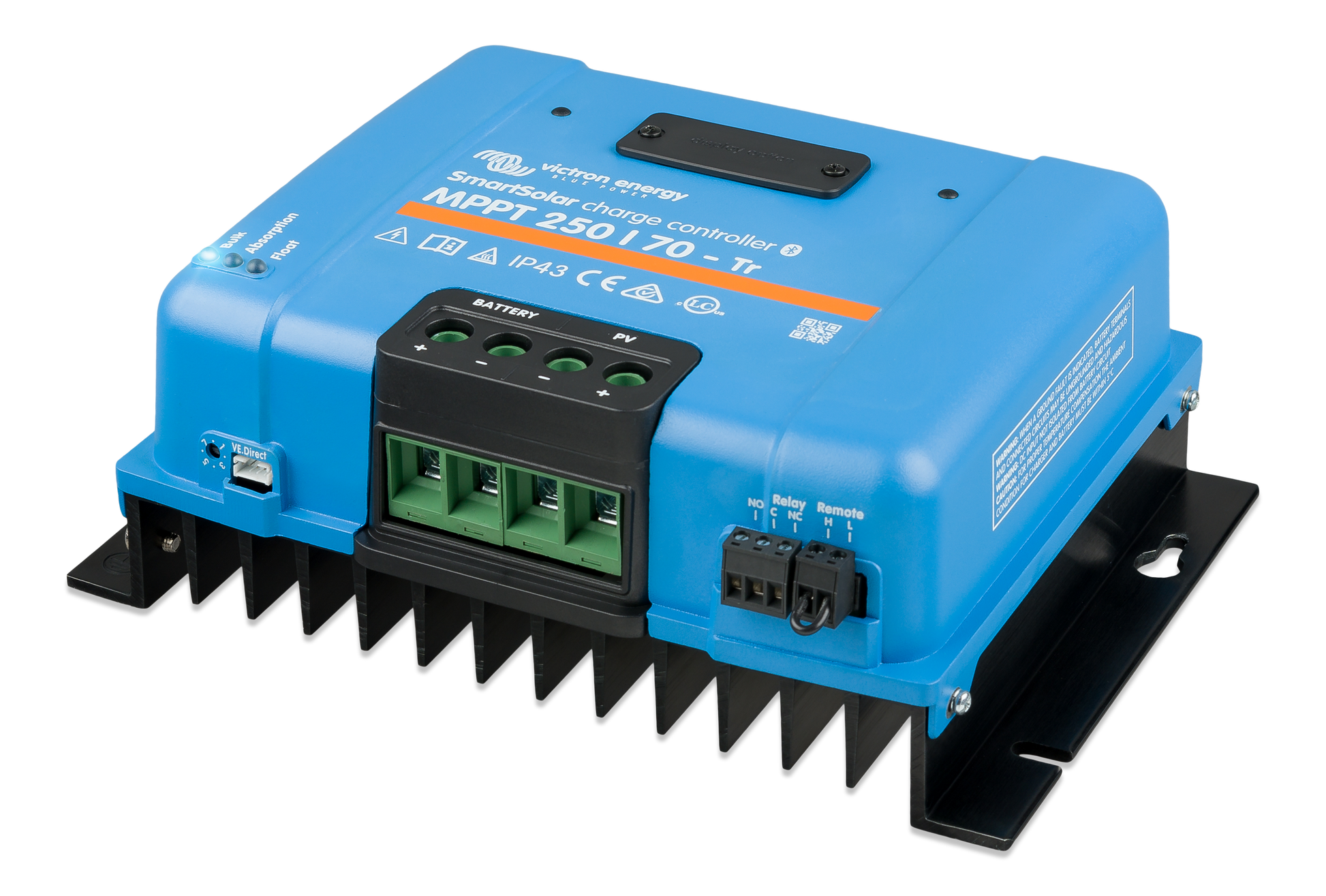

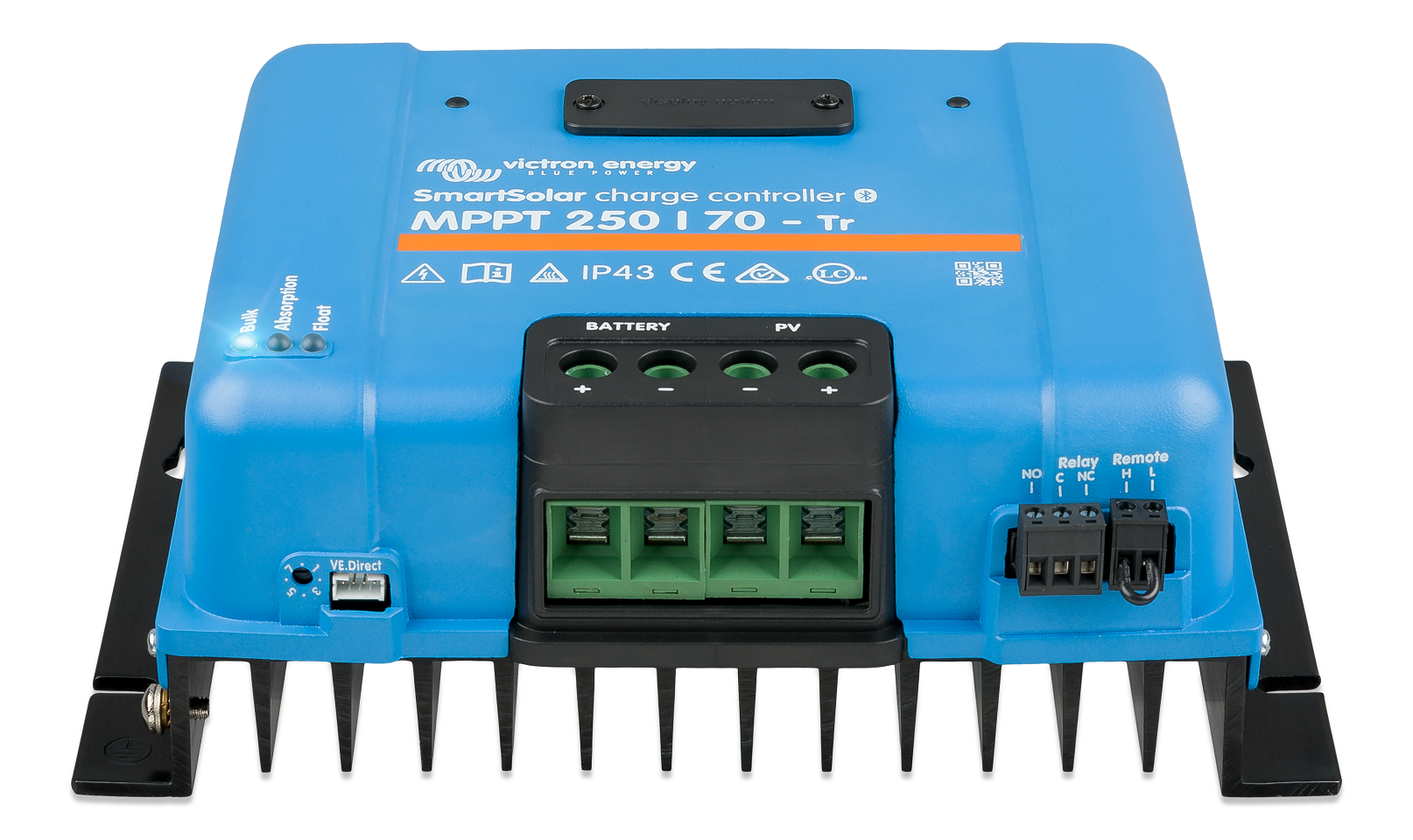

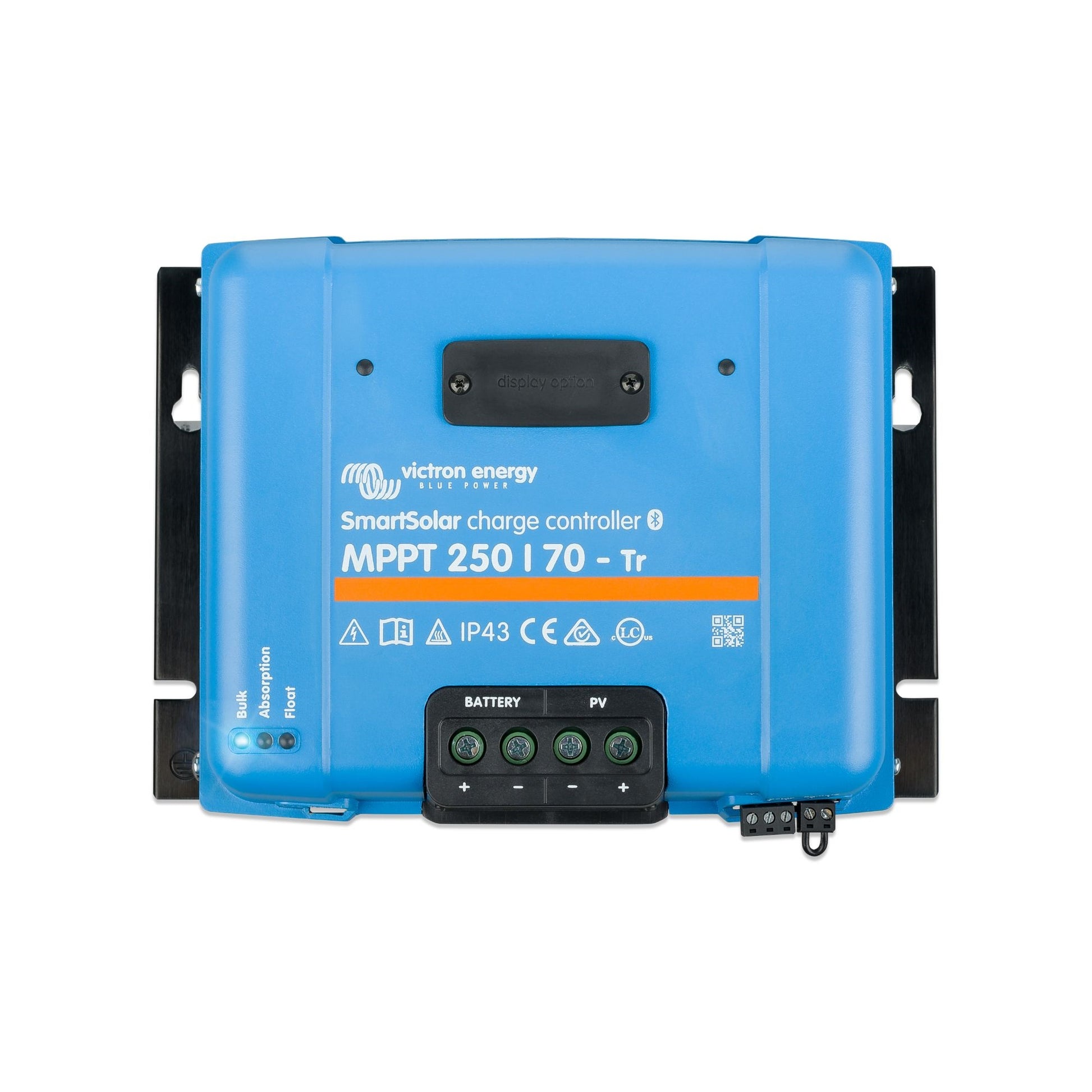

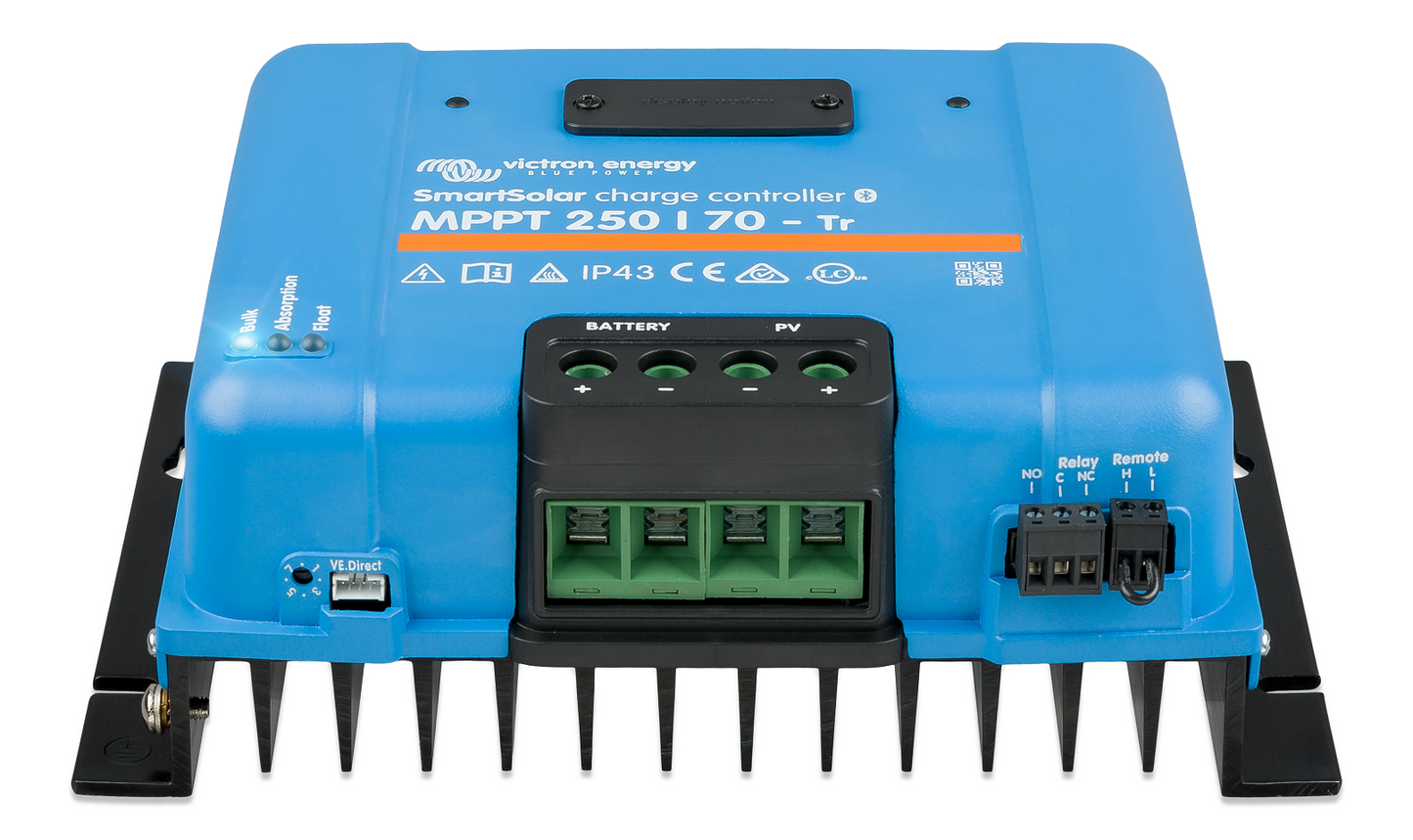

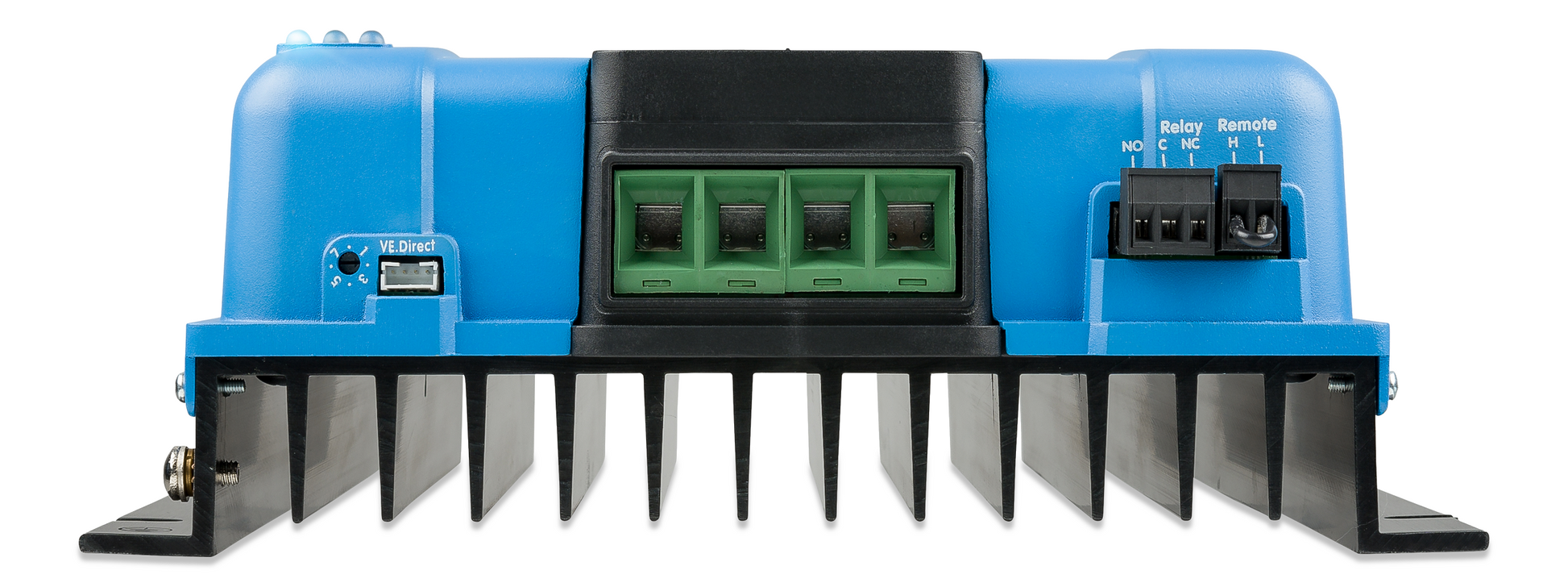

VICTRON SMARTSOLAR MPPT 250/70 CHARGE CONTROLLER Energy Connections

VICTRON SMARTSOLAR MPPT 250/70 CHARGE CONTROLLER

Regular price
$811.85
Sale price
$811.85
Regular price
Sold out
Unit price
per
Tax included. Shipping

PRODUCT CODE : SCC125070221

Please Note: Under Australian Standards if the DC input voltage exceeds 120V this unit must be installed by a qualified licenced A Grade electrician.

 (12/24/36/48V) - Built in Bluetooth

Data Sheet Link Here

Solar Charge Controller

A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, SmartSolar maximizes this energy-harvest, driving it intelligently to achieve the full charge in the shortest possible time. SmartSolar maintains battery health, extending its life.

MPPT: Ultra-fast Maximum Power Point Tracking

By constantly monitoring the voltage and current output of your solar (PV) panels, MPPT technology ensures that every drop of available power is rinsed out of your panels, and harvested for storage. The advantage to this is most noticeable when the sky is partially clouded, and light intensity is constantly changing.

Remote Monitoring And Control

Remotely control and monitor the extensive features of your SmartSolar MPPT charger with built-in Bluetooth by pairing it with your smartphone or other devices via the VictronConnect App. If your installation is connected to the internet Victron Remote Management Portal (VRM) provides access to the full power of your MPPT, anytime, anywhere; both devices are free to use. For remote installations - even when there is no internet connection or phone signal nearby - you may be able to monitor your MPPT by Bluetooth-pairing it with a LoRaWAN (long-range wide area network) device, available optionally.

Optional SmartSolar Control Display

By adding the SmartSolar Control Display you will be able to check the status of your charger and battery-storage at a glance. Simply plug it into the face of your MPPT charger to provide you with real-time monitoring and set-up capabilities.

Enclosure:

Colour: Blue (RAL 5012)

 Protection category: IP43 (electronic components) IP22 (connection area)

Weight: 3kg

Dimensions: 185mm (H) x 250mm (W) x 95mm (D)
