PRODUCT CODE : SCC075015060R
(12/24V) - Built in Bluetooth
Note on load output: we do not recommend that fridges are run on this units load output, the internal current limiter will not allow most fridge compressors to start, the compressor start surge can be 7-10 times the run current and will be blocked by the current limiter.

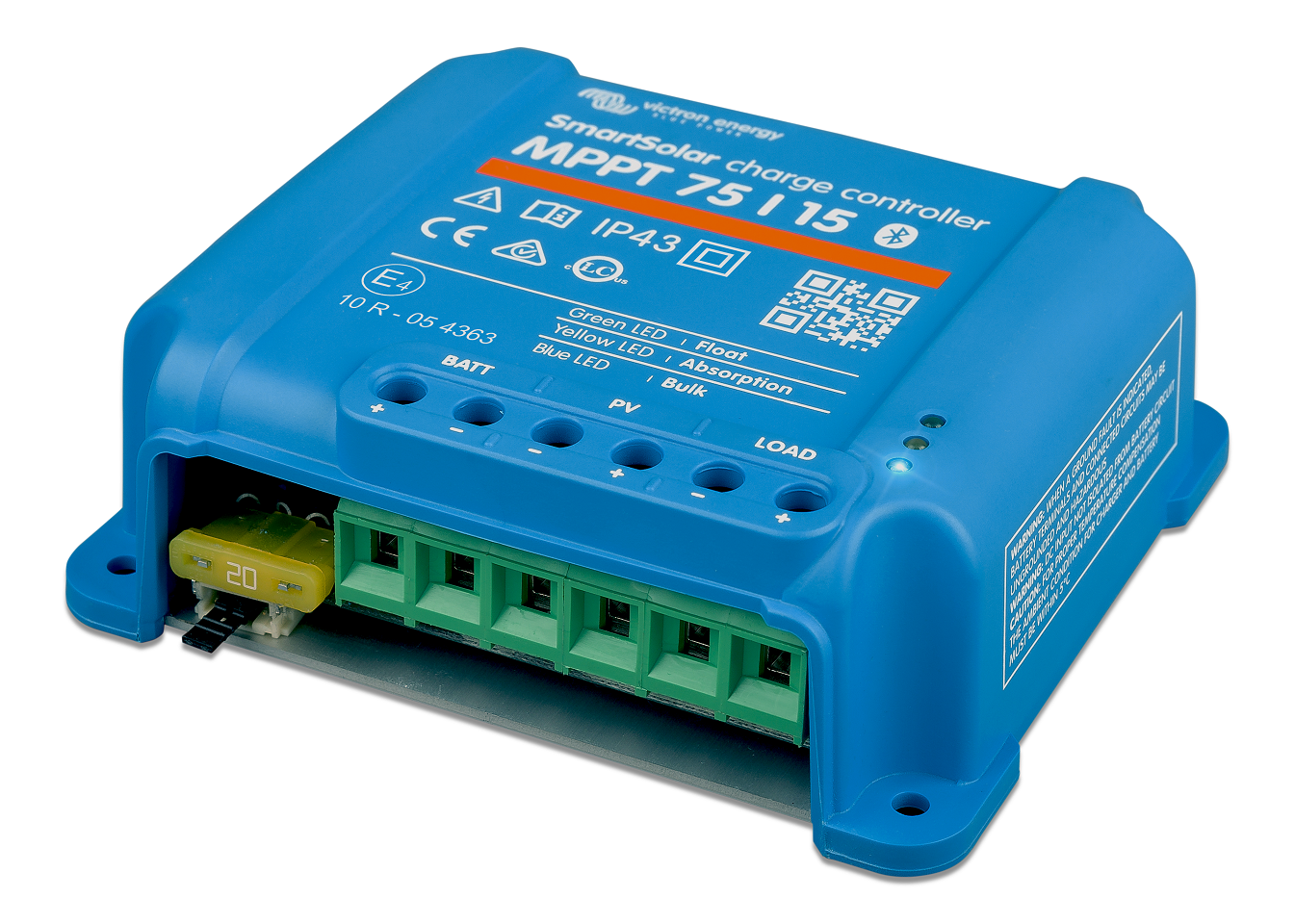

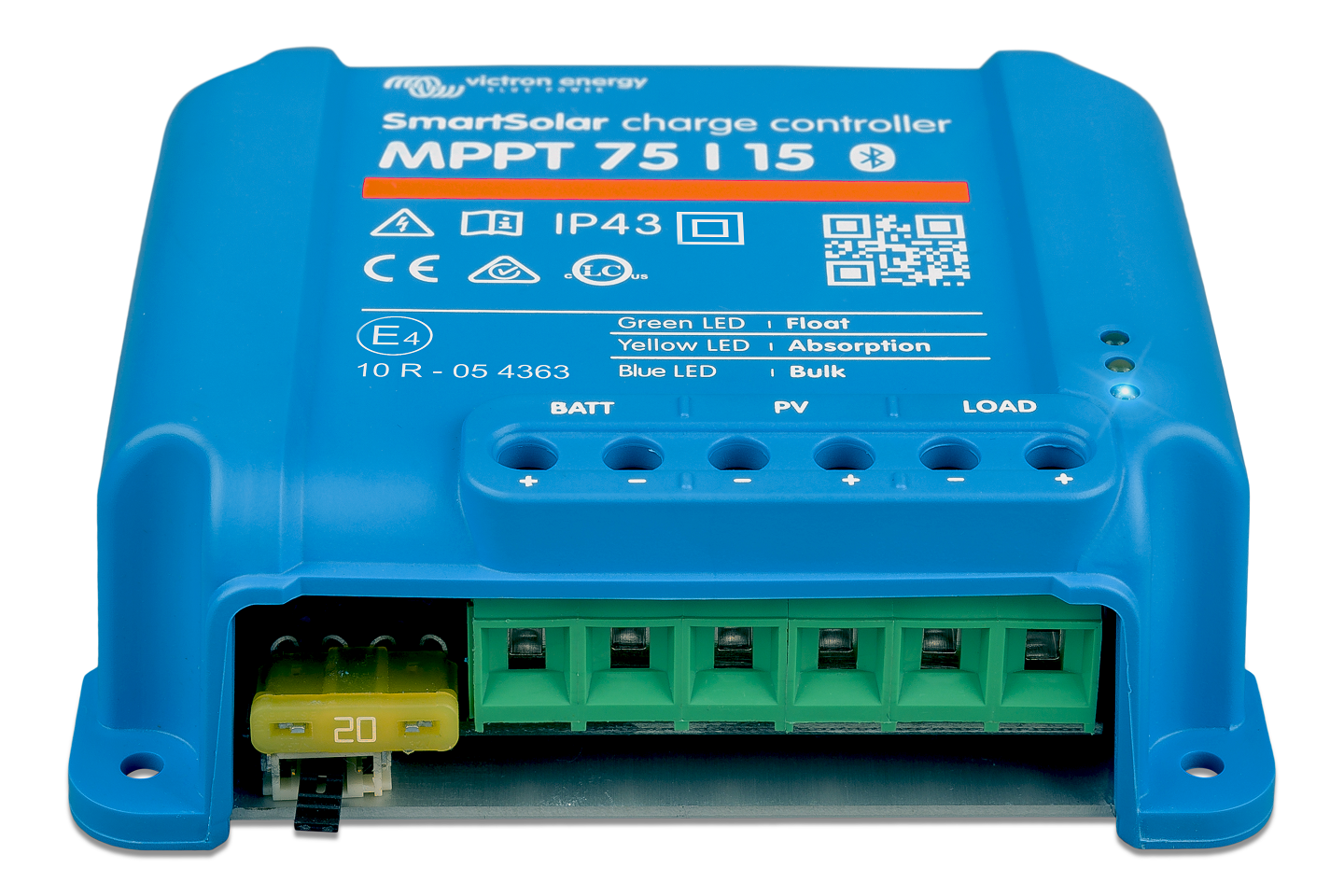

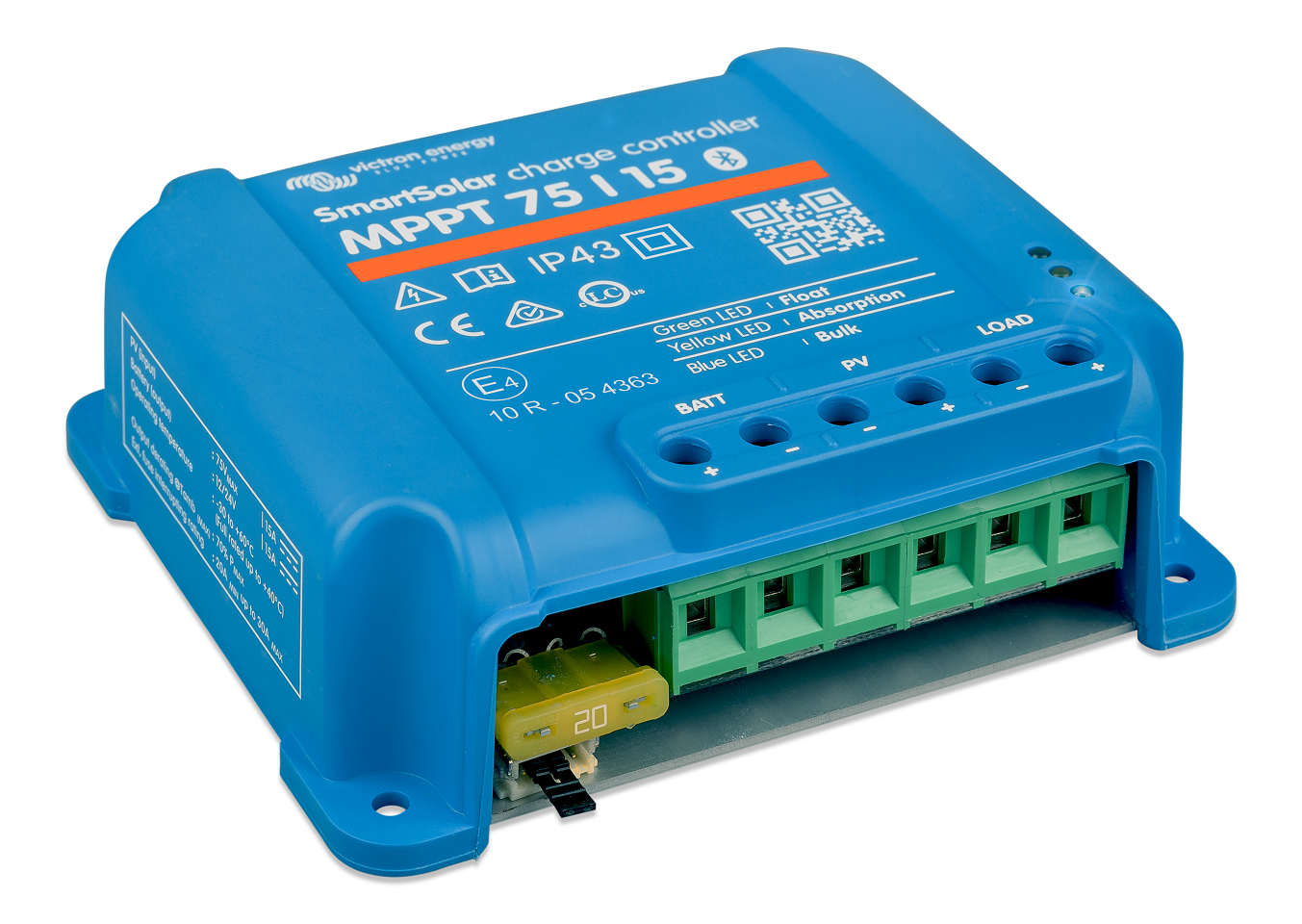

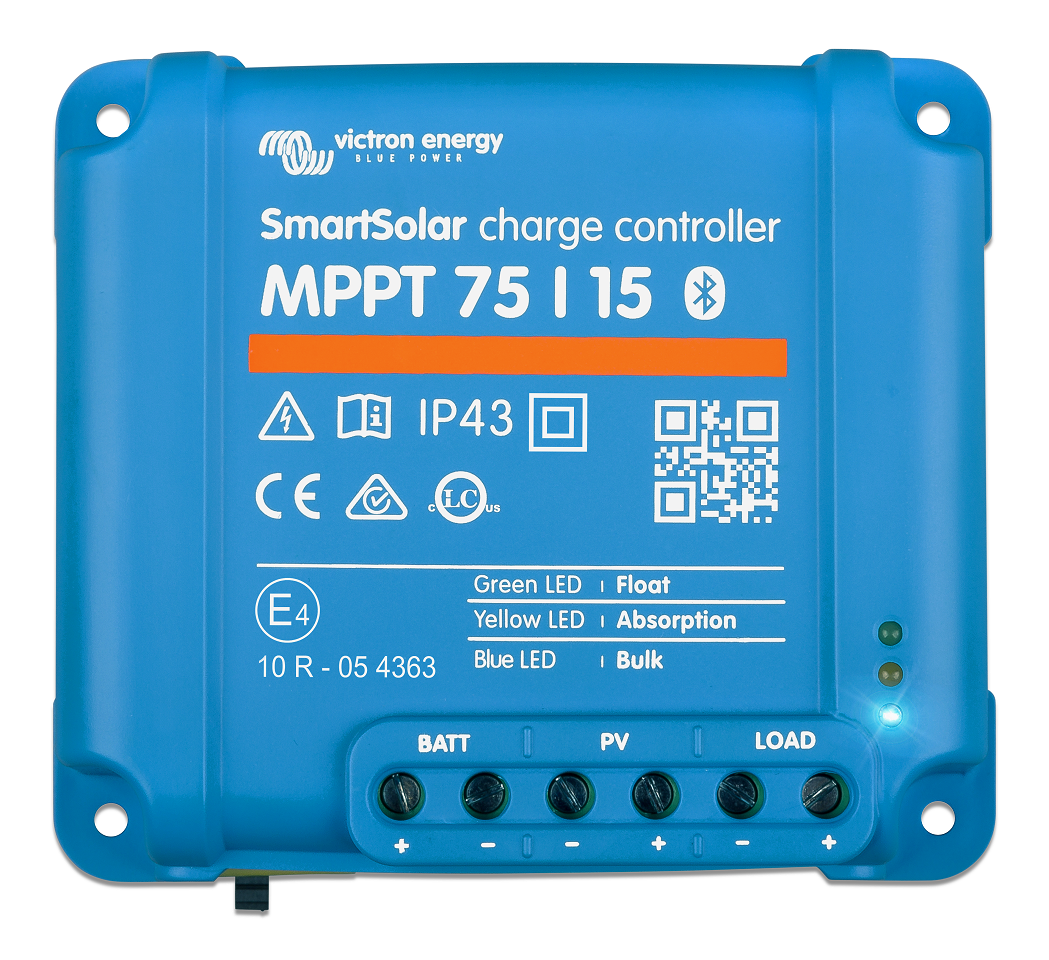

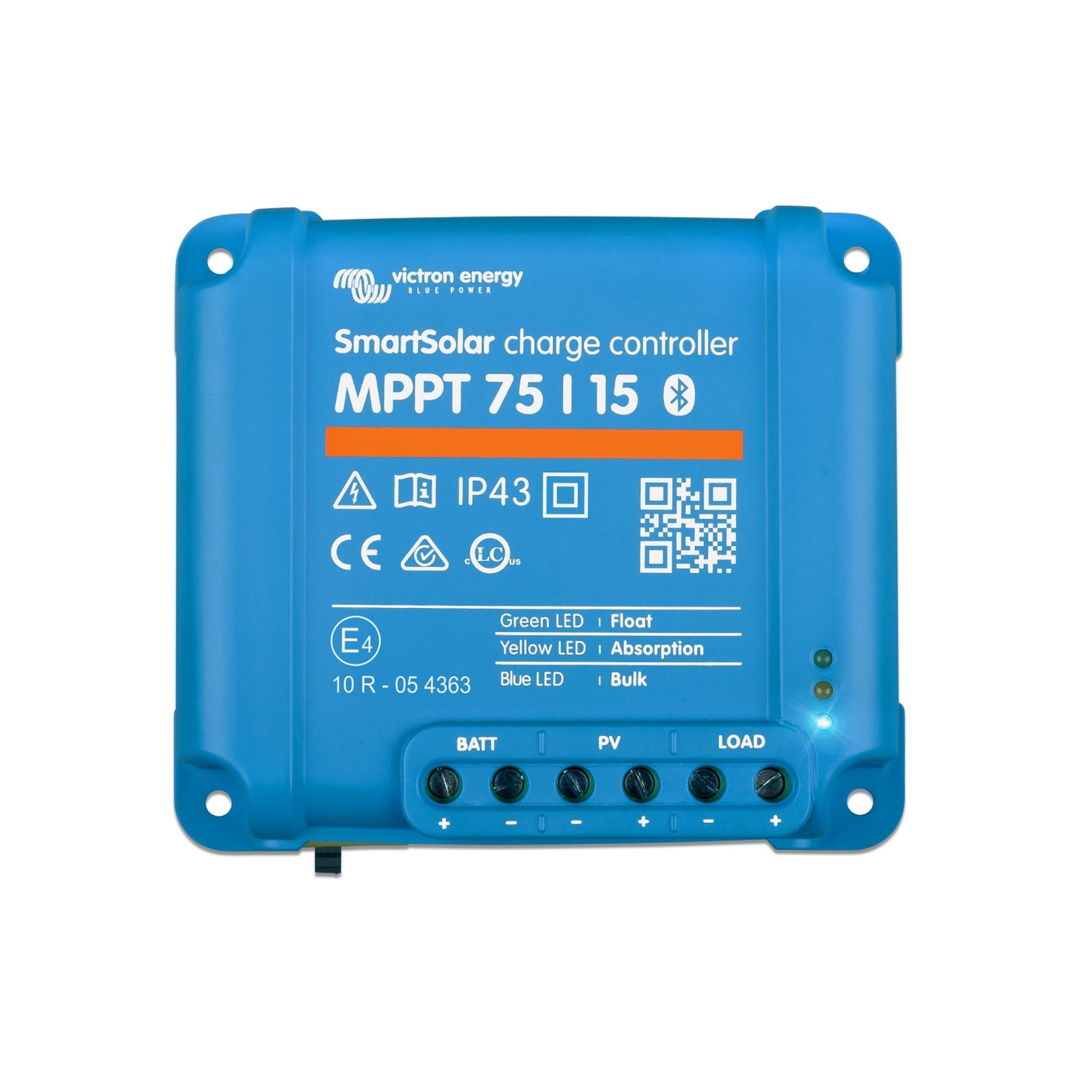

Solar Charge Controller
A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, SmartSolar maximizes this energy-harvest driving it intelligently to achieve the full charge in the shortest possible time. SmartSolar maintains battery health, extending its life.
MPPT: Ultra-fast Maximum Power Point Tracking
By constantly monitoring the voltage and current output of your solar (PV) panels, MPPT technology ensures that every drop of available power is rinsed out of your panels, and harvested for storage. The advantage of this is most noticeable when the sky is partially clouded and light intensity is constantly changing.
Remote Monitoring And Control
Remotely control and monitor the extensive features of your SmartSolar MPPT charger with built-in Bluetooth by pairing it with your smartphone or other devices via VictronConnect. If your installation is connected to the internet Victron Remote Management Portal (VRM) provides access to the full power of your MPPT, anytime, anywhere; both services are free to use. For remote installations - even when there is no internet connection or phone signal nearby - you may be able to monitor your MPPT by Bluetooth-pairing it with a LoRaWAN (long-range wide area network) device, available optionally.
Load Output
The intelligent load output function prevents damage caused by running batteries 'flat'. You can configure the voltage at which SmartSolar disconnects a load - thereby preventing excessive drain on your batteries. And here's the clever bit: SmartSolar will attempt a 100% recharge every day. If it can't during periods of poor weather - it raises the disconnect voltage, daily, until it achieves success. Victron calls this feature BatteryLife because it maintains the health, and extends the life of your battery.
Enclosure:
Colour: Blue (RAL 5012)

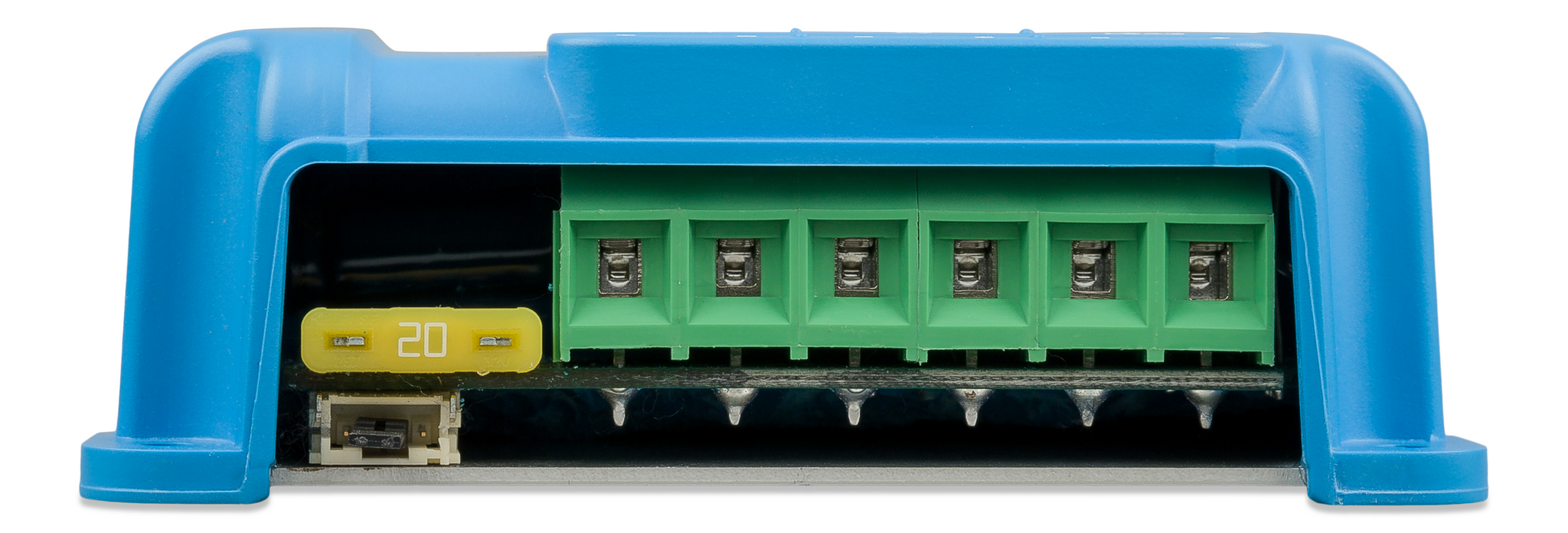

Power terminals: 6mm²/AWG10
Protection category: IP43 (electronic components) IP22 (connection area)
Weight: 0.5kg
Dimensions: 100mm (H) x 113mm (W) x 40mm (D)
